Proel DIVA12A Powered 12″ PA Speaker
TAKING ORDERS!
$699.00
Sold Out - Backorder Available
Key Features:
- 2-way active processed loudspeaker system
- 1” high-definition compression driver with 1.35” VC and titanium diaphragm
- Wide-coverage 90° x 60° constant directivity horn
- 12” long-excursion woofer with 2” voice coil
- High-efficiency 1000 W peak Class D power amplifier with SMPS
- Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
- High-definition DSP with 24-bit converters and FIR filters
- 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
- BLUETOOTH audio interface with STEREO LINK
- Color LCD display for the DSP editing
- SPL MAX: 127 dB
- Frequency response: 50 Hz – 20 kHz
- Lightweight, compact and ultra-durable PP cabinet
- 2 ergonomic handles for effortless transportation

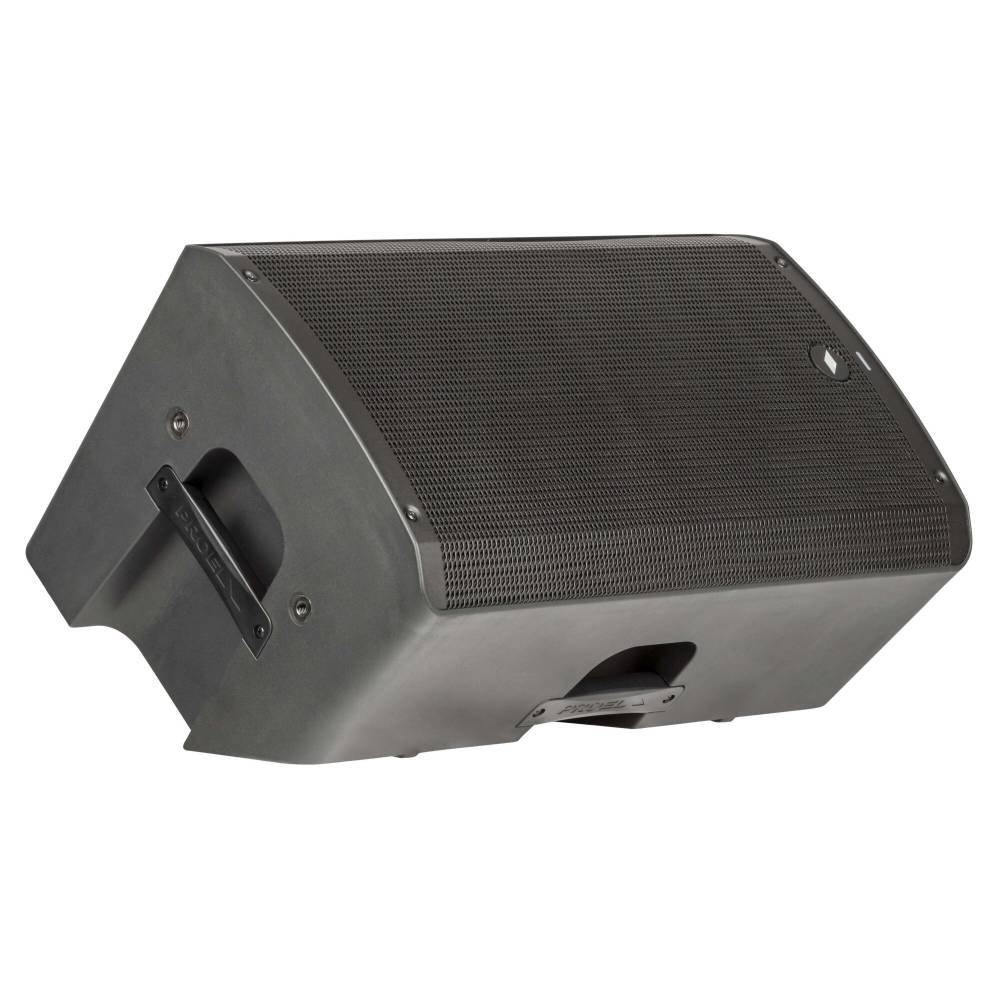

- Slanted shape for the use as a stage monitor
- Four M10 flying points.
Technical Data
| System type | 2-way vented enclosure |
|---|---|

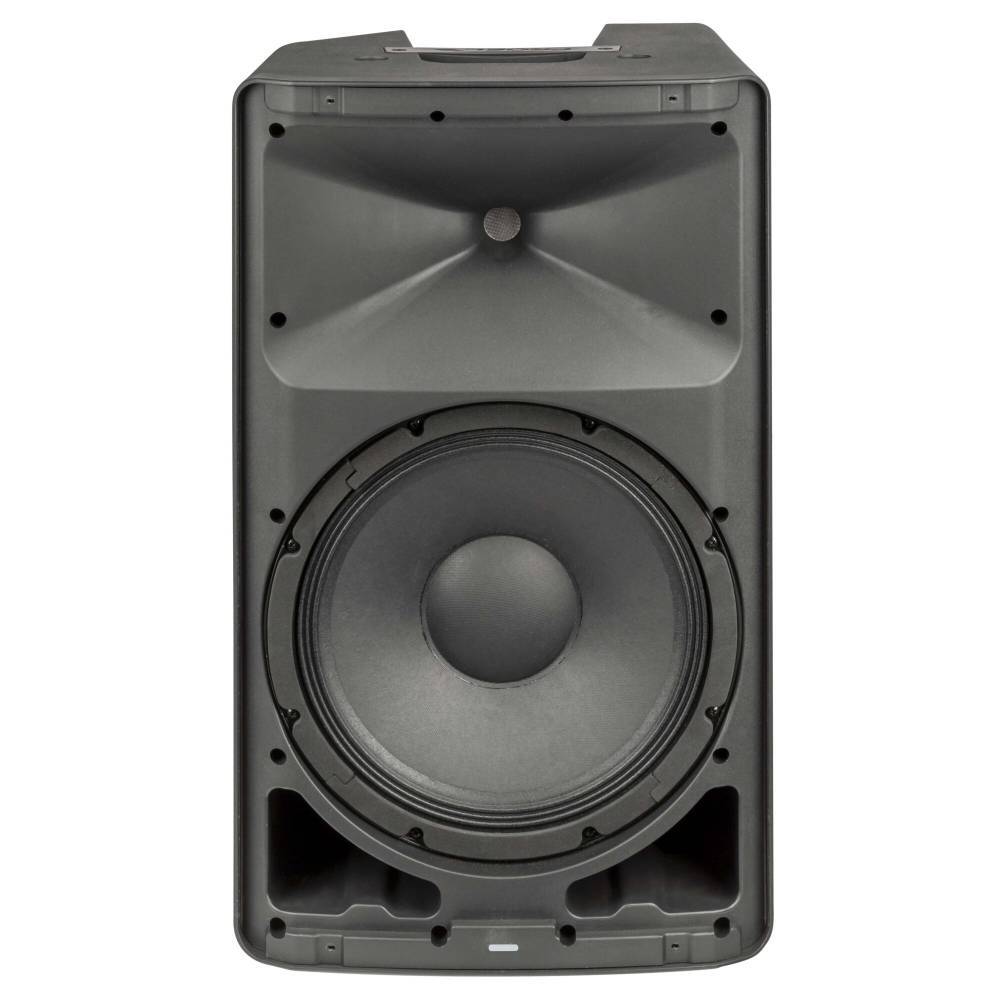

| High Frequency Device | 1’’ compression driver with 1.35″ voice coil and titanium diaphragm |
| Low Frequency Device | 12″ woofer with 2″ VC |
| Angular Coverage | 90° H x 60° V |
| Total Peak Power | 1000 W |
| HF Amplifier Continuous Power | 100 W Class AB |
| LF Amplifier Continuous Power | 400 W Class D |
| Power Supply | SMPS |
| System Processing | DSP |
| Frequency Response | 50 Hz – 20 kHz |
| Max SPL | 127 dB |
| Inputs | 2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS |
| Outputs | 1 x selectable MIX OUT / CH1 LINK (M-XLR) |

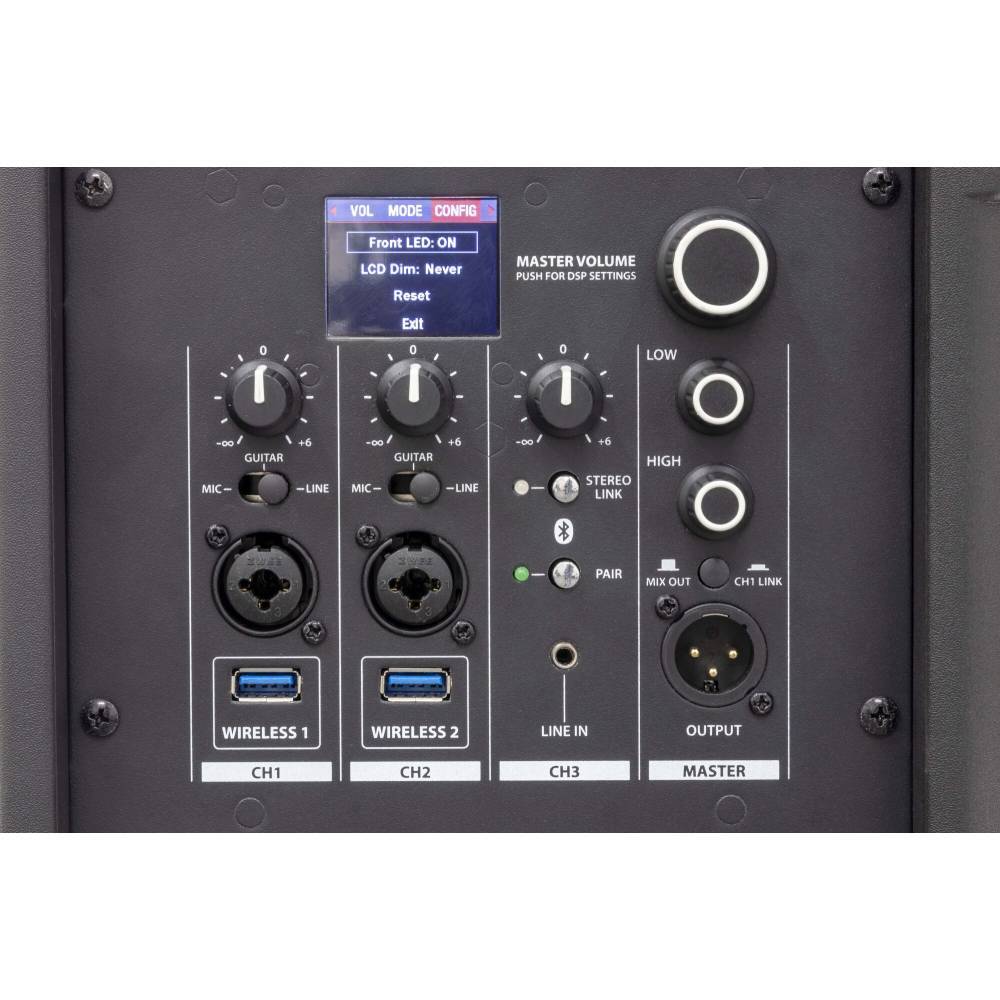

| Controls | CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD |
| Bluetooth | Version 5.0, Audio Streaming, STEREO LINK (TWS) |
| Power Supply | 100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch |
| Rated Consumption* | 300 W *Measured w/ Pink noise at a crest factor of 12dB |
| Floor Monitor Angle | 45° |
| Flying System | 4 x M10 – top/bottom |
| Cabinet Material | Polypropylene |
| Mounting Pole | 1 x bottom |
| Dimensions (W x H x D) | 364 x 617 x 346 mm |
| Weight | 16.0 kg |
(DIVA12)
| SKU | DIVA12 |
| Brand | PROEL |
