Proel HPC210BK Balanced Cable Roll – 100m
SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER
$329.00
In Stock

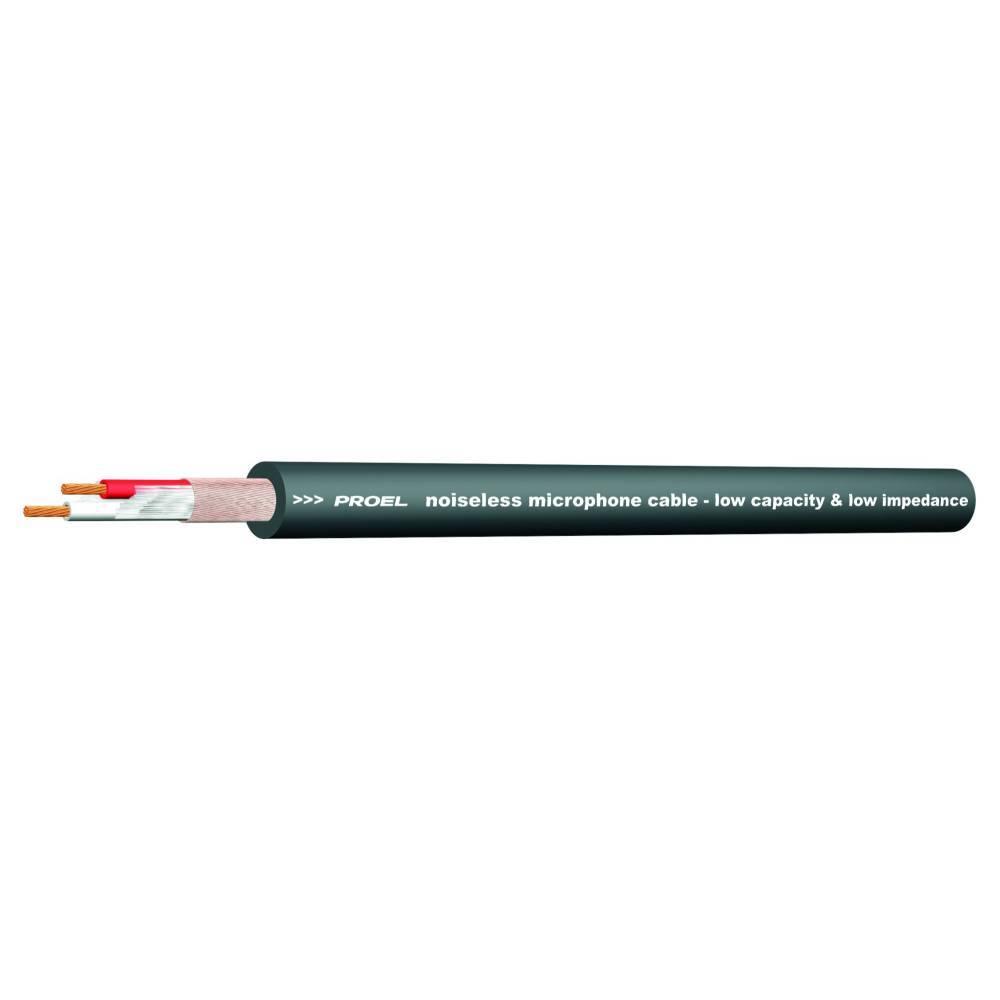

Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket – Dense spiral red copper shield – O.F.C. (Oxygen Free Copper). Black colour.
Technical Data
| Application fields: | Recording studios / Microphone connections |
|---|---|
| Conductors: | Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2) |
| Insulation: | PE (Compact polyethylene) Ø 1.60 mm – RED/WHITE |
| Shield: | Spiral copper 16x5x0.10 mm > 90% |
| Jacket: | Flexible PVC 60 shore Ø 6.50 mm |
| Color: | Black |
| Electrical resistance: | 93 Ohm/Km (conductor) @ 20°C, 20 Ohm/Km (shield) @ 20°C |
| Electrical capacitance: | 46 pF/m (conductor/conductor) @ 1 KHz, 90 pF/m (conductor/shield) @ 1 KHz |
| Velocity of propagation: | 80 % |
| Operating temperature: | -20°C / +70°C |
| Working tension: | < 50 V AC, < 75 V DC |
| Weight: | 46 Kg/Km |
| Minumum bending radius: | 20 x cable section radius |
| Packaging: | 100 m carton reel |
(HPC210BK)
| SKU | HPC210BK |
| Brand | PROEL |
