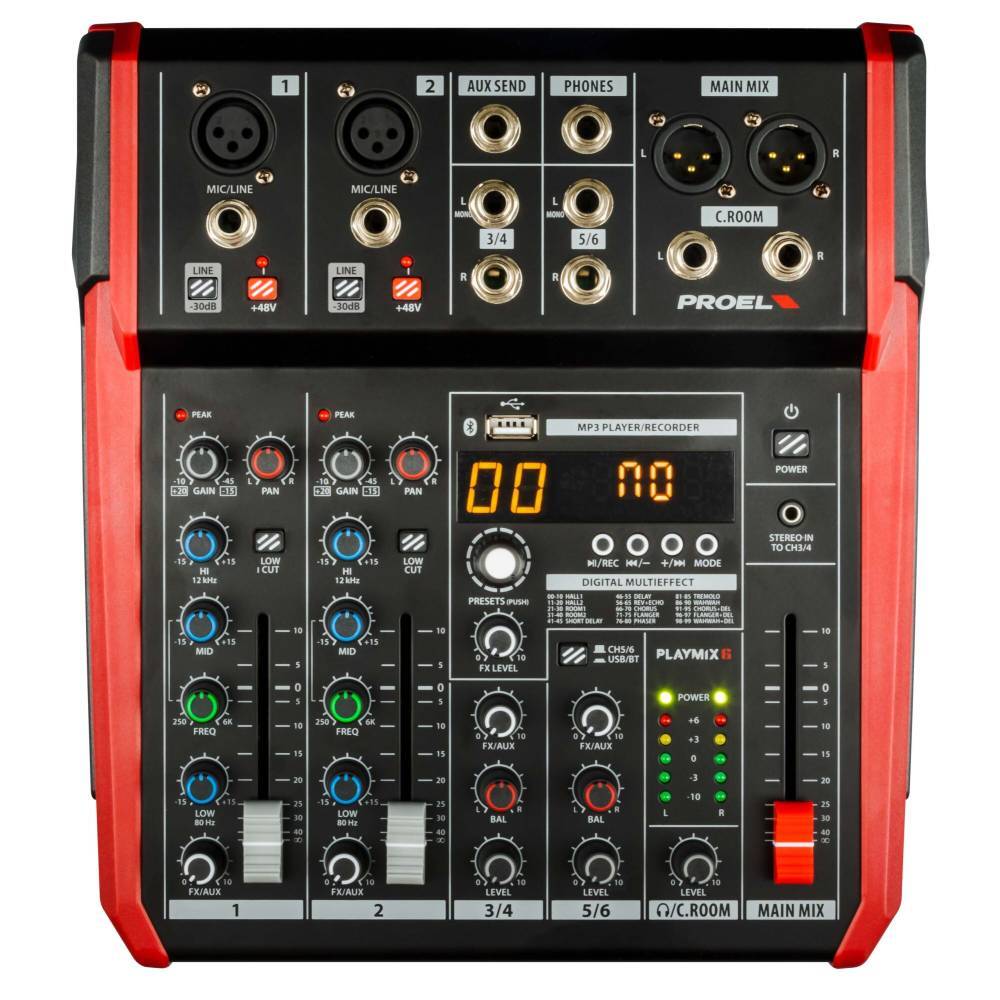

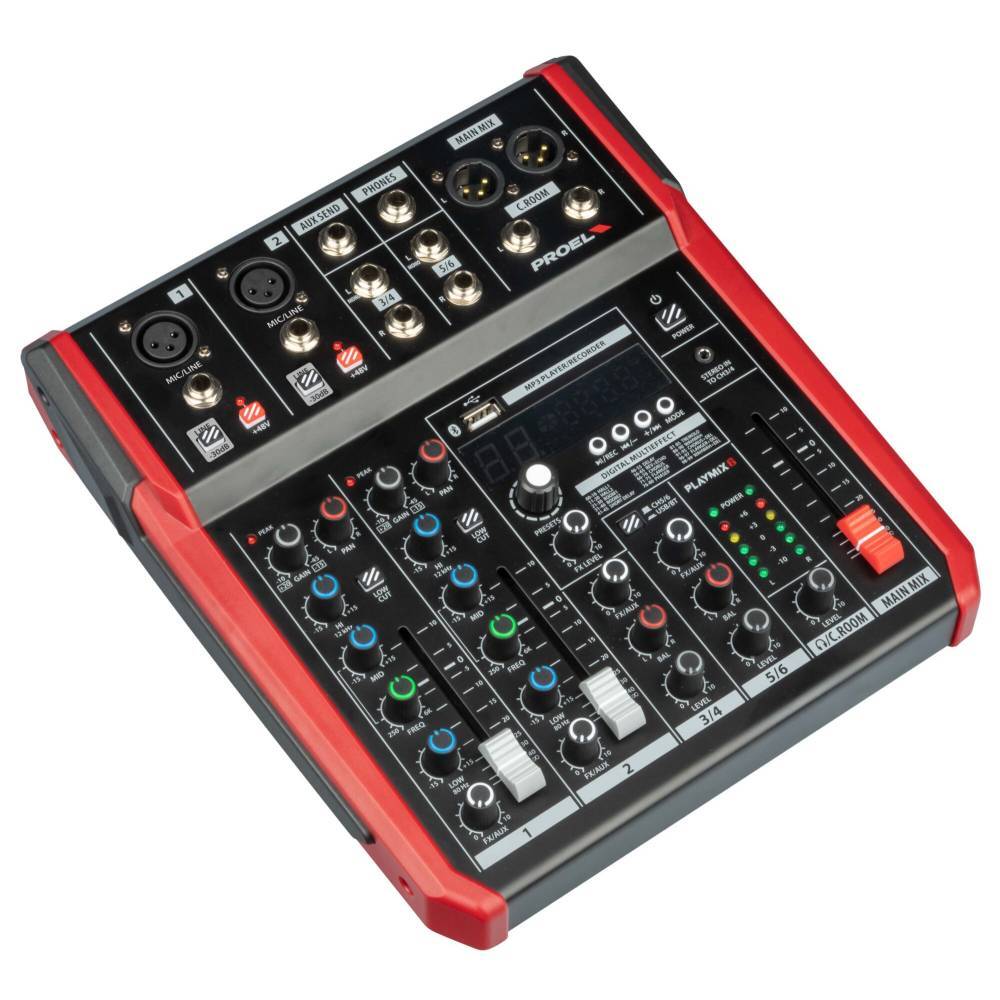

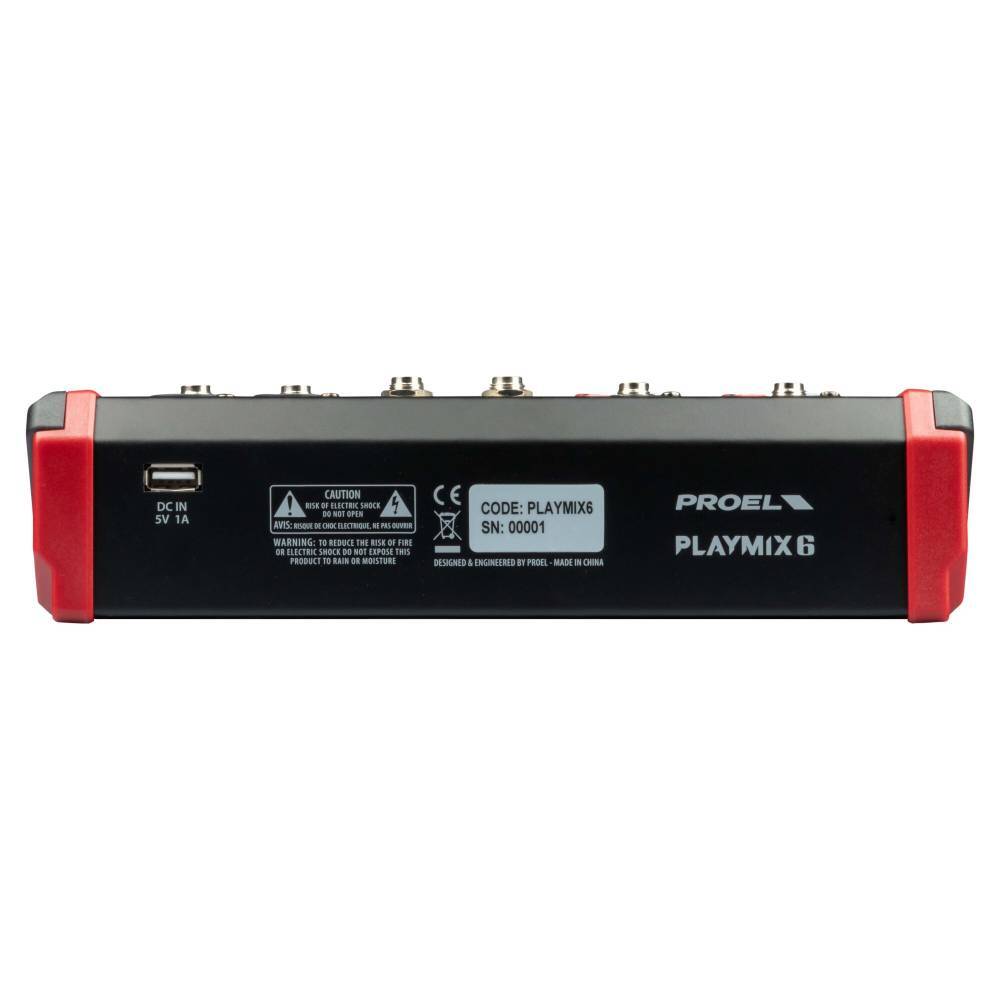

Proel PLAYMIX6 Compact 6-channel mixer with DSP and USB/BT interface
SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER
PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.
PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.
Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.
Technical Data
INPUTS: | 2x Mono MIC/Line 2x Mono Stereo TS/TRS |
---|---|
MONO Mic Input: | -Sensitivity from -10 to -45 dB via Balanced XLR-F -Impedance = 1 Kohm |
MONO Line Input: | -Sensitivity from from +20 to -15 dB Balanced JACK -Impedance = 20 Kohm |
STEREO Line Input: | -Sensitivity from from +12 to -15 dB Balanced JACK -Impedance = 20 Kohm |
LOW CUT: | 80Hz, 6dB/oct. |
EQ: | -HIGH (shelving) ±15 dB @ 12K Hz -MID (peaking) ±12 dB @ 250-6K Hz -LOW (shelving) ±15 dB @ 80 Hz |
MAIN MIX: | nom. out level +4 dBu Unbalanced XLR-M (Left and Right) |
C. ROOM output: | nom. out level +4 dBu Unbalanced JACK (Left and Right) |
SEND output: | nom. out level +4 dBu Unbalanced JACK |
HEADPHONES: | min. impedance 64 ohm Stereo JACK |
BLUETOOTH: | Version 5.0, Audio Streaming |
USB Audio Interface: | Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate Type A |
Effects: | 100 presets |
A/D and D/A converters: | 24 bit |
DSP resolution: | 24 bit |
Controls: | 2-DIGIT display, DIAL, LEVEL |
Maximum level: | all outputs +15 dBu |
Crosstalk: | meas. at 1 KHz > 75 dB |
HUM & Noise: | unweighted < 90 dB |
THD + Noise: | at +4dB, 1kHz < 0.009 % |
Dimensions (WxHxD): | 247 x 274 x 61 mm |
Weight: | 1.80 kg |
Power Supply: | use only supplied AC/DC ADAPTER 5VDC 1A |
Mains Supply Voltage: | 100-240 VAC (±10%) 50/60 Hz |
(PLAYMIX6)
