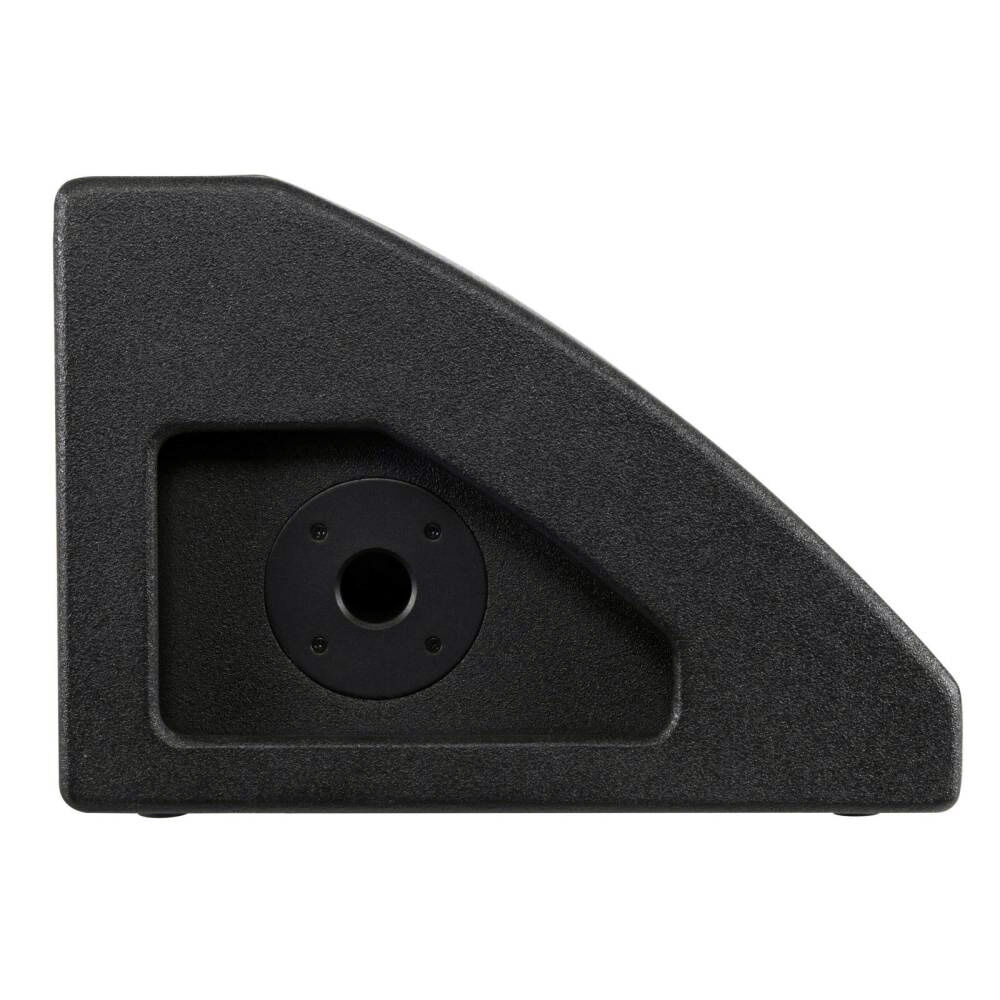

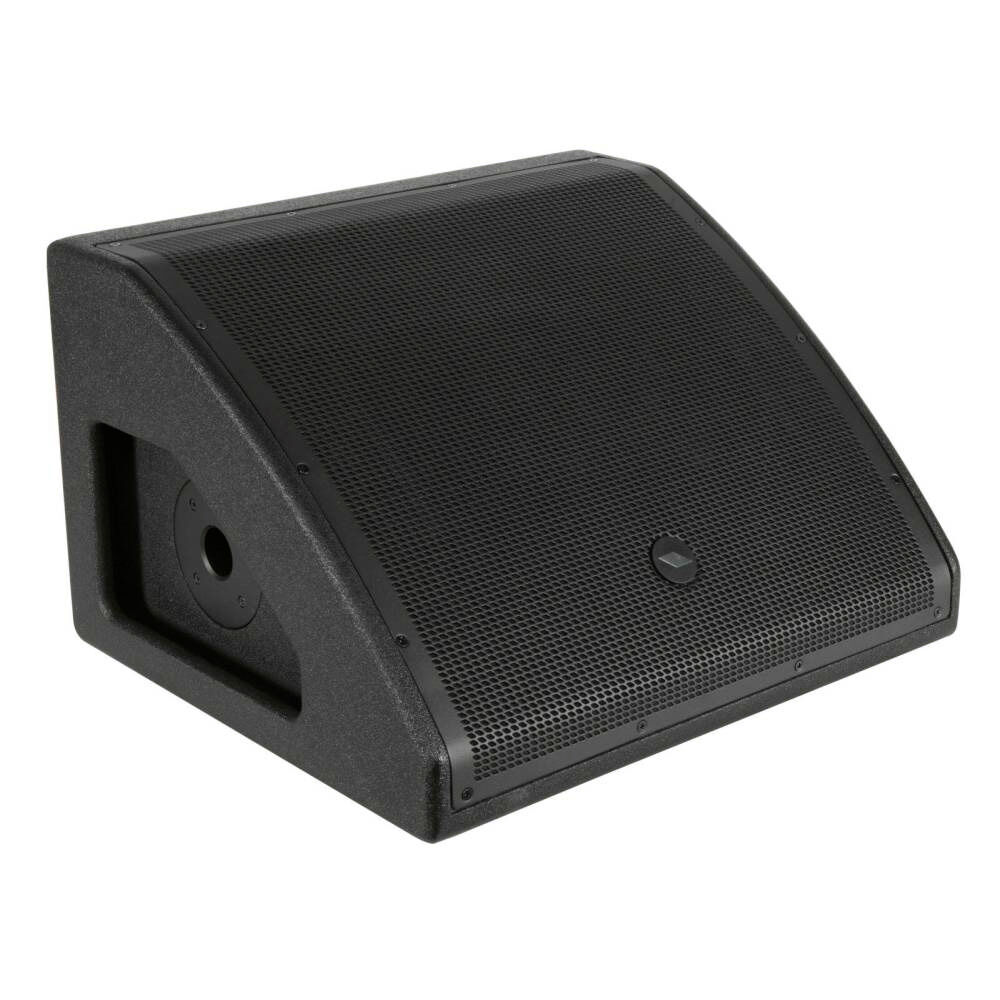

Proel WD12A v2 Active 12″ Stage Monitor 700W
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$899.00
In Stock
Key Features:
- Active 2-way foldback stage monitor
- Wide 80° coverage with impressive feedback rejection
- Coaxial design with a 12″ woofer and 1” compression driver
- Bi-amp amplifier with 350 W total power (700 W peak)
- Integrated dual LIMITER circuit for added protection
- 2 EQ presets for monitor or front-of-house (FOH) applications
- Low-profile, lightweight plywood cabinet with black ultra-durable polyurethane paint
- Reinforced metal grille with dust protection

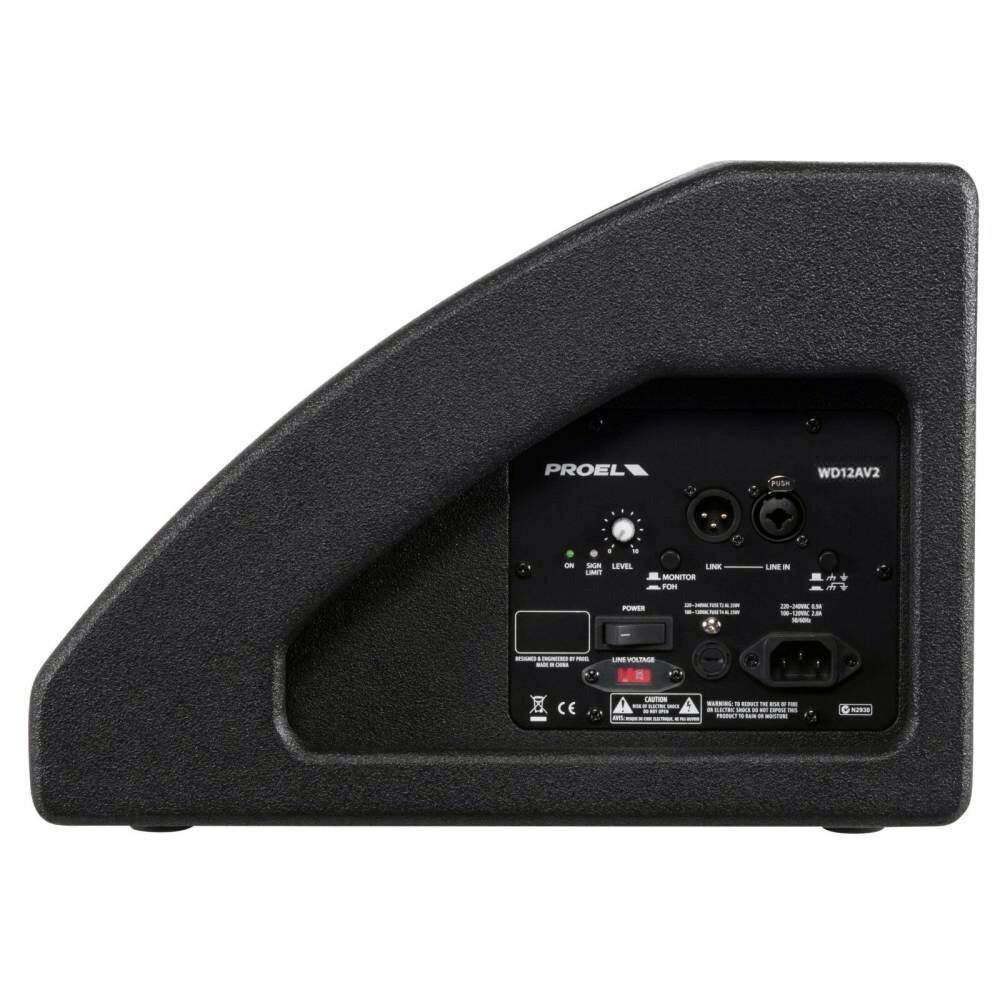

- Recessed connection panel for added protection
- 2 recessed handles for easy transport.
Technical Data
| System type | 2-way coaxial vented stage monitor |
|---|---|
| Low Frequency Device | 12” woofer with 2.5″VC |
| High Frequency Device | 1” compression driver with 1.35″VC |
| Angular Coverage | 80° |
| Frequency response | 50 Hz – 20 kHz |
| Max SPL at 1mt (peak) | 124 dB |
| Amplifier Continuous Power | HF: 50 W CLASS AB, LF: 300W CLASS D with SMPS |
| Input Impedance | 30 kohm balanced, 15 kohm unbalanced |
| Input Sensitivity | 0 dBu |
| Controls | LEVEL, PRESET selector (MONITOR, FOH), GND lift |
| Connectors | INPUT: COMBO (XLR-F/JACK), LINK: XLR-M |
| Power Supply | 230 VAC or 120 VAC – 50/60 Hz |
| Maximum Consumption | 445 W |
| Rated Consumption* | 235 W |
| Construction | Plywood with black anti-scratch polyurethane paint |
| Pole Adapter | 1 x side |
| Handles | 2 x sides |
| Monitor taper | 36° |
| Weight | 15 kg |
| Dimensions (W x H x D) | 510 x 310 x 440 mm |
(PROEL-WD12A-V2)
| SKU | PROEL-WD12A-V2 |
| Brand | PROEL |
