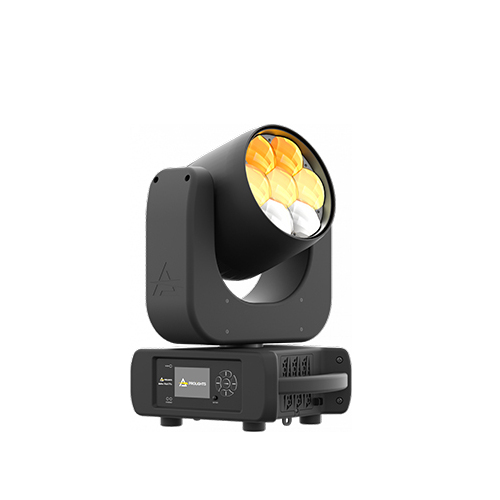

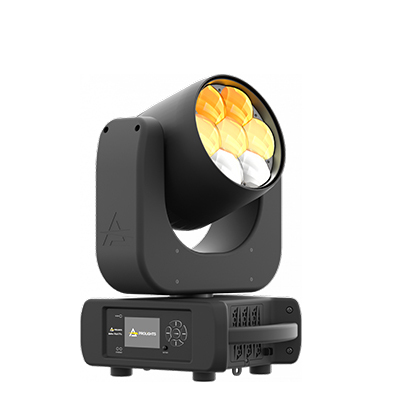

PROLIGHTS Astra Wash 7Pix

Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires. Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light. Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Product Features:

• Compact form factor and fast movements
• Zoom from 4° to 56° with high optical efficiency
• Pixel control, precise white CCT and multiple FXs and colour features

LIGHT SOURCE

• Source: 7x40W RGBW Osram Ostar LEDs
• Luminous flux: (4°) 2’013 lm – (56°) 3’543lm @full
• Lux: (4°) 18’360 lx – (56°) 364lx @5 m full
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 4° – 56° motorised linear zoom
• Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control, + / – green correction, tungsten emulation
• White presets: 2.800 K ~ 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan angle: 540°
• Tilt angle: 233°
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with high-resistance polycarbonate cover
• Body colour: RAL 9004

CONTROL

• Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
• DMX channels: main personality 24 / 27 / 39channel
• Pixel control: OFF, ring and pixel2pixel selectable options
• Wireless Control: included, Wireless Solution transceiver
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 – 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V – 50/60Hz
• Max power consumption: 225W
• Output (at 230V): up to 13 units on a single power line
• Power factor: > 0,93

PHYSICAL

• IP rating: 20
• Cooling: forced air with fan
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Neutrik Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 279x391x205mm / 10.98”x15.39”x8.07”
• Weight: 8,1kg / 17.86lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ASTRAWASH7PIX
• 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
• 1 x OS24
• User Manual.
• AstraWash 7 Pix IP $7313inc
