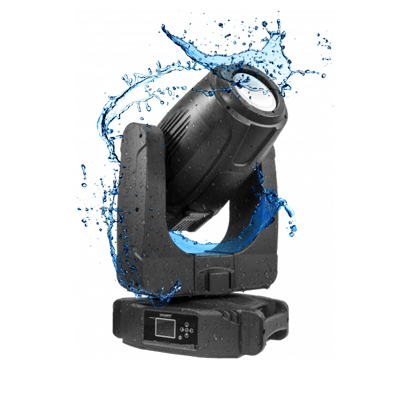

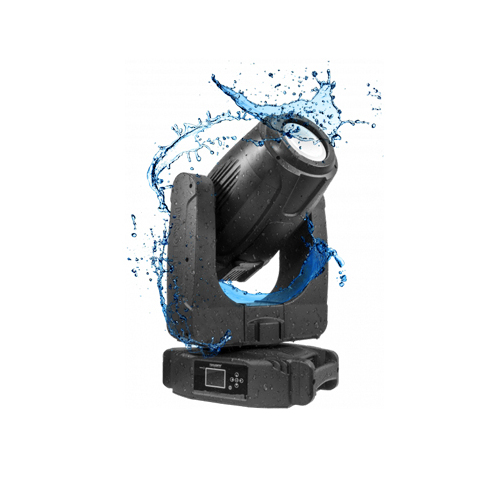

PROLIGHTS PANORAMA IP65 SPOT

Designed to make a statement, the PANORAMA IP65 SPOT can truly make an event stand out or fill a large outdoor space with it’s 1:10 Zoom range.

Features:

• 420W high power LED with 7000K CT, and 5-50° linear zoom
• IP rated for outdoor events and temporary installations
• Extensive range of effects including linear CMY and CTO mixing, colour wheel, rotating gobo wheel, static gobo wheel, circular prisms, linear frost and focus.

LIGHT SOURCE

-Source: 420W high power white LED

-CT: 7000K

-Lux: (5°) 21,362 lux @5m

-Lux: (50°) 1173 lux @5m Full

-Source life expectancy:>20,00 h

OPTICS

-Beam angle: 5°-50° Motorized linear zoom

-Lens diameter: 120mm

-Lens type:HD anti-reflection lenses with achromatic coatinghigh-quality glass lens optics

-Focus: motorised with auto-focus

COLOUR SYSTEM

-Colour mixing: Linear CMY

-CTC: linear CTO correction 2700~6000K

-Colour wheel: 8 dichroic filters + open

DYNAMIC EFFECTS

-Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

-Fixed gobos: 6 fixed gobos + open, interchangeable

-Gobo size: gobo Ø 27 mm – img vØ 21 mm – 1.1 mm

-FX generator: prisms overlap for spectacular aerial effects

-Circular prism: 3facet with bi-directional rotation, indexing

-Iris: 5-100% motorised linear iris

-Frost: linear 0-100% frost filter

BODY

-Pan angle: 540° – 630°

-Tilt angle: 230°

-Pan/Tilt resolution: 8/16 bit

-Feedback: automatic repositioning after accidental movement

-Body: aluminium structure with hi-resistance polycarbonate cover

-Body colour: black

CONTROL

-Protocols: DMX512, RDM, Art-Net,W-DMX

-DMX channels: 19 / 21/ 22 / 28 / 29 / 36 channel

-W-DMX: included, wireless solution receiver

-RDM: RDM ready for fixture remote monitor and settings

-Display: LCD high resolution colour display with autoflip

-Firmware upgrade: via menu with internal memory or via USB-DMX interface (UPBOX2) not included

-Hibernation: power safe mode when lost DMX

ELECTRONICS

-Dimmer: linear 0~100% mechanical dimmer

-Strobe / shutter: 1~28 flash(s), mechanical

-Operating temperature: -10° ~ +45°

ELECTRICAL

-Power supply: 100-240V – 50/60Hz

-Power consumption (at 230V): 492W

-Power consumption (at 120V): 501W

PHYSICAL

-Cooling: forced air with low noise fan

-Suspension and fixing: any position with quick-lock omega brackets

-Signal connection: Amphenol XLR 5p IN/OUT connectors

-Data connection: Art-Net RJ45 IN/OUT

-Power connection: Seetronic powerKon waterproof IN/OUT connectors

-IP rating: 65 for outdoor events

-Dimensions (WxHxD): 420x740x474mm

-Weight: 38kg
