RCF ART 912A – PROFESSIONAL 2100W ACTIVE 12" SPEAKER

ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 912-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.



• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 50-20000 Hz linear frequency response
• 1.75" Compression Driver
• 12" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management.

FREQUENCY RESPONSE:

50 Hz ÷ 20000 Hz



MAX SPL @ 1M:

130 dB



HORIZONTAL COVERAGE ANGLE:

100°



VERTICAL COVERAGE ANGLE:

60°

Transducers



COMPRESSION DRIVER:

1 x 1.0'', 1.75'' v.c



WOOFER:

12'', 2.5'' v.c

Input/Output section



INPUT SIGNAL:

bal/unbal



INPUT CONNECTORS:

XLR, Jack



OUTPUT CONNECTORS:

XLR



INPUT SENSITIVITY:

-2 dBu/+4 dBu

Processor section



CROSSOVER FREQUENCIES:

1800 Hz



PROTECTIONS:

Thermal, RMS



LIMITER:

Soft Limiter

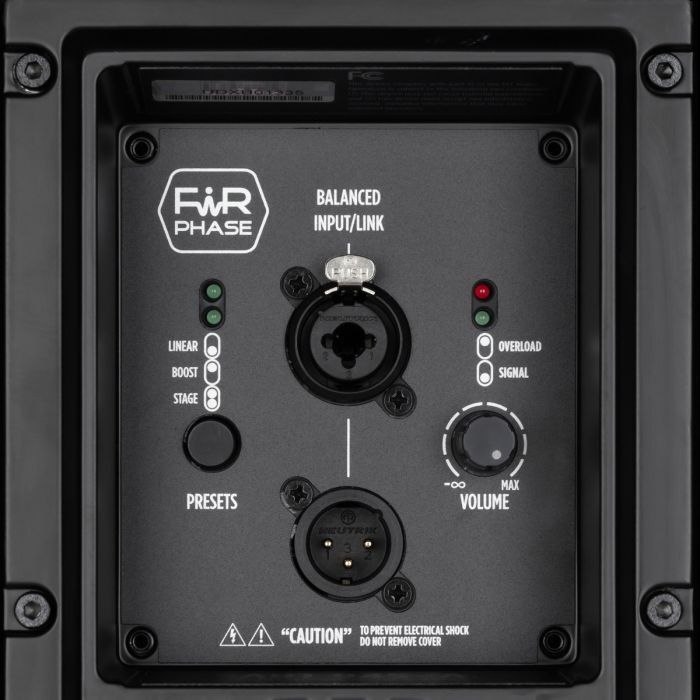

CONTROLS:

Linear, Boost, Stage, Volume

Power section



TOTAL POWER:

2100 W Peak



HIGH FREQUENCIES:

700 W Peak



LOW FREQUENCIES:

1400 W Peak



COOLING:

Convection



CONNECTIONS:

VDE

Standard compliance



CE MARKING:

Yes

Physical specifications



CABINET/CASE MATERIAL:

PP Composite



HARDWARE:

1 x M10 Top, 1 x M10 each side



HANDLES:

1 Top , 1 each side



POLE MOUNT/CAP:

Yes



GRILLE:

Steel



COLOR:

Black

Size



HEIGHT:

642 mm / 25.28 inches



WIDTH:

370 mm / 14.57 inches



DEPTH:

363 mm / 14.29 inches



WEIGHT:

19 kg / 41.89 lbs

Shipping informations



PACKAGE HEIGHT:

685 mm / 26.97 inches



PACKAGE WIDTH:

430 mm / 16.93 inches



PACKAGE DEPTH:

423 mm / 16.65 inches



PACKAGE WEIGHT:

21.2 kg / 46.74 lbs
