FEATURES

• Built-in 6-channel Digital Mixer
• Advanced User Interface w/ touch panel and remote control

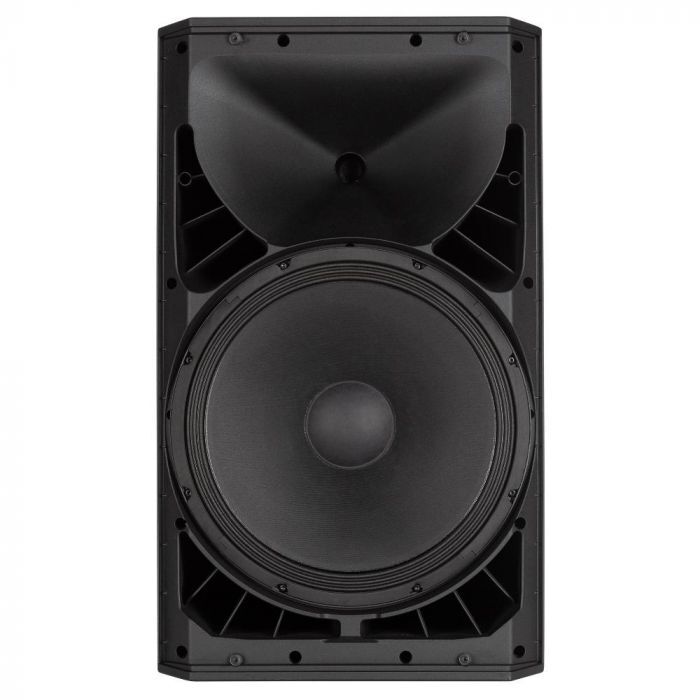

• 1.75" Compression Driver and 15" Woofer
• Up to 131 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• Dual combo preamp with 48V Power and Mini-jack stereo line input
• Bluetooth® stereo audio input, with dual speaker pairing option
• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

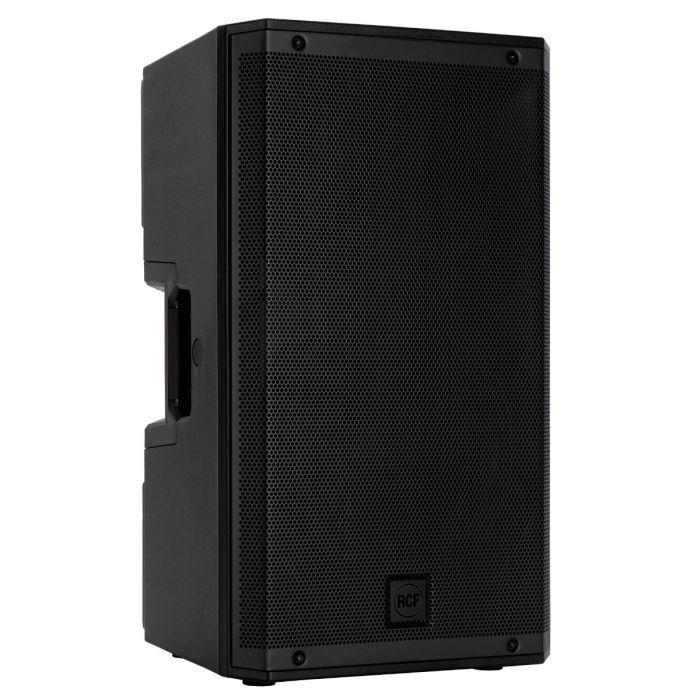

ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

Frequency Response:

45 Hz ÷ 20000 Hz

Max SPL @ 1m:

131 dB

Horizontal coverage angle:

100°

Vertical coverage angle:

60°

TRANSDUCERS

Compression Driver:

1 x 1.0'', 1.75'' v.c

Woofer:

15'', 2.5'' v.c

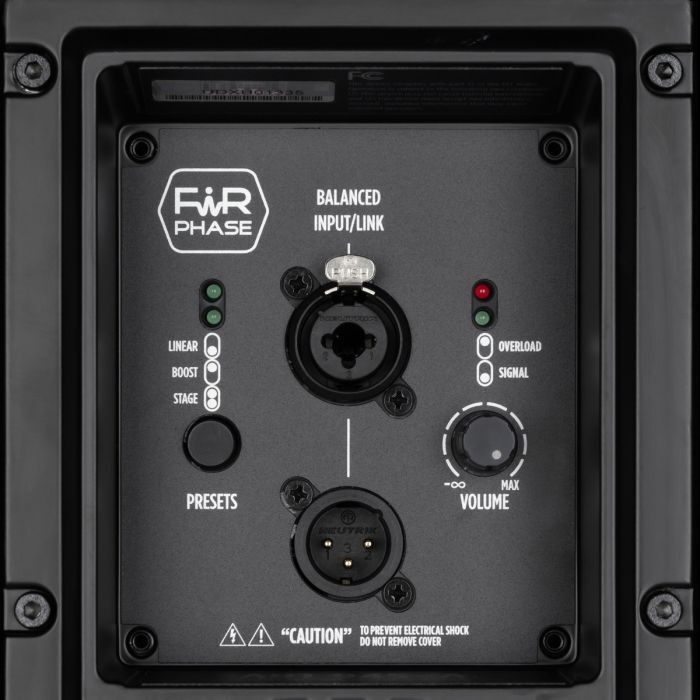

INPUT/OUTPUT SECTION

Input signal:

bal/unbal

Input connectors:

Combo XLR/Jack

Output connectors:

XLR

PROCESSOR SECTION

Crossover Frequencies:

1600Hz

Protections:

Thermal, RMS

Limiter:

Soft Limiter

Controls:

Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

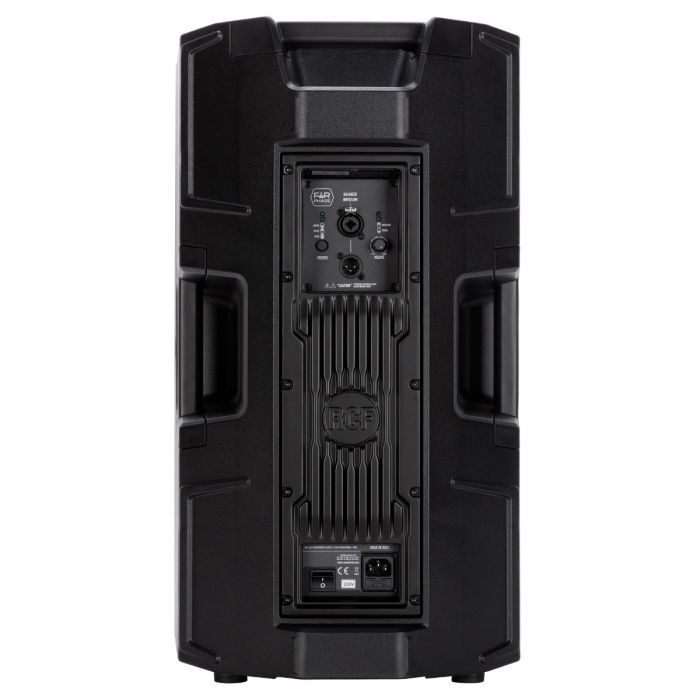

POWER SECTION

Total Power:

2100 W Peak, 1050 W RMS

High frequencies:

700 W Peak, 350 W RMS

Low frequencies:

1400 W Peak, 700 W RMS

Cooling:

Convection

Connections:

VDE

ELECTRONIC SPECIFICATIONS

Frequency Response:

20 Hz ÷ 20 Hz

THD+N, 20dB gain, 0dBu out

0.005% A-Weighted

PROCESSING

Processing Channels:

6

Signal Processing:

24 Bit

A/D-D/A conversion:

32 Bit @ 48.0 kHz

Dynamic range:

110

INPUTS

Mic:

2

Remote Controlled Storable Gain:

Yes

Gain Range:

0 dB ÷ 42 dB

Input Noise Level:

-114 dBu A-Weighted

Mic Inputs Impedance:

6 kohm

Low Cut:

20 Hz ÷ 400 Hz

Phantom Power +48V:

Yes

Mono Line:

2

Gain Selection:

0 dB ÷ 22 dB

Line Input Impedance:

21 kohm

A/D Dynamic range:

114 dB

Stereo Line:

1

Gain Selection:

0 dB ÷ 10 dB

Stereo Line Input Impedance (kOhm)

13 kohm

OUTPUTS

Main MIX:

1

OUTPUTS SPECIFICATIONS

Main Out Impedance:

150 ohm

Main Out Level:

22 dBu

D/A Dynamic Range:

114 dB

COMPRESSORS

RCF Compressors:

Compressors on MIC/LINE CH1 & CH2 inputs.

EQ

Input Channels EQ:

2 Shelving 1

Description:

3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,

INTERNAL EFFECTS

Send Effects:

1

MASTERING PROCESSORS

Main OUT type:

MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.

STANDARD COMPLIANCE

Safety agency:

CE compliant

PHYSICAL SPECIFICATIONS

Cabinet/Case Material:

PP Composite

Hardware:

1 x M10 top, 1 x M10 each side

Handles:

1 top, 1 each side

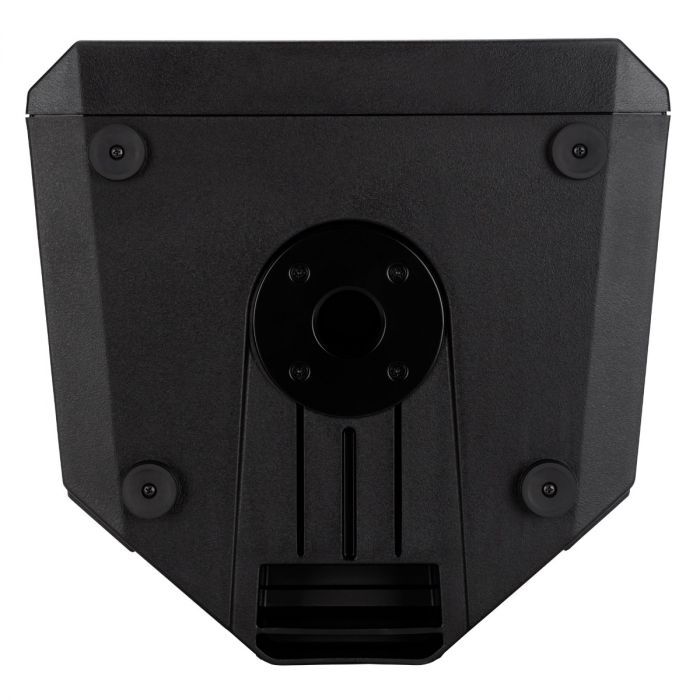

Pole mount/Cap:

Yes

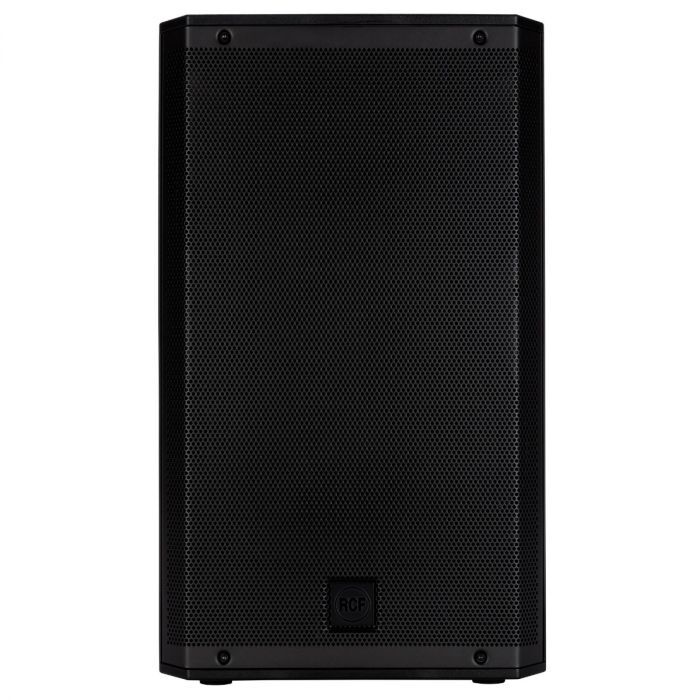

Grille:

Steel

Color:

Black

SIZE

Height:

717 mm / 28.23 inches

Width:

415 mm / 16.34 inches

Depth:

410 mm / 16.14 inches

Weight:

21.8 kg / 48.06 lbs

SHIPPING INFORMATION

Package Height:

760 mm / 29.92 inches

Package Width:

470 mm / 18.5 inches

Package Depth:

475 mm / 18.7 inches

Package Weight:

24 kg / 52.91 lbs
