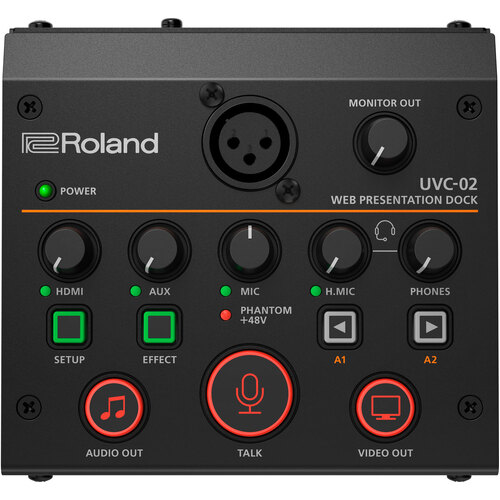

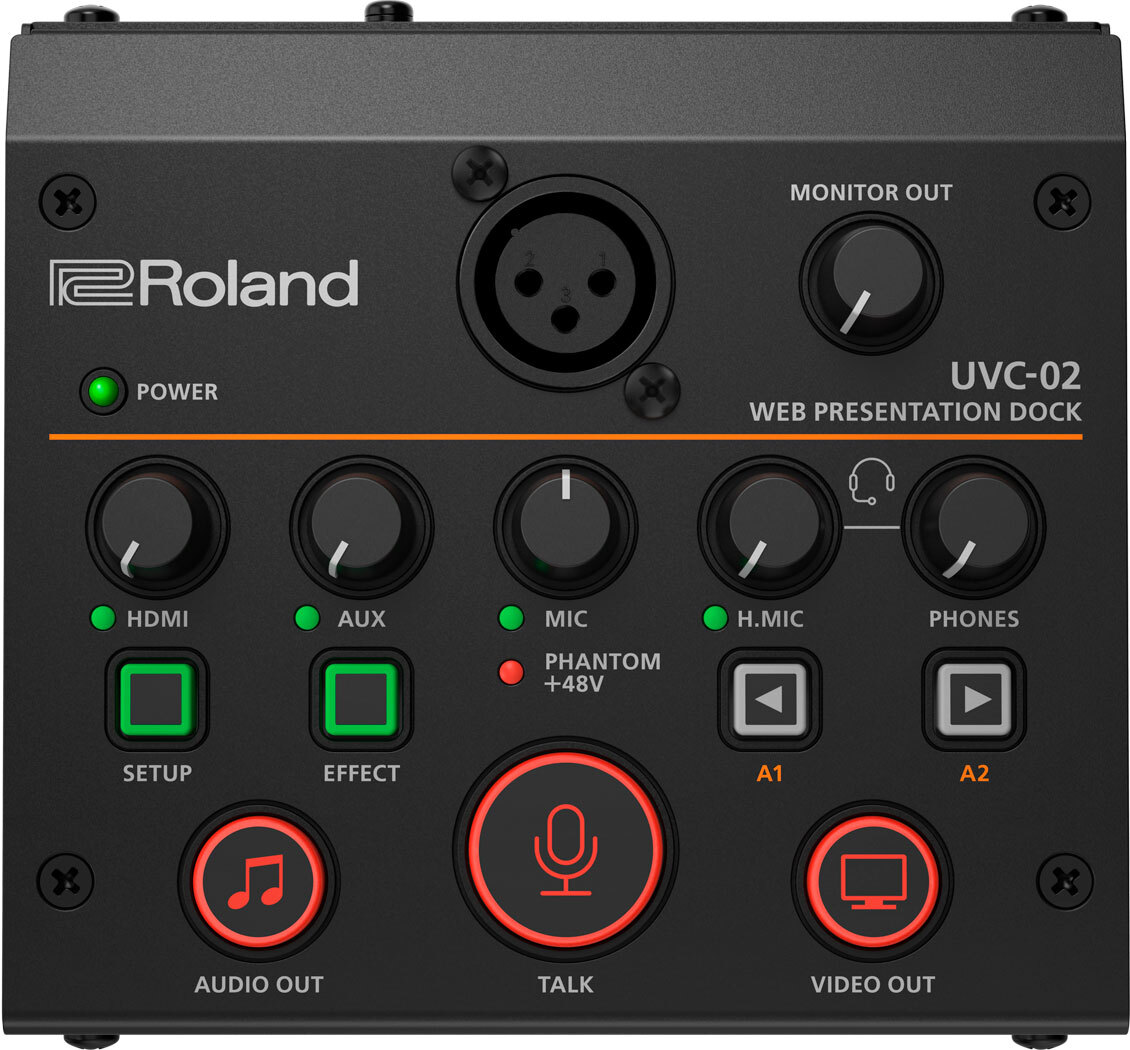

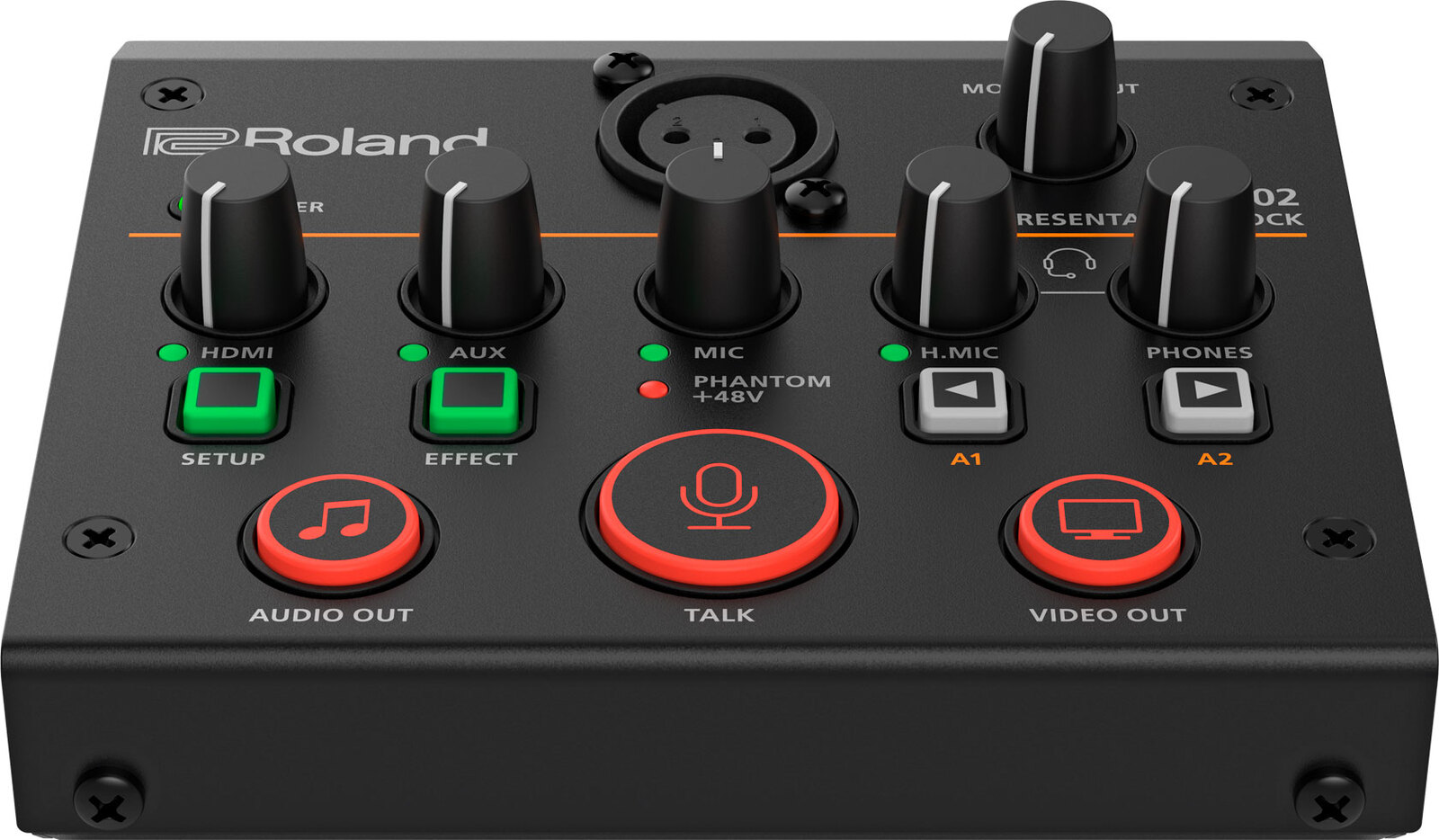

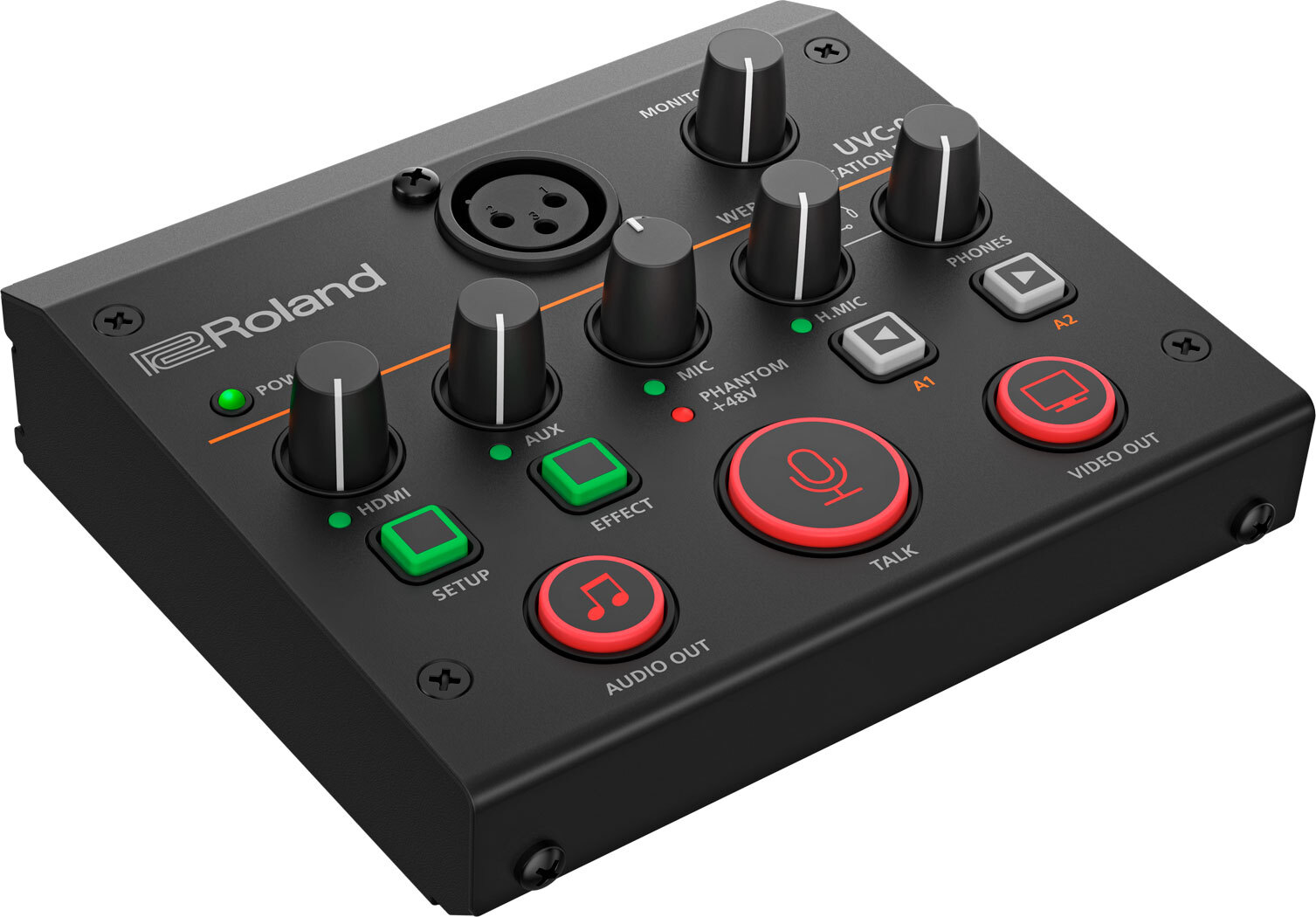

ROLAND UVC-02 WEB PRESENTATION DOCK

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Input Connector: HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported
Input Formats: 480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
Output Connectors: USB STREAM : USB 3.0 Type-B
USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps.
AUDIO
Audio Processing: Sample Rate 48 kHz, 24 bits

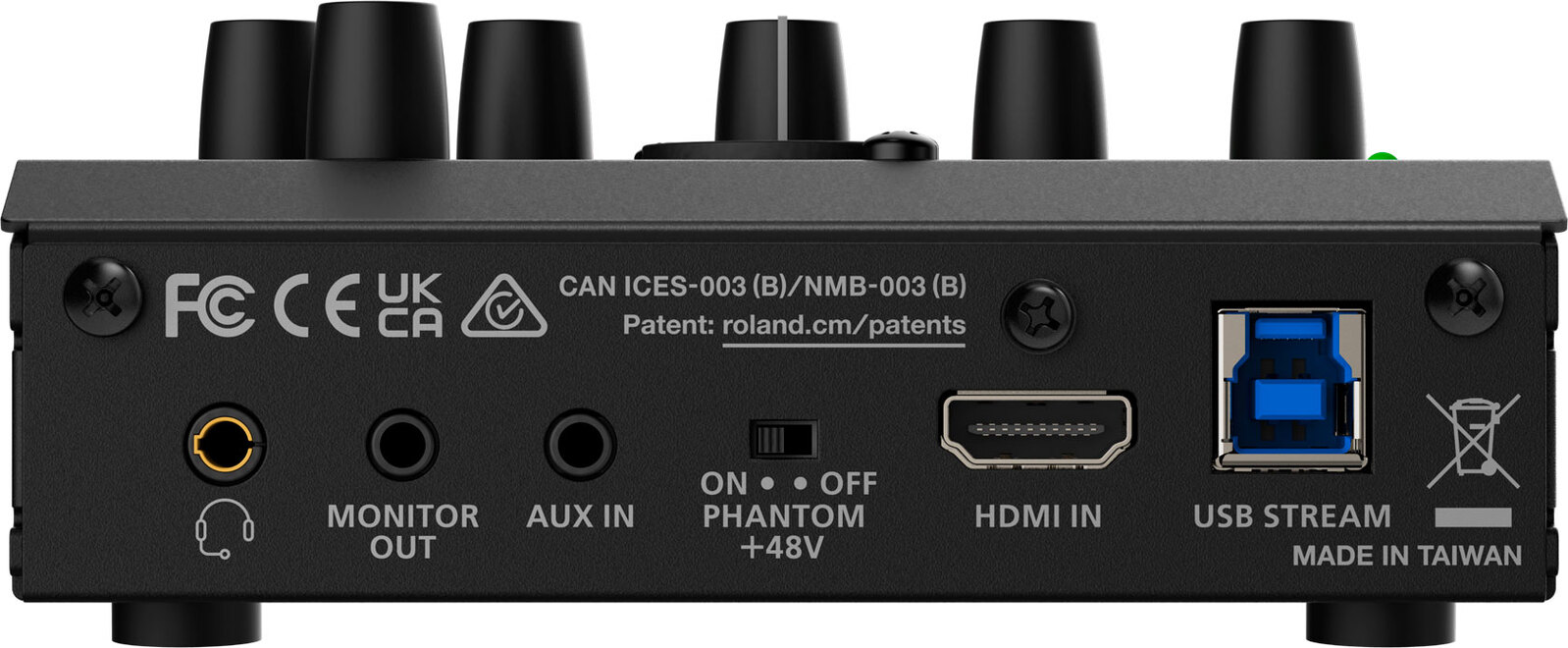

Analog Connectors: MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN : Stereo miniature phone type
MONITOR OUT : Stereo miniature phone type
Digital Connectors: HDMI IN : HDMI Type A
USB STREAM : USB 3.0 Type-B
Nominal Input Level: MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)
HEADSET : -20 dBu (Maximum input level : -2 dBu)
AUX IN : -10 dBu (Maximum input level : +8 dBu)
Nominal Output Level: MONITOR OUT : -10 dBu
HEADSET : 9 mW + 9 mW (32 ohms load)
Input Impedance: MIC IN : 5.8 k ohms
AUX IN : 10 k ohms
HEADSET : 1 k ohms
Output Impedance: MONITOR OUT : 1 k ohms
HEADSET : 22 ohms
Digital Audio Format: HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo
Audio Effects: Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
Audio File Player: Number of tracks : 2
Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
Maximum Time : 5 seconds / track
OTHERS
Other Functions: MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control
Power Supply: Supplied from the computer via USB
Current Draw: 900 mA (4.5 W)
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 124 (W) x 117 (D) x 52 (H) mm
4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches
Weight (excluding cables): 460 g
1 lb 0.3 oz
Accessories: Leaflet "Read Me First"
USB 3.0 Cable

(ROLUVC-02)

SKU	ROLUVC-02
Brand	ROLAND
Shipping Weight	0.8000kg
Shipping Width	0.150m
Shipping Height	0.100m
Shipping Length	0.150m
Shipping Cubic	0.002250000m3
