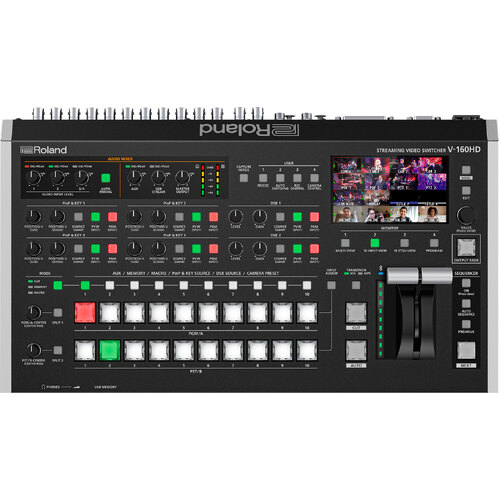

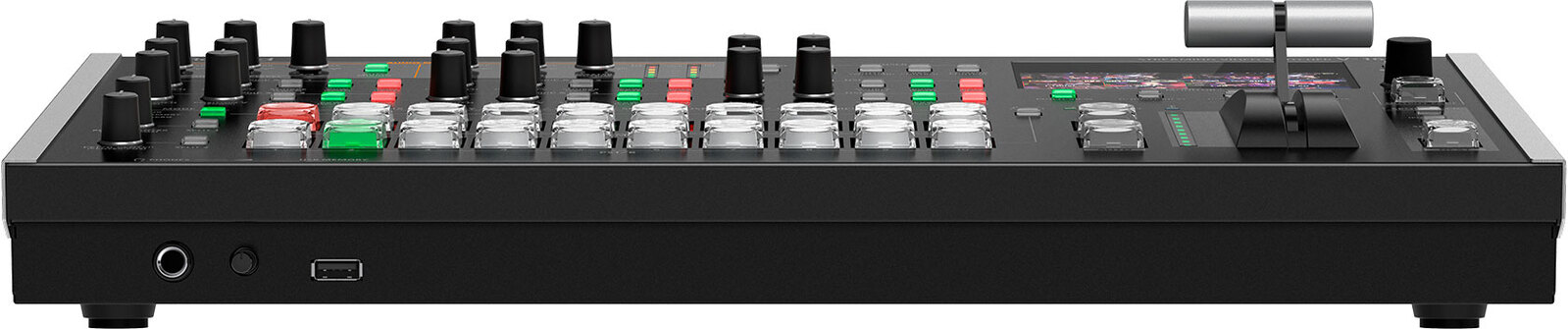

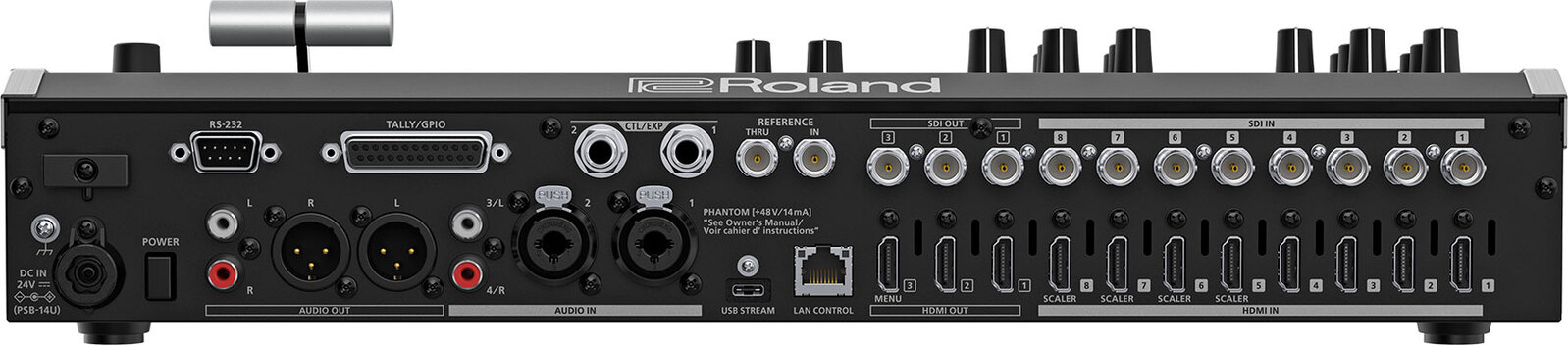

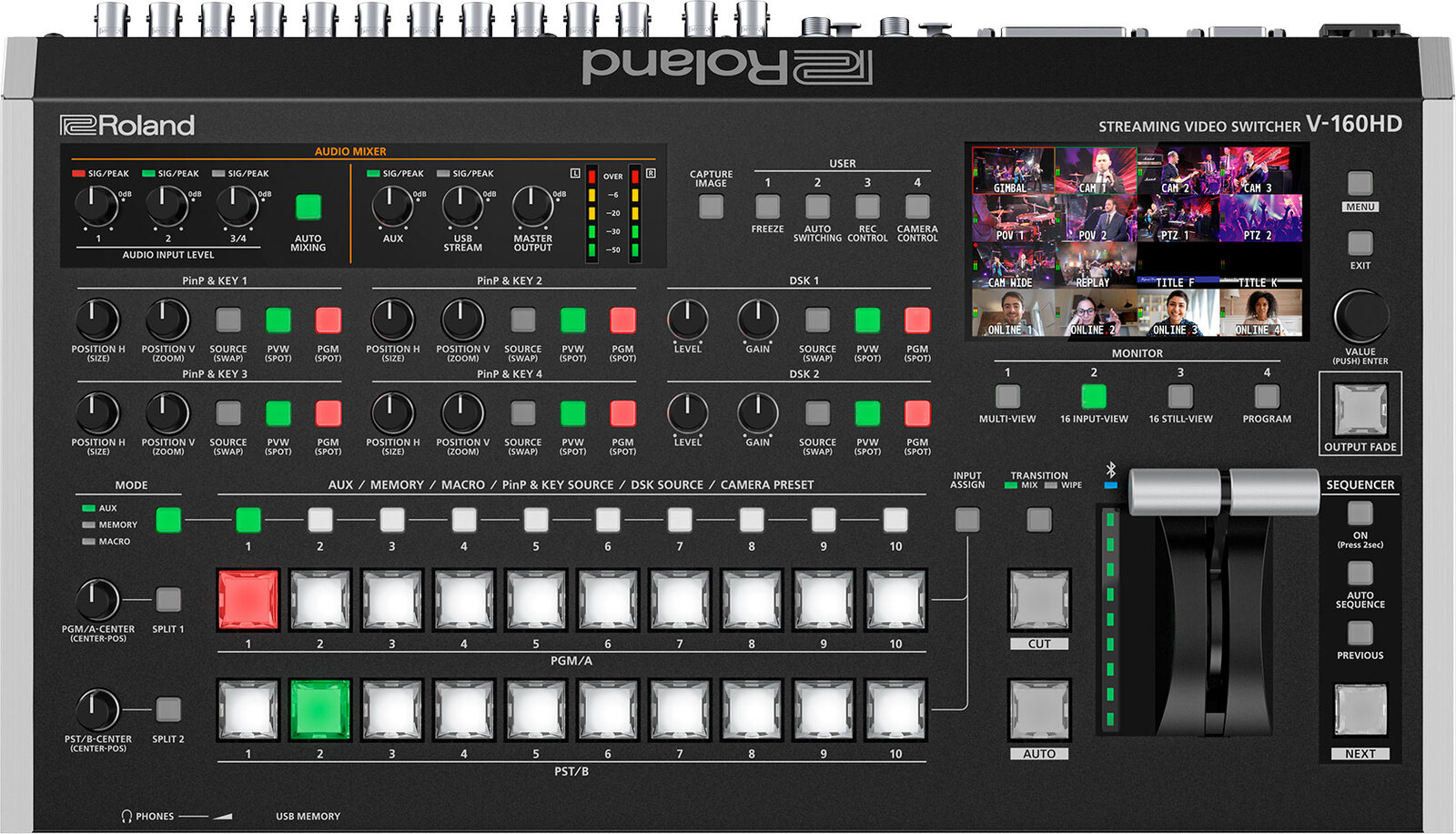

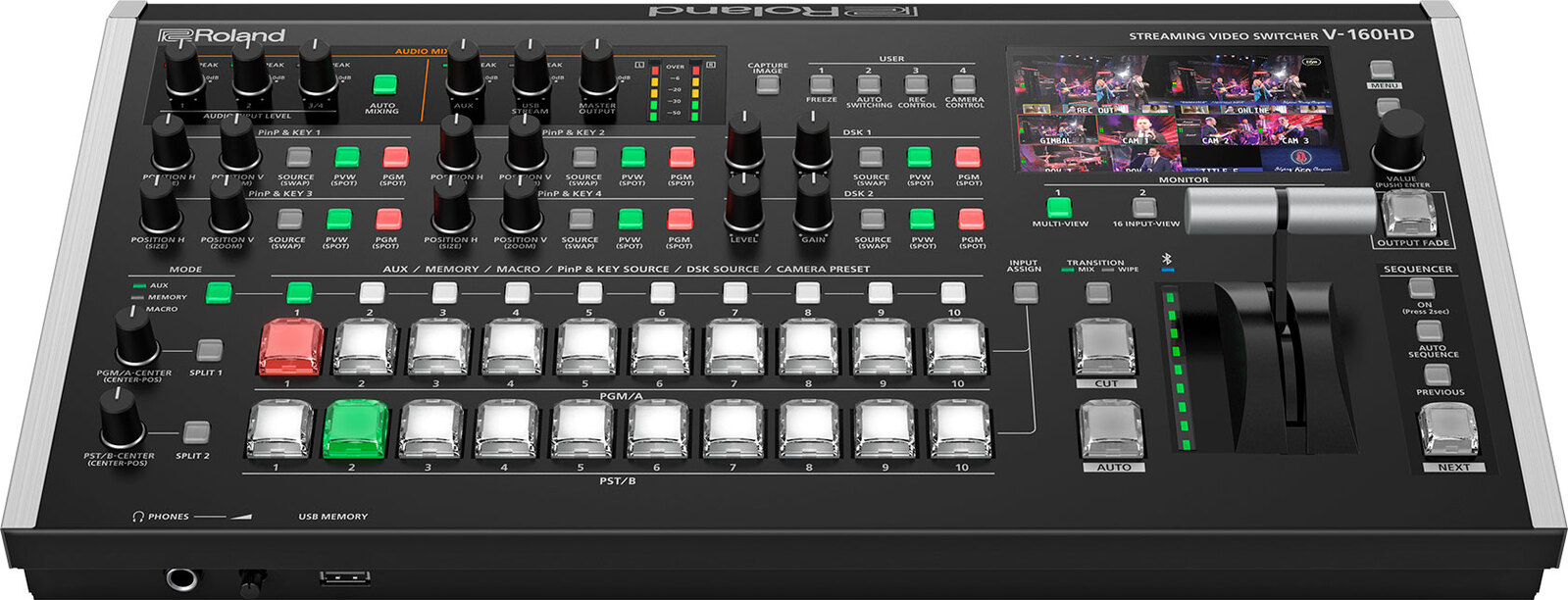

ROLAND V-160HD STREAMING VIDEO SWITCHER

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors: HDMI IN 1--4: HDMI type A x 4
* HDCP Supported

HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported

SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Output Connectors: HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported

SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

USB STREAM: USB Type-C (TM)

PREIVEW: HDMI type A
Input Formats: HDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz

HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* * It can be exported in the USB flash drive.
* PNG alpha channel supported.
Output Formats: HDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz

HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 Hz

USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p ※1
1080/60p, 720/60p, 640 x 480/60p ※2
1080/29.97p, 720/29.97p, 640 x 480/29.97p ※3
1080/30p, 720/30p, 640 x 480/30p ※4
1080/50p, 720/50p, 640 x 480/50p ※5
1080/25p, 720/25p､640 x 480/25p ※6
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 60 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 30 Hz
*5 FRAME RATE(USB OUT) = 50 Hz
*6 FRAME RATE(USB OUT) = 25 Hz
Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing: Sample rate: 24 bits/48 kHz
Audio formats: USB STREAM (input/output): Linear PCM, 24 bits/48 kHz, 2ch
Bluetooth (input): Linear PCM, 24 bits/48 kHz, 2ch
HDMI IN: Linear PCM, 24 bits/48 kHz, 2ch
HDMI OUT: Linear PCM, 24 bits/48 kHz, 8ch
SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
Input Connectors: Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type

Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8
Output Connectors: Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type

Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3
Input Level: AUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance: AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms
Output Level: AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
Audio Effects: Auto Mixing, Delay, Reverb, High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output
OTHERS
Other Connectors: USB MEMORY: USB A type (for USB flash drive)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
Other Functions: Preset Memory (30 types)
Macro Control (100 types)
Sequencer Control
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control
Rec Control
Bluetooth: Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display: 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply: AC adaptor
Current Draw: 2.5 A
Power Consumption: 55 W
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches

480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.
Weight (excluding AC adaptor): 3.9 kg
8 lbs 10 oz
Accessories: Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6
Options (sold separately): Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H

* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15.

(ROLV-160HD)
