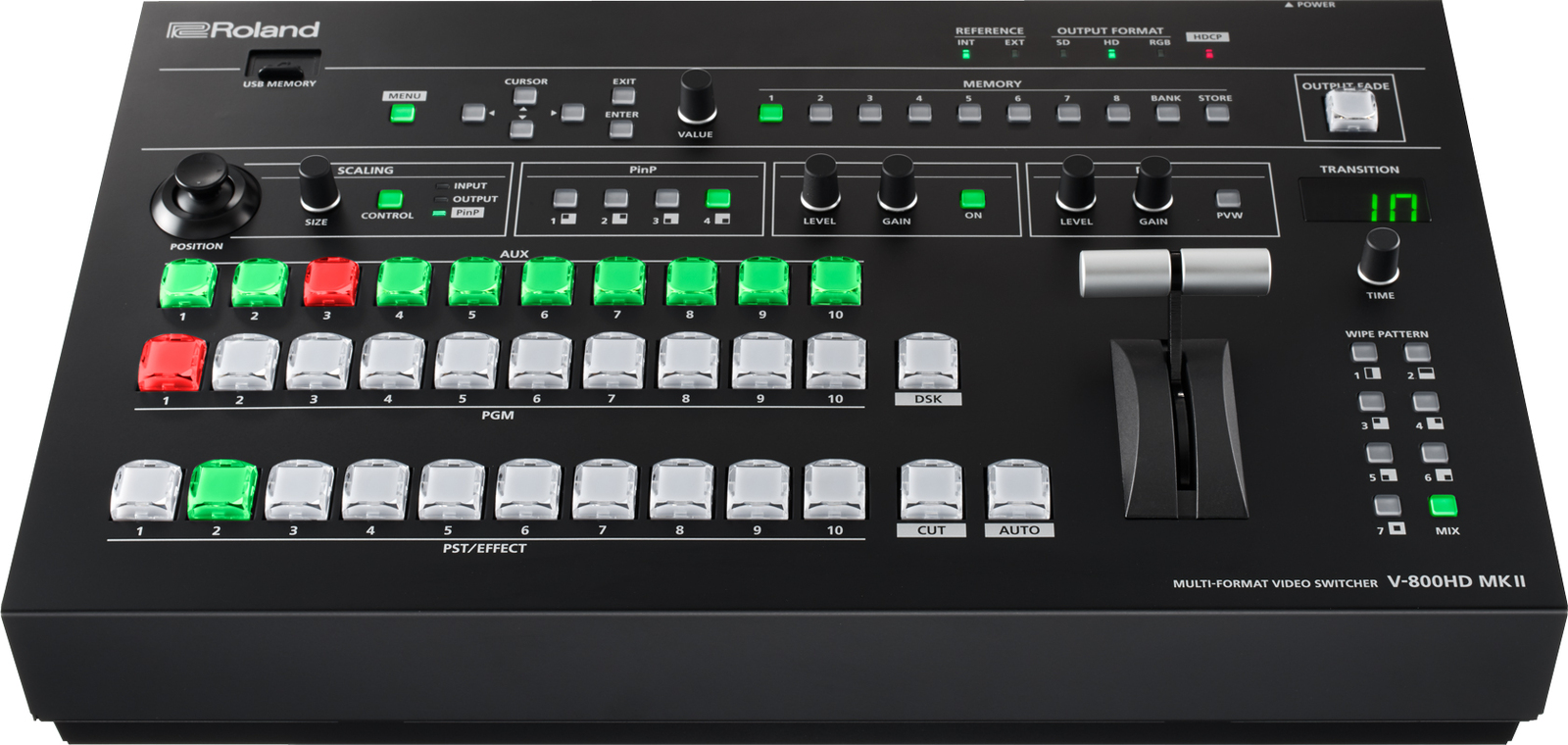

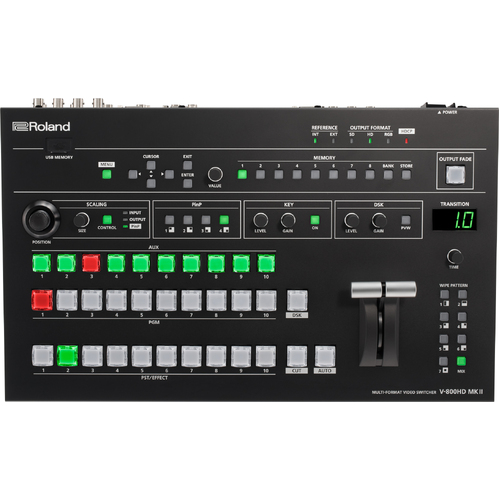

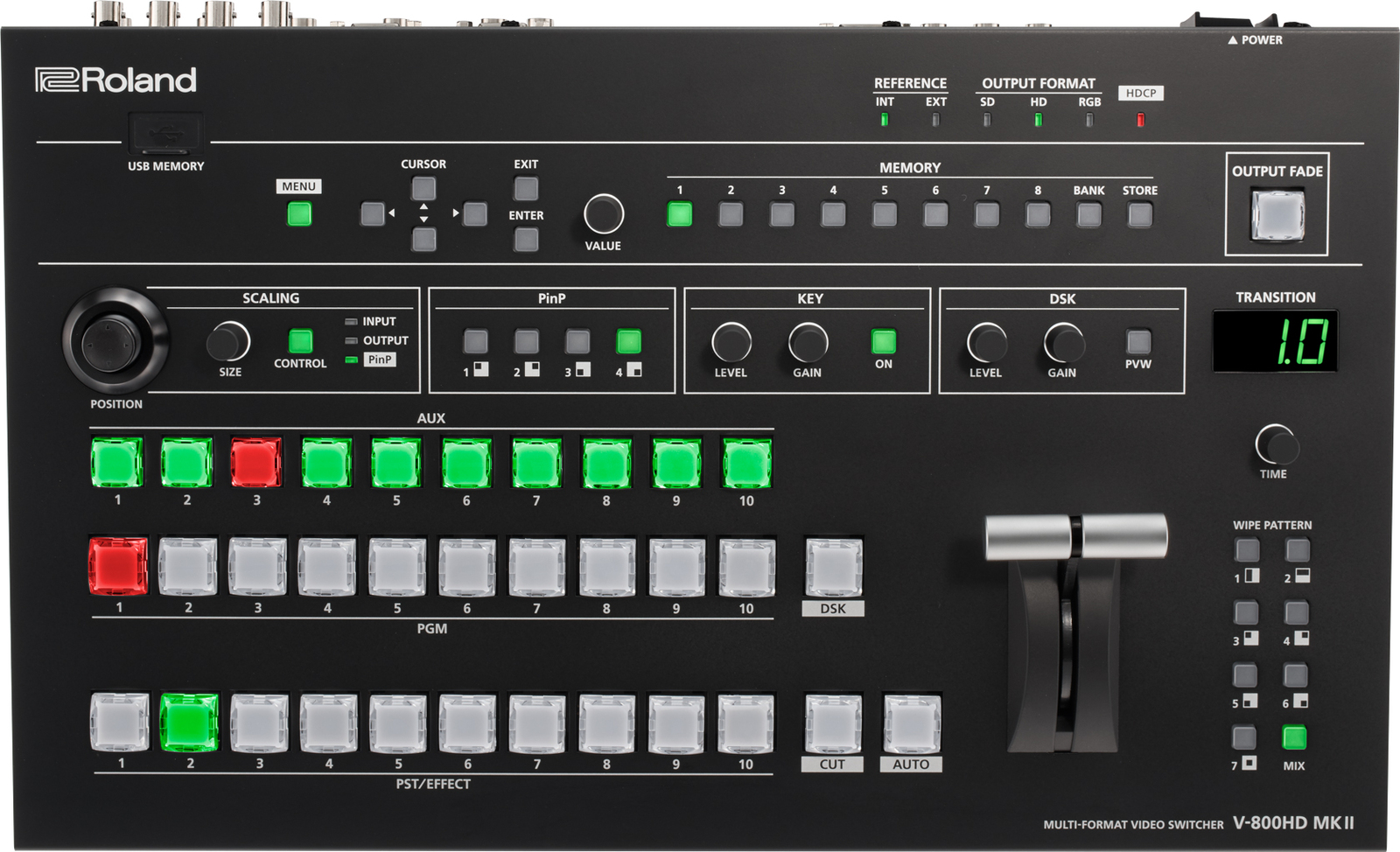

ROLAND V-800HDMK2 MULTI - FORMAT VIDEO SWITCHER

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Processing: 4:4:4 (Y/Pb/Pr, RGB), 10-bit
SUPPORTED FORMATS
Video: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting.
PC: 640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.
Still Image: Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed
INPUT/OUTPUT LEVEL AND IMPEDANCE
Composite: 1.0 Vp-p, 75 ohms
Analog HD/RGB: 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)

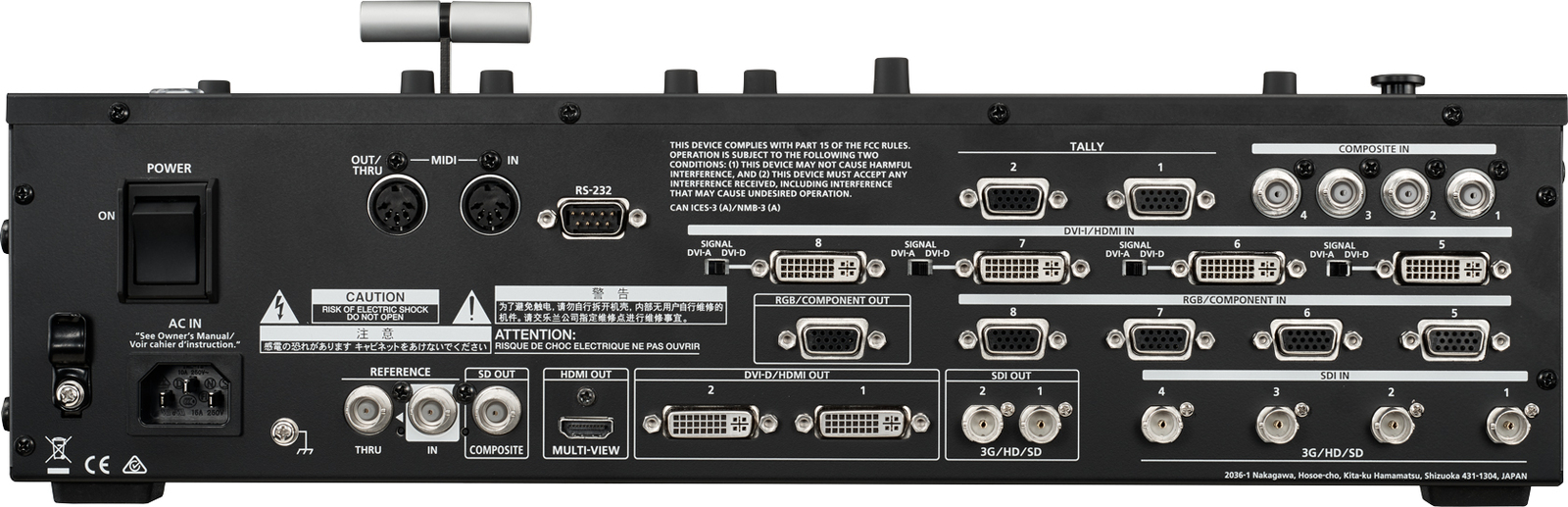

INPUT CONNECTORS
3G/HD/SD-SDI: BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
DVI-I/HDMI: DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel
Analog Video (HD): Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB
Analog Video (SD): Composite (BNC type) x 4
* Select Composite or SDI using menu per channel
Analog RGB: Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel
OUTPUT CONNECTORS
3G/HD/SD-SDI: BNC type x 2
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
DVI-D/HDMI: DVI-I type x 2, HDMI x 1 (for multi-view monitor)
Analog Video (HD): Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB
Analog Video (SD): Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input.
Analog RGB: Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD)
OTHER CONNECTORS
Tally: Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type
Reference: BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level
MIDI: 5 pin DIN type (IN, OUT/THRU)
RS-232: D-sub 9 pin type x 1
USB port (host): A type x 1 (for USB memory)
EFFECTS
Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, DSK, Chrominance Key, Luminance Key, External Key
Others: Output Fade, Output Freeze
OTHERS
Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption: 75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V)
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Accessories: Owner's Manual, Power cord, Rack-mount angle x 2
SIZE AND WEIGHT
Dimensions: 482 (W) x 275 (D) x 116 (H) mm
19 (W) x 10-7/8 (D) x 4-5/8 (H) inches
* When rack mount angles are fitted.
Weight: 5.5 kg
12 lbs 3 oz
* This product is a Class A digital device under FCC part 15.

(ROLV-800HDMK2)
