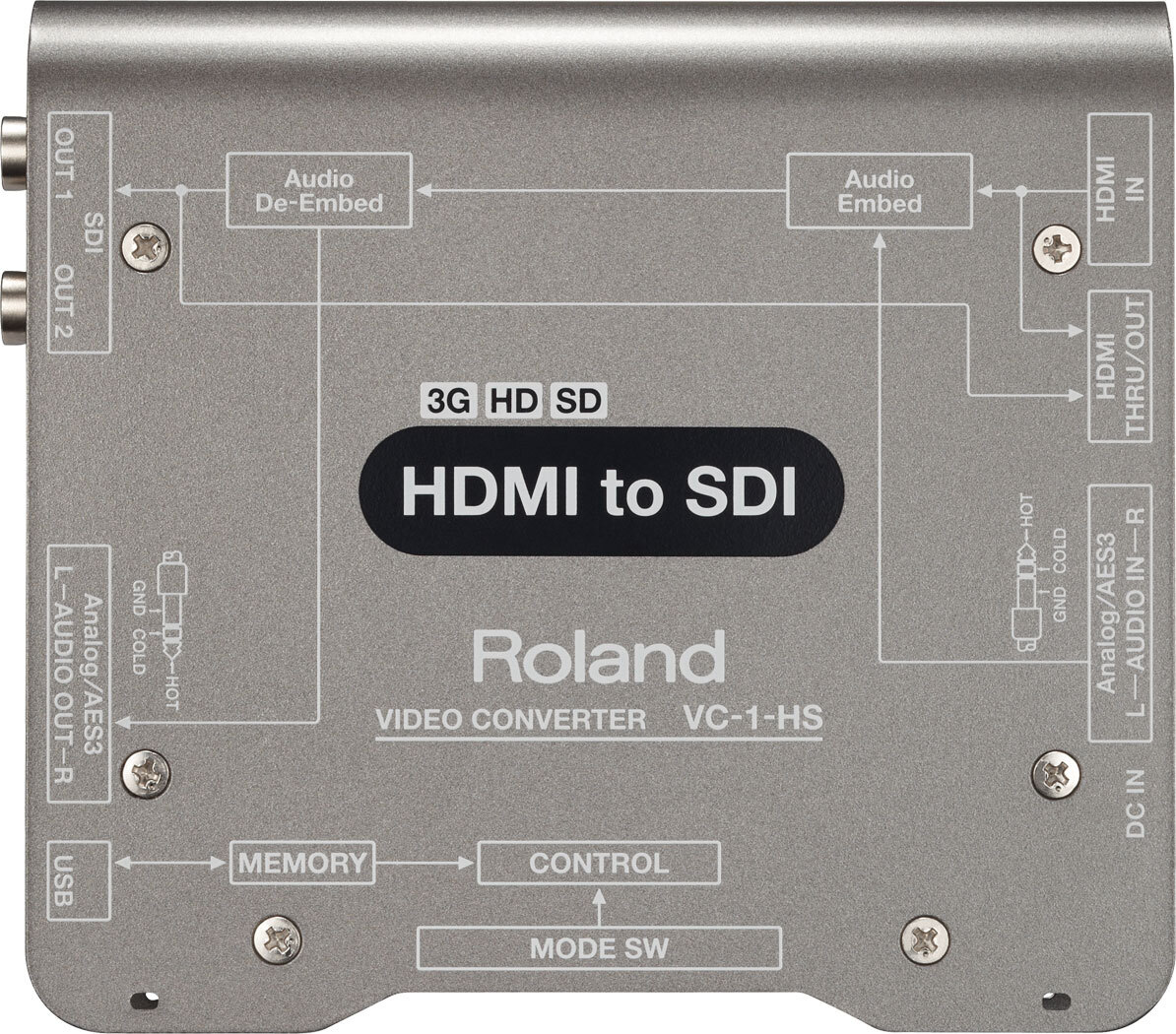

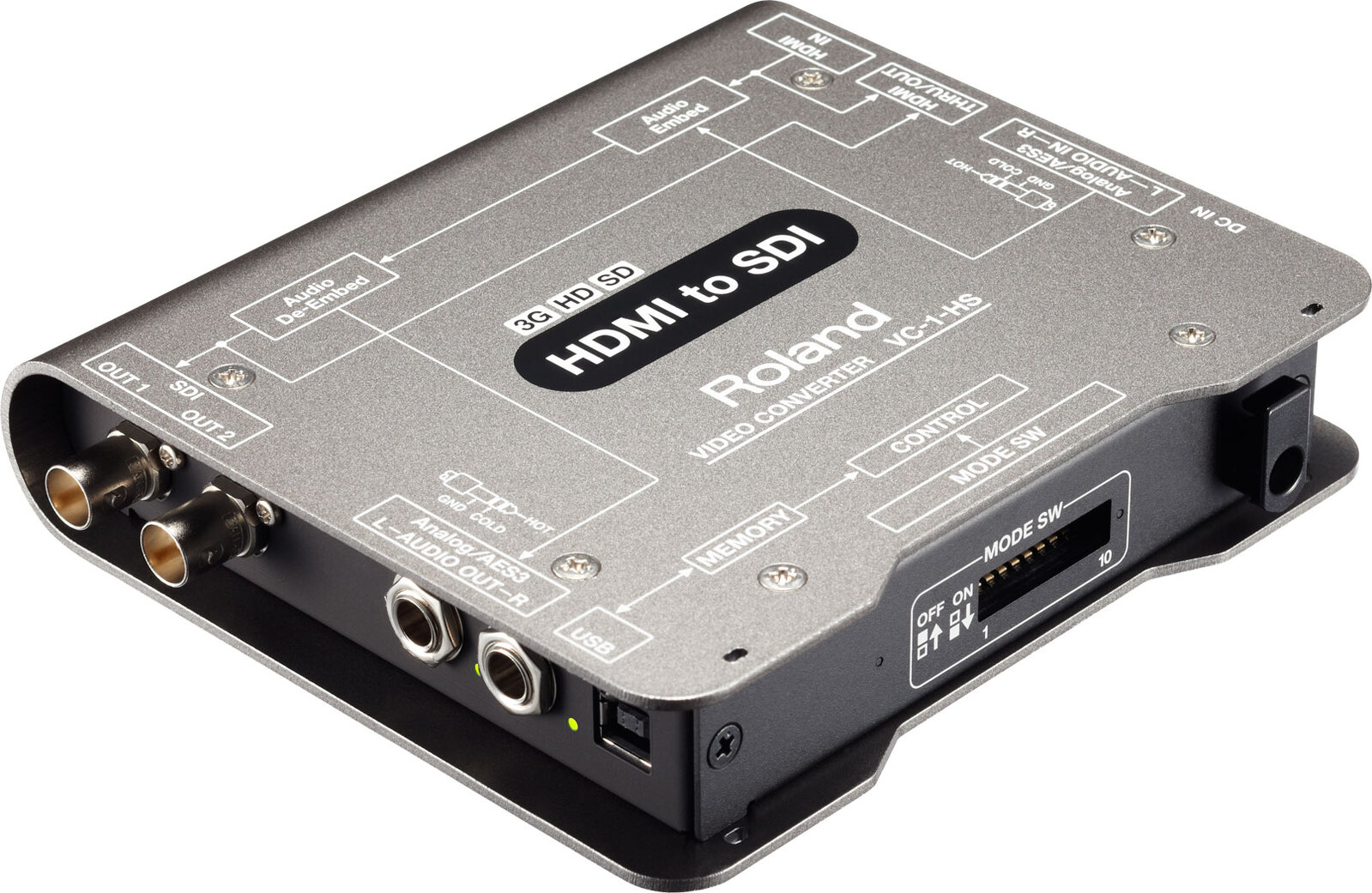

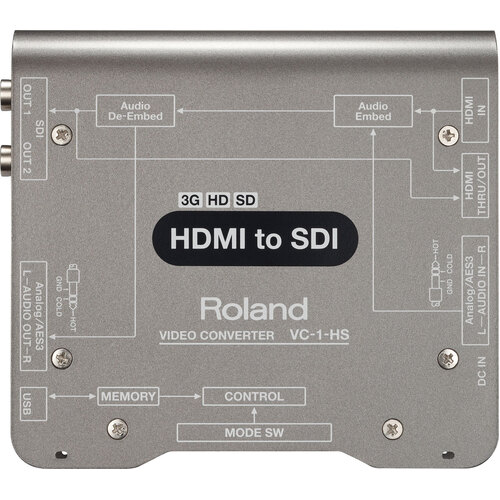

ROLAND VC-1-HS HDMI to SDI Video Converter
$849.00
Sold Out - Backorder Available

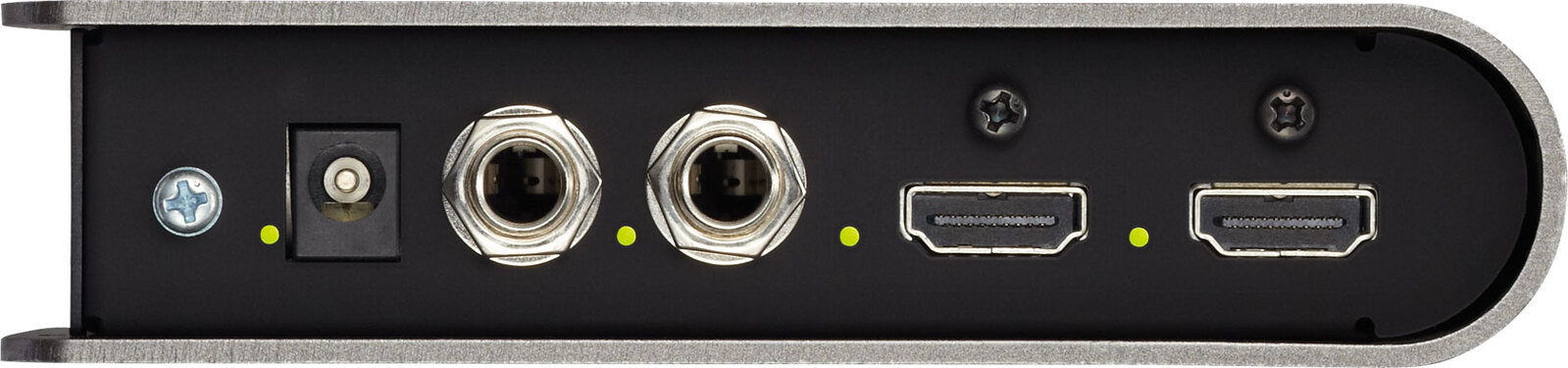

- INPUT
- HDMI
- Type A (19 pins ) x 1
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 ( Combined use with Analog Audio R ch Connector )
- PROCESSING
- Audio embedding Audio de-embedding

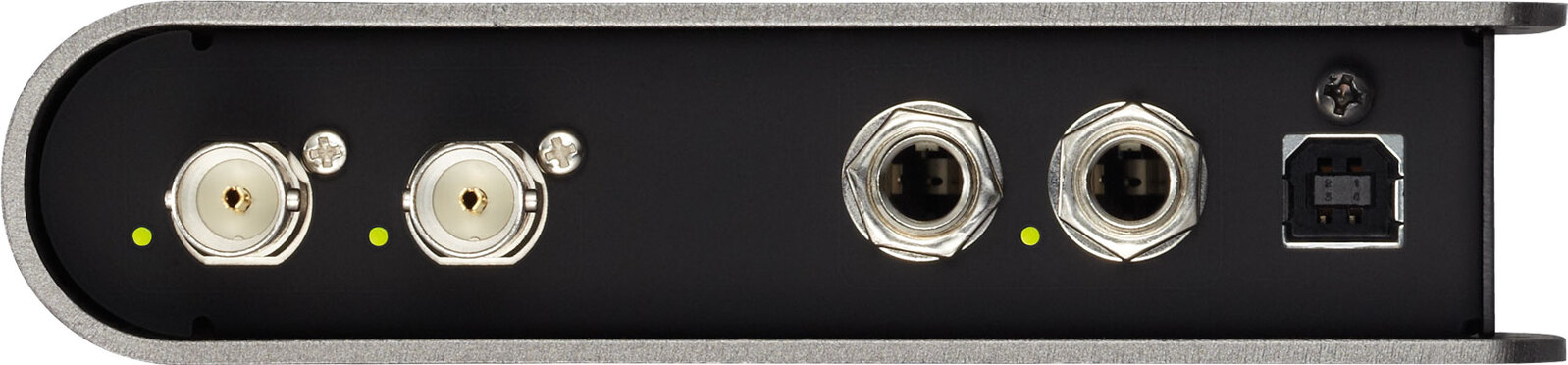

- OUTPUT
- SDI Connector
- BNC type x 2
- HDMI Connector
- Type A (19 pins ) x 1 (Thru/Out )
- Analog Audio Connector
- 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector
- 1/4" TRS phone type ( balanced) x 1 ( Combined use with Analog Audio R ch Connector )
- INPUT / OUTPUT FORMAT
- SDI Input Signal Standards
- SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Input Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Input Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch
- SDI Output Signal Standards
- SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- SDI Output Audio Format
- Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Output Video Format
- 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Output Audio Format
- Linear PCM, 24 bit, 48 kHz, 8 ch
- AUDIO INPUT / OUTPUT
- Analog Audio Input Level
- +4dBu
- Analog Audio Maximum Input Level
- +24dBu
- Analog Audio Input Impedance
- 110 ohms
- Analog Audio Output Level
- +4dBu
- Analog Audio Output Impedance
- 600 ohms
- Digital Audio Output Signal Format
- AES3, 16/24 bits, 32/48 kHz, 2 ch
- Digital Audio Output Impedance
- 110 ohms
- OTHERS
- USB Connector
- USB Type B (Hi-Speed USB) x 1
- Power Supply
- DC 9V
- Power Consumption
- 8W
- Operation Temperature
- +0 to + 40 degrees Celsius
- Accessories
- AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
- SIZE AND WEIGHT
- Width
- 150 mm
5-15/16 inches - Depth
- 130 mm
5-1/8 inches - Height
- 30 mm
1-3/16 inches - Weight
- 500 g
1 lbs. 2 oz.
(ROLVC-1-HS)
| SKU | ROLVC-1-HS |
| Brand | ROLAND |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.060m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.001728000m3 |
