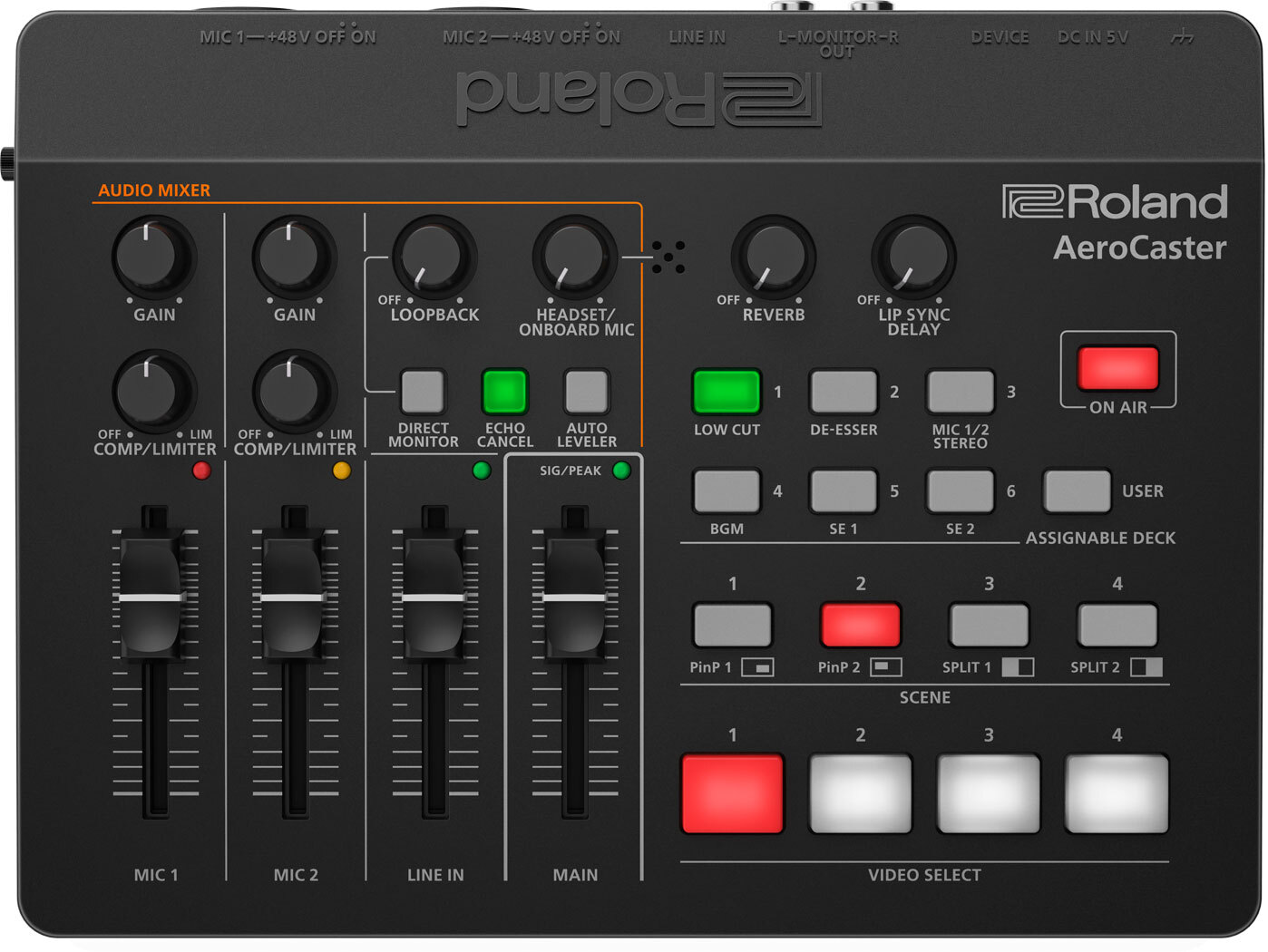

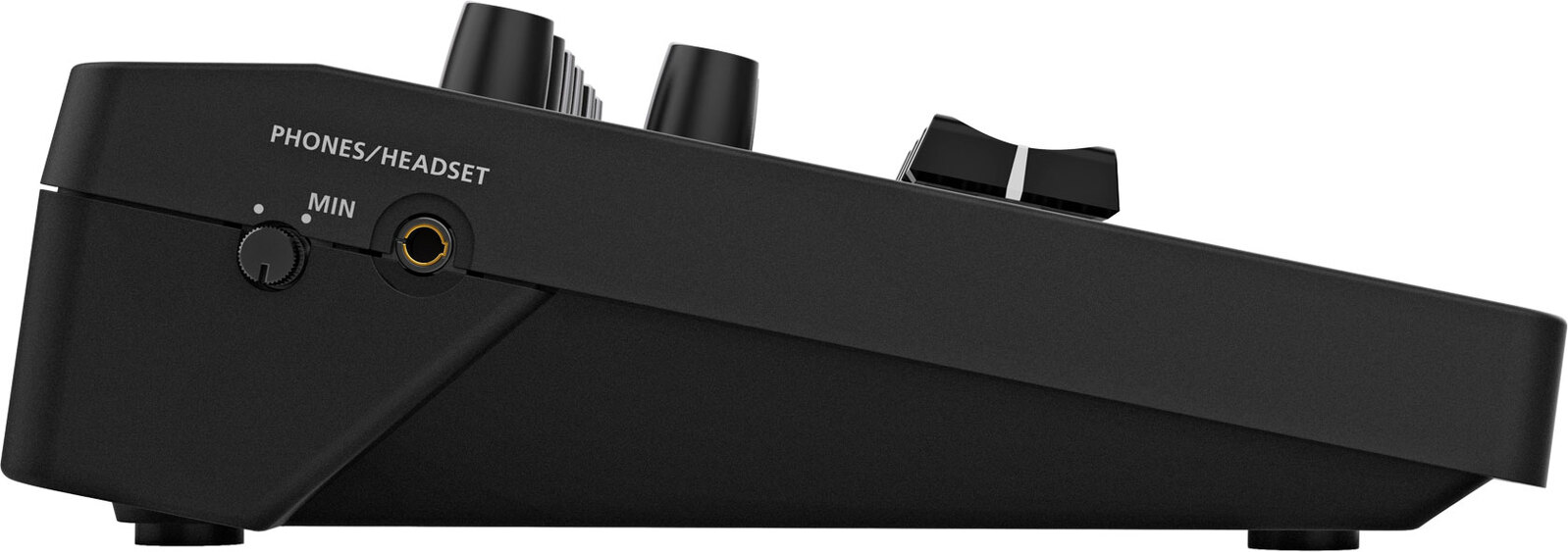

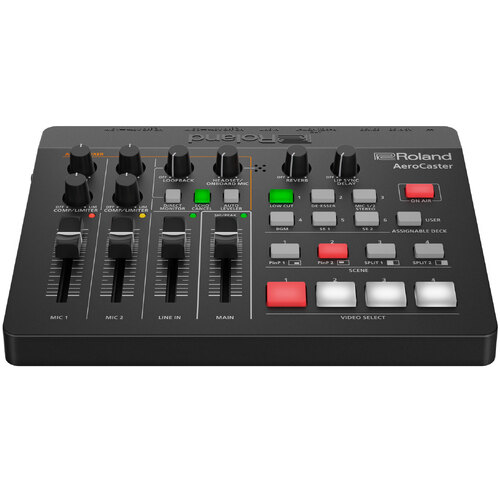

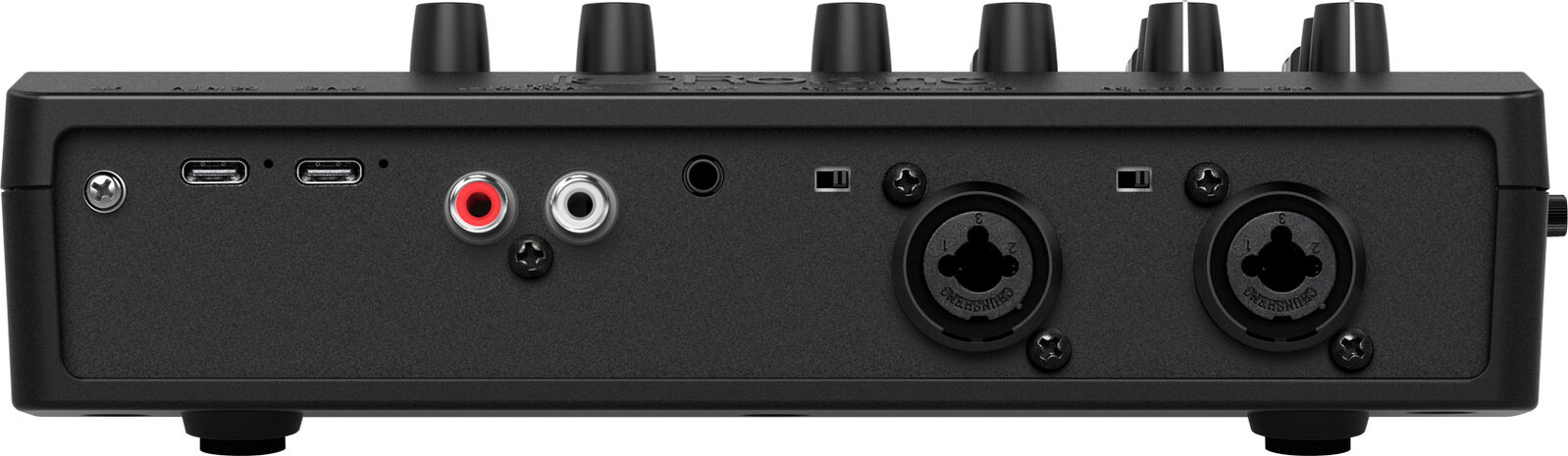

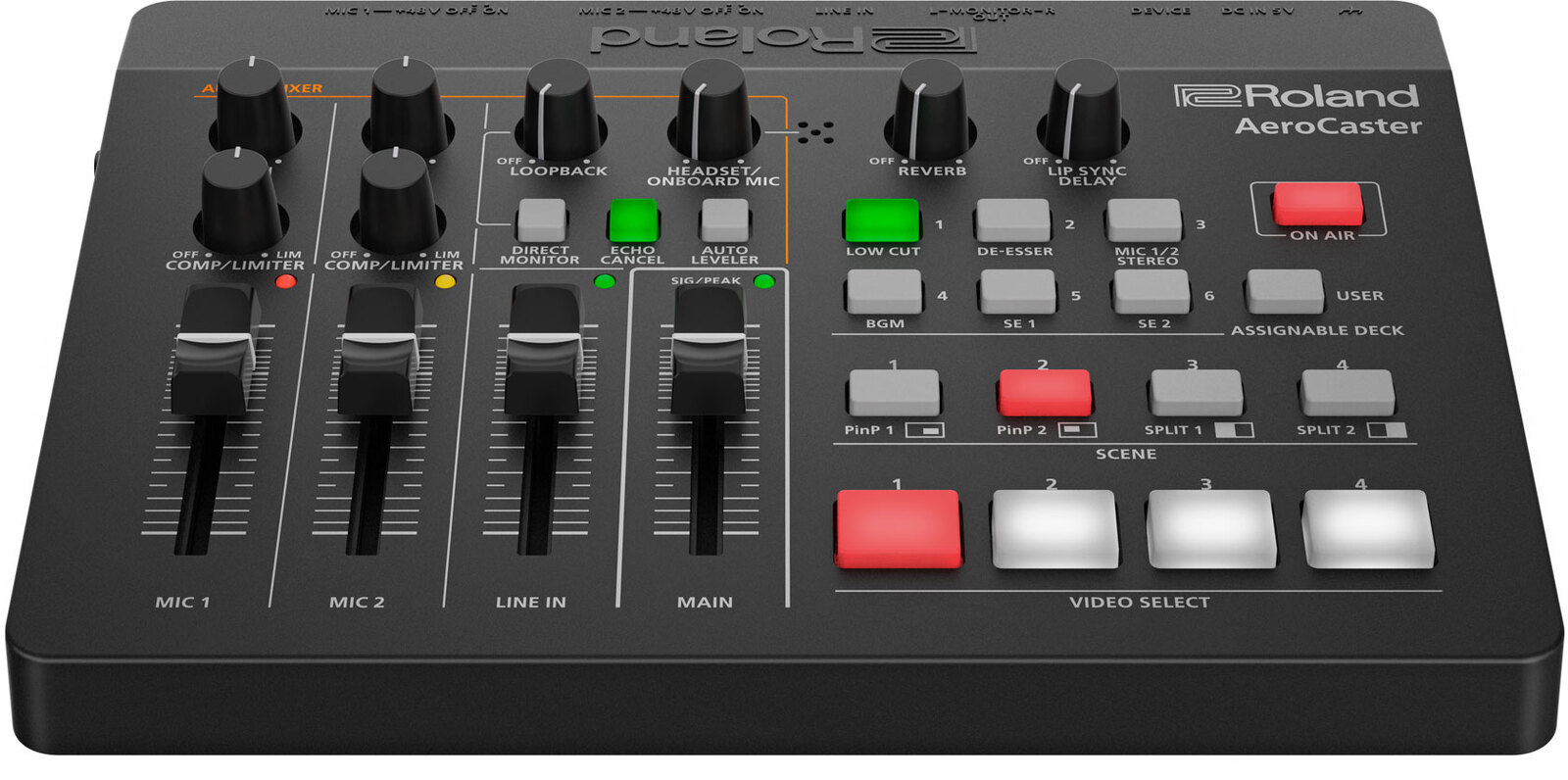

ROLAND VRC-01 AeroCaster (Wireless Livestreaming)

ROLAND VRC-01 AeroCaster (Livestreaming)

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Connectors: MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type
PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type)
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R)
Controller: MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader

MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob

MIC 1 +48V switch
MIC 2 +48V switch
Indicator: POWER
DEVICE
SIG/PEAK
Nominal Input Level: MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)
Input Impedance: MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms
Nominal Output Level: MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load)
Output Impedance: MONITOR OUT jacks: 1 k ohms
Audio Effects: Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter
Power Supply: USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power
Current Draw: 700 mA (AC adaptor)
500 mA (USB bus power)
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches
Weight (without cables): 600 g
1 lb 6 oz
Accessories: Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable
: * 0 dBu = 0.775 Vrms
AEROCASTER LIVE
Video Input: Satellite camera
Browser source
Built-in camera (iPad).
* 5 inputs in total
* Satellite cameras can be used with AeroCaster Camera or Web browser.
* Need to install the “AeroCaster Camera” App on your iPhone and Android Phone.
* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.
* Codec:H.264 Bitrate:Up to 20Mbps
Video Processing: RGB 4:4:4, 8-bit
1080/60p
* Depends on iPad internal processing
* Video input will be converted automatically.
Input Formats: Up to 1080/30p
* Automatically adjusts resolution and frame rate according to network bandwidth.
Output Formats: Up to 1080/60p
* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter.
Still image and video and audio playback: Up to 100.
* Use still images and videos saved in the iPad.
* File format conforms to iOS Photo Library.
* PNG alpha channel supported.
* Support mp4(aac), m4a(aac), mp3, wav as audio source.
Scene: Up to 30.
* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered.
Video Effects: Transition: CUT, MIX (DISSOLVE), WIPE
DSK (overlay): Text, Media
Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function
* PNG alpha channel composition supported
Audio Processing: Sampling Rate: 24 bits, 48 kHz
Streaming Platform: YouTube Live
Facebook Live
Twitch
* Custom RTMP supported
Recording: Format : MP4 (H.264/AAC)
Bitrate : 1Mbps〜10Mbps
Other Functions: (Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)
* Depends on smart phone or tablet
OPERATING CONDITIONS
AeroCaster LIVE (for iPad): Operating System:
iOS 14 or later
CPU:
Apple A12 processor or better (A12Z or better is recommended)
AeroCaster Camera (for iPhone, iPad): Operating System:
iOS 13 or later
CPU:
Apple A10 processor or better (iPhone 7 or higher recommended)
AeroCaster Camera (for Android): Operating System:
Android 10 or later
CPU:
Models with H.264 hardware encoder
Others:
Screen resolution 1280x720 or higher
Equipped with two or more cameras in front and rear

(ROLVRC-01)

SKU	ROLVRC-01
Brand	ROLAND
Shipping Weight	1.5000kg
Shipping Width	0.260m
Shipping Height	0.110m
Shipping Length	0.210m
Shipping Cubic	0.006006000m3
