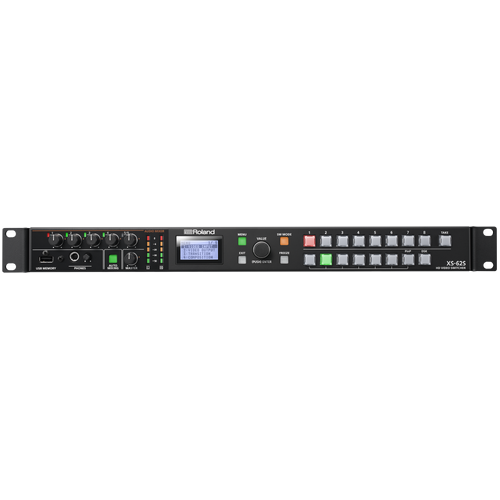

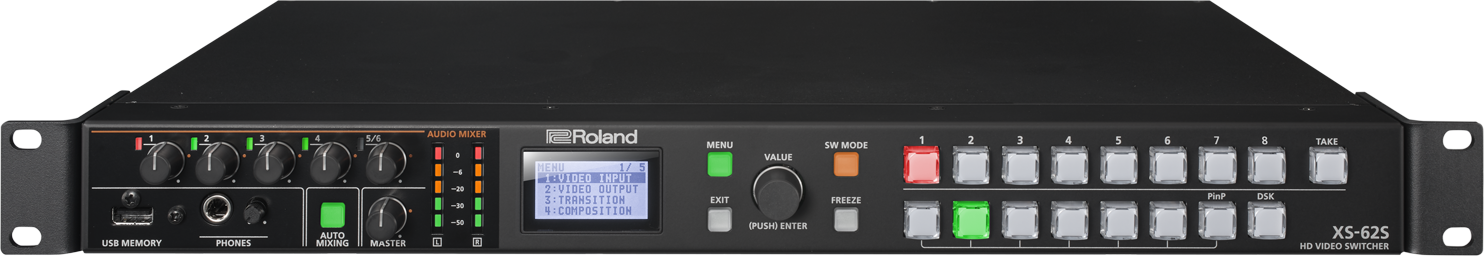

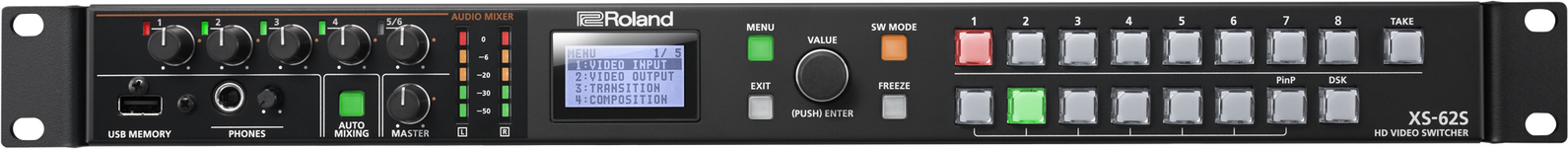

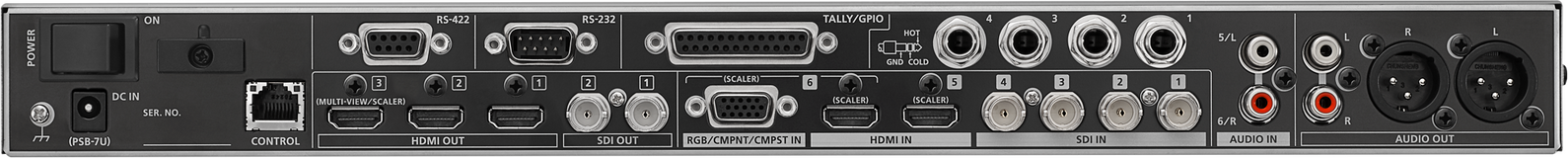

ROLAND XS-62S HD VIDEO SWITCHER

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors: SDI IN 1--4 connectors: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

HDMI IN 5--6 connectors: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

RGB/CMPNT/CMPST IN 6 connector: HD DB-15 type x 1
* Select either HDMI, RGB/COMPONENT, or COMPOSITE for the INPUT 6 connector.
* Multi-format Supported
Output Connectors: SDI OUT 1--2 connectors: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

HDMI OUT 1--3 connectors: HDMI type A x 3
* HDCP Supported
Analog Input Level, Impedance: RGB: 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
COMPONENT: 1.0 Vp-p, 75 ohms (Bi-level sync/Tri-level sync)
COMPOSITE: 1.0 Vp-p (Y), 0.286 Vp-p (C: NTSC), 0.3 Vp-p (C: PAL), 75 ohms
Input formats: SDI IN 1--4 connectors (Conforms to SMPTE 296M, SMPTE 274M)
(SYSTEM FORMAT = 720p): 720/59.94p, 720/50p
(SYSTEM FORMAT = 1080i or 1080p): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

HDMI IN 5--6, RGB/COMPONENT/COMPOSITE IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p,
720/59.94p, 720/50p, 1080/59.94i, 1080/50i,
1080/59.94p, 1080/50p,
VGA (640 x 480, 60 Hz), SVGA (800 x 600, 60 Hz), XGA (1024 x 768, 60 Hz),
WXGA (1280 x 800, 60 Hz), SXGA (1280 x 1024, 60 Hz),
FWXGA (1366 x 768, 60 Hz), SXGA+ (1400 x 1050, 60 Hz),
UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

RGB/CMPNT/CMPST IN 6 (When inputting COMPOSITE signals): 480/59.94i, 576/50i
Still Image: Bitmap File (.bmp): Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png): Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 2 files in the internal memory.
* PNG alpha channel not supported.
Output formats: SDI OUT 1--2 connectors (Conforms to SMPTE 296M, 274M), HDMI OUT 1--2 connectors
(System Format = 720p): 720/59.94p, 720/50p
(System Format = 1080i): 1080/59.94i, 1080/50i
(System Format = 1080p): 1080/59.94p, 1080/50p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

HDMI OUT 3 connector
(MULTI-VIEW): 1080/59.94p, 1080/50p
(SCALER): 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p, SVGA (800 x 600, 60 Hz) *1, XGA (1024 x 768, 60 Hz) *1, WXGA (1280 x 800, 60 Hz) *1, SXGA (1280 x 1024, 60 Hz) *1, FWXGA (1366 x 768, 60 Hz) *1, SXGA+ (1400 x 1050, 60 Hz) *1, UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* Select either MULTI-VIEW or scaling output
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
* 1920 x 1200, 60 Hz: Reduced blanking
(*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Video Effects: Output Mode: PGM-PST, DISSOLVE, MATRIX
Transition: CUT, MIX (DISSOLVE/FAM/NAM) *2, WIPE (30 types) *2
Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND) *2, SPLIT (4 types) *2, DSK (Luminance Key, Chroma Key) *2
Other: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
(*2) These effects depend on Output Mode
AUDIO
Audio Processing: Sample rate: 48 kHz, 24 bits
Audio formats: SDI IN connectors: Linear PCM, 48 kHz, 24 bits, 2 ch (Conforms to SMPTE 299M)
SDI OUT connectors: Linear PCM, 48 kHz, 24 bits, 8 ch (Conforms to SMPTE 299M)
HDMI IN connectors, HDMI OUT connectors: Linear PCM, 48 kHz, 24 bits, 2 ch
Input Connectors: SDI IN 1--4 connectors: BNC type x 4
HDMI IN 5--6 connectors: HDMI Type A x 2
AUDIO IN 1--4 jacks: 1/4-inch TRS phone type
AUDIO IN 5--6 connectors: RCA phono type
Output Connectors: SDI OUT 1--2 connectors: BNC type x 2
HDMI OUT 1--3 connectors: HDMI type A x 3
AUDIO OUT connectors/jacks: XLR type, RCA phono type
PHONES jack: Stereo 1/4-inch phone type
Nominal Input Level: AUDIO IN 1--4 jacks: -60--+4 dBu (Maximum input level: +22 dBu)
AUDIO IN 5--6 jacks: -10 dBu (Maximum input level: +8 dBu)
Input Impedance: AUDIO IN 1--4 jacks: 28 k ohms (HEAD AMP GAIN: 0--+23 dBu), 8 k ohms (HEAD AMP GAIN: +24--+64 dBu)
AUDIO IN 5--6 jacks: 15 k ohms
Nominal Output Level: AUDIO OUT connectors (XLR type): +4 dBu (Maximum input level: +22 dBu)
AUDIO OUT jacks (RCA phono type): -10 dBu (Maximum input level: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT connectors (XLR type): 600 ohms
AUDIO OUT connectors (RCA phono type): 1 k ohm
PHONES: 10 ohms
Audio Effects: Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
OTHER
Connectors: USB MEMORY port: USB A type (For USB flash drive)
TALLY/GPIO connector: DB-25 type (Female)
RS-232 connector: DB-9 type (Male, for remote control)
RS-422 connector: DB-9 type (Female, for VISCA control)
CONTROL connector: RJ45, 100BASE-TX (For remote control)
Functions: Preset Memory (8 types)
Panel Lock Function
EDID Emulator
Smart Tally
Remote Camera Control
Auto Scan
Display: Graphic LCD: 128 x 64 dots
Power Supply: AC Adaptor
Current Draw: 2.6 A
Power Consumption: 31.0 W
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 481 (W) x 333 (D) x 44 (H) mm
18-15/16 (W) x 13-1/8 (D) x 1-3/4 (H) incheses
Weight (excluding AC adaptor): 3.6 kg
7 lbs 15 oz
Accessories: Owner's manual
AC adaptor
Power cord
Rubber feet (4 pcs.)

(ROLXS-62S)
