SONY DWZ-M50

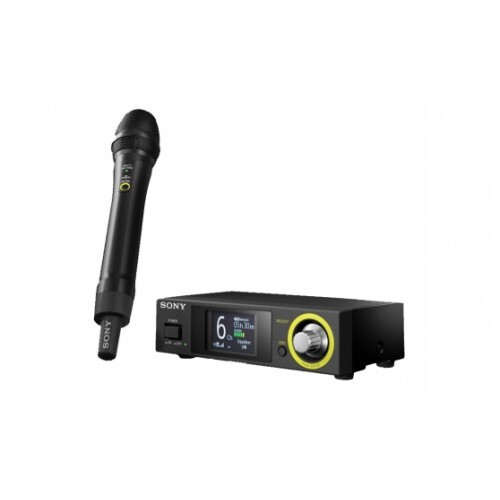

Package features ZRX-HR50 digital wireless half-rack receiver and ZTX-M01 digital wireless handheld transmitter
The vocal set version of the DWZ digital wireless microphone system offers high quality 24-bit / 48kHz linear PCM digital transmission with up to six simultaneous channels for use on the road. It has customisable sound quality with a 5-band equalizer for increased control and features an easy-to-use large colour LCD for improved visibility.
-
Superb digital sound
With 24-bit linear PCM digital, you get high sound quality with reliable RF transmission, utilising unique transmission technology developed by Sony. Also, with support for two RF modes, your experiences can be shared over WiFi.
| Other Equipment | |
| Display | LCD |
| Technical Specifications | |
| Analog Output: | XLR-3-32, balanced (x1) Phone jack, unbalanced (x2) Maximum output level -Balanced Output MIC: -22 dBu LINE: +24 dBu -Unbalanced Output: +8 dBu Reference output level -Balanced Output MIC: -58 dBu LINE: -12 dBu -Unbalanced Output: -28 dBu |
| Audio Attenuator Adjustment Range: | 0 / 6 / 12 dB |
| Audio Delay: | Narrow band mode: Approx. 3 ms / Wide band mode: Approx. 6 ms (Transmitter + Receiver) |
| Capsule Type: | Dynamic |
| Directivity: | Uni-directional |
| Dynamic Range: | 102 dB (A-weighted |
| Frequency Response: | Transmission: 10 Hz to 22 kHz Microphone unit: 70 Hz to 16 kHz |
| Input Connector: | BNC-R, 50 Ω (x2) |
| Maximum Input Level: | 142 dBSPL (with 12 dB attenuator |
| T.H.D: | 0.03% or less (-38 dBu, 1 kHz input) |
| Transmitting Section | |
| Antenna Type | External whip antenna |
| Carrier Frequencies | 2402.0 MHz to 2478.5 MHz Ch1: 2402/2478.5 MHz Ch2: 2421.5/2472.5 MHz Ch3: 2427.5/2475.5 MHz Ch4: 2424.5/2446.5 MHz Ch5: 2449.5/2469.5 MHz Ch6: 2405/2452.5 MHz Ch a: 2469.5/2474/2478.5 MHz Ch b: 2442.5/2447/2451.5 MHz Ch c: 2415.5/2420/2424.5 MHz Ch d: 2456/2460.5/2465 MHz Ch e: 2429/2433.5/2438 MHz Ch f: 2402/2406.5/2411 MHz |
| Modulation Method | GFSK |
| Occupied RF Bandwidth | 2.5 MHz |
| RF Power Output | 10 mW (e.i.r.p.) |
| Transmitter Type | Handheld |
| Type of Emission | F1D and F1E |
| Receiver Section | |
| Receiver Type | Space diversity |
| Receiving Frequencies | 2402.0 MHz to 2478.5 MHz Ch1: 2402/2478.5 MHz Ch2: 2421.5/2472.5 MHz Ch3: 2427.5/2475.5 MHz Ch4: 2424.5/2446.5 MHz Ch5: 2449.5/2469.5 MHz Ch6: 2405/2452.5 MHz Ch a: 2469.5/2474/2478.5 MHz Ch b: 2442.5/2447/2451.5 MHz Ch c: 2415.5/2420/2424.5 MHz Ch d: 2456/2460.5/2465 MHz Ch e: 2429/2433.5/2438 MHz Ch f: 2402/2406.5/2411 MHz |
| RF Sensitivity | 24 dBμV or less |
| General | |
| Battery Operating Time | Approx. 10 hours of continuous use (25 °C (77 °F) ambient temperature, Sony LR6 (size AA) alkaline dry cell batteries) |
| Dimensions* | ZTX-M01: φ 48 × 258 mm (1 15/16 × 10 1/4 inches) (diameter/length) ZRX-HR50: 168 × 44 × 96 mm (6 5/8 × 1 3/4 ×3 7/8 inches) (w/h/d) |
| Mass | ZTX-M01: Approx. 305 g (11 oz.) (including batteries) ZRX-HR50: Approx. 510 g (1 lb. 2.0 oz.) |
| Operating Temperature | 0°C to 50°C 32°F to 122°F |
| Power Requirements | ZTX-M01: 3.0 V DC (two LR6 (size AA) alkaline dry cell batteries) ZRX-HR50: External DC input: 12 V DC |
| Storage/Transport Temperature | -20°C to +60°C -4°F to +140°F |
| Supplied Accessories | Mic holder (1) Antenna (2) AC adapter (1) Operating Instructions (1) CD-ROM (1) |
(SONY-DWZ-M50)
| SKU | SONY-DWZ-M50 |
| Brand | SONY |
