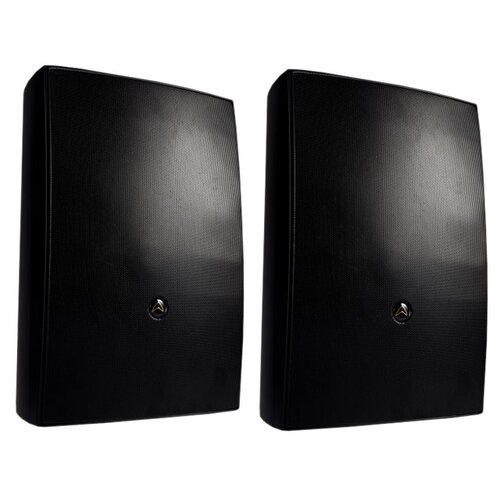

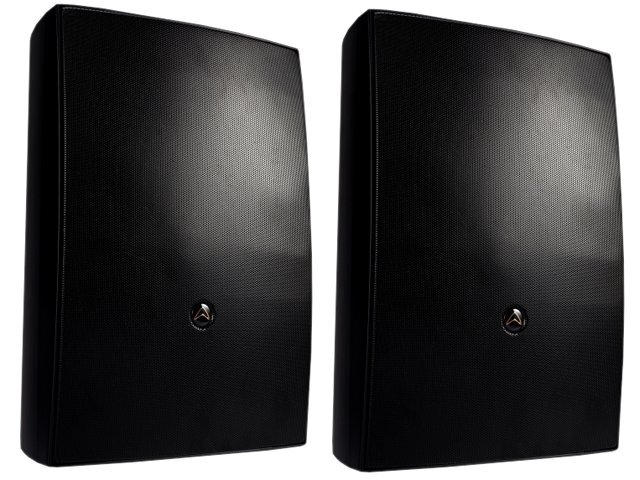

Wharfedale i8 Installation Speaker PAIR 2 way 50w RMS 8 ohm

Wharfedale Installation Speaker PAIR 2 way 50w RMS 8 ohm

i8 and the transformer version - i8T, are two-way high performance loudspeakers specifically designed for distributed music, paging and speech applications.

Each model features a quality 8" low frequency transducer and 1" dome tweeter housed inside a durable ABS enclosure - with a full protective frontal grille.

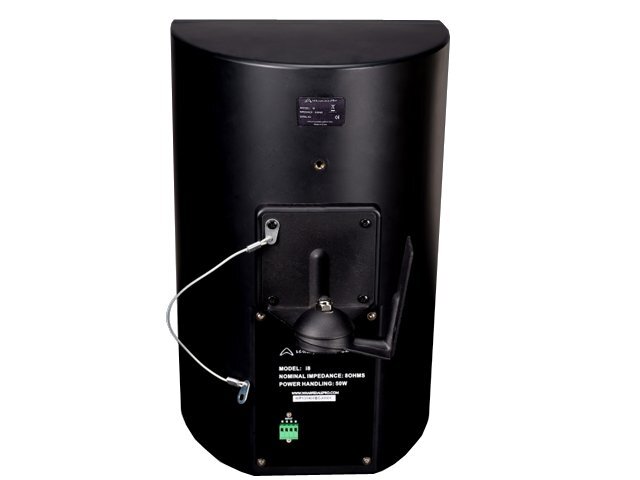

Both models feature Phoenix (Euroblock) input connections for easy on-site wiring, and both models are supplied with a sturdy, adjustable wall mounting bracket.

i8 is a low-impedance 8Ω model and i8T features an internal transformer for use with 70/100V installations.

Specifications

• System type Passive
• Configuration 2-way
• Frequency response (+/-3dB) 70Hz - 20kHz
• Frequency range (-10dB) 50Hz - 20kHz
• Sensitivity (2.83v/1m) 87dB
• Calculated Maximum SPL @1m 110dB
• System rated impedance 8Ω
• Low frequency transducer
• Size 8.0"
• Voice coil size 1.0"
• Rated impedance 8Ω
• LF Power (re:AES2-2012) 50w
• High frequency transducer
• HF driver type Soft dome tweeter
• Voice coil size 1.0"
• Diaphragm material Silk
• Rated impedance 4Ω
• HF Power (re:AES2-2012) 10w
• Nominal Coverage (H x V) 130° x 180°
• System continuous power 50w
• System programme power 100w
• System peak power 200w
• i8T : 70v : 12.5w / 25w / 50w
• i8T : 100v : 25w / 50w
• Crossover frequency 2.0kHz
• Input connector Phoenix terminals
• Wall mount brackets included
Shipping Volume: .12cbm
Shipping Weight: 6kg

Warranty: 12 Months
