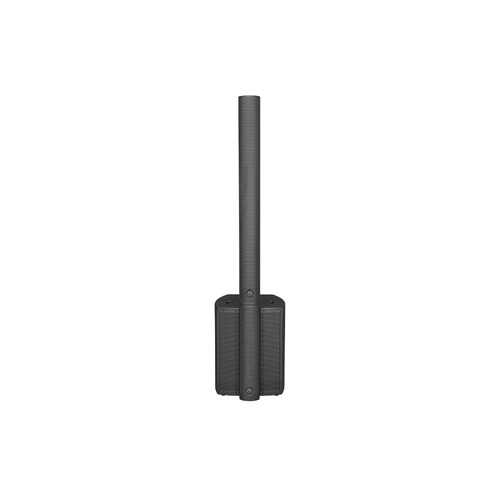

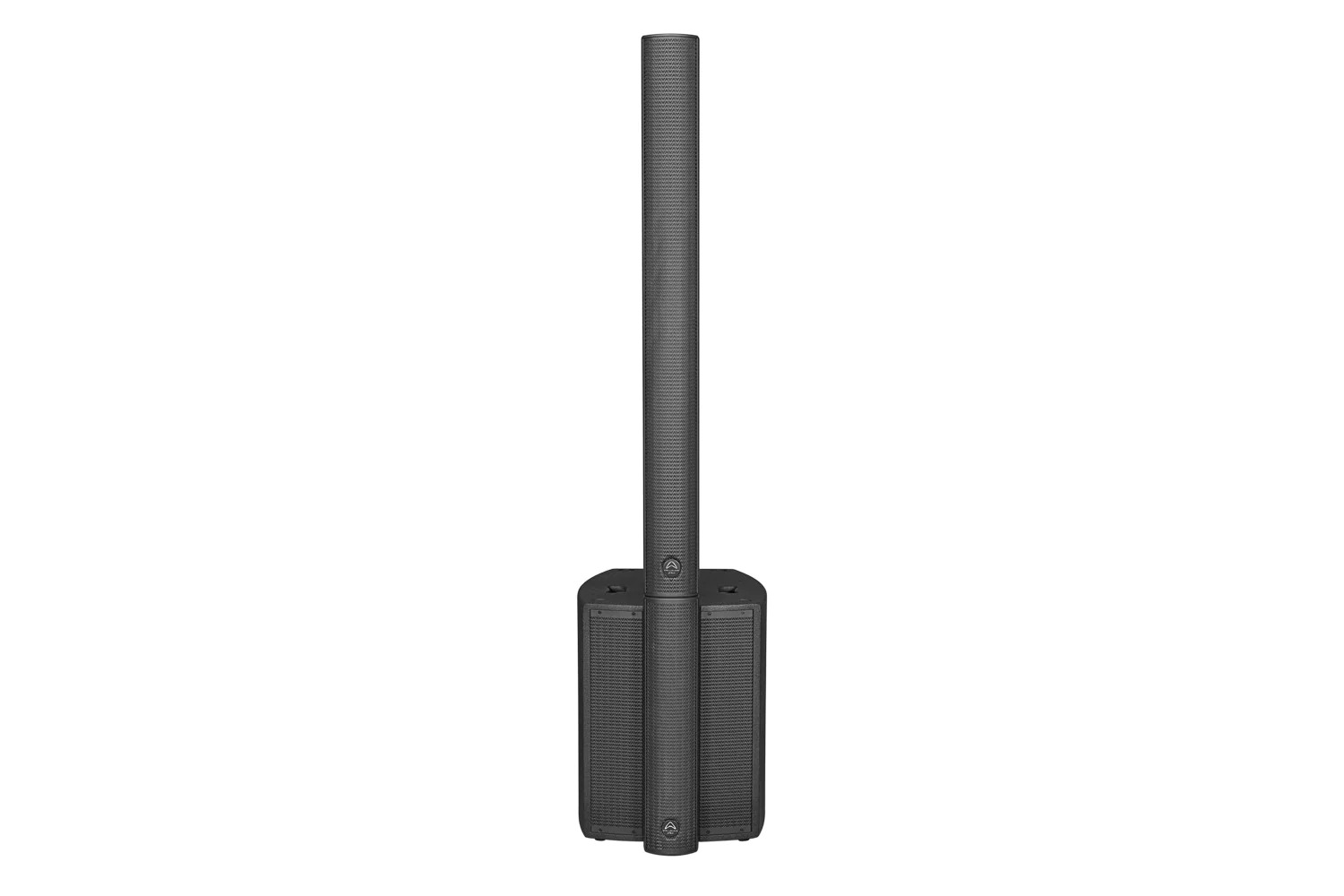

Wharfedale Pro ISOLINE-AX912 Active Column PA System
SHIPS DIRECTLY FROM SUPPLIER
ACTIVE COLUMN PA SYSTEMS
- Bluetooth input
- TWS linking
- Internal 2-channel mixer
- Internal USB mp3 player
- Direct coupling between sub, base and column
ISOLINE-AX912
- 12.0” subwoofer
- 9 x 3.0” wide-range drivers
- 2 x 1.0” HF Compression drivers
- 2 x mini EVO-Fold waveguides
- 1200 W Continuous
- 2400 W Peak
About the ISOLINE_AX Series
Discrete and punchy – Portable and practical!
A self-contained live sound solution for live performance. The hardest choice to make is….. ‘which model’?
‘Practicality’ was a key goal for the design team. To make an active system with features that make setups and break-downs easy. The column uses direct coupling to make connection fast. The column itself is also rotatable by +15% / -15% to ensure the output really covers the audience.
With microphone, line, USB-drive and Bluetooth inputs, the system also reduces the need for an external mixer. In addition, two ISOLINE-AX arrays can be paired wirelessly using TWS technology. Importantly, the latest HF technology has been deployed and BOTH ISOLINE-AX models feature a mini EVO-Fold waveguide ‘evolved’ from the incredible WLA-1 Hybrid Curvature Array system.

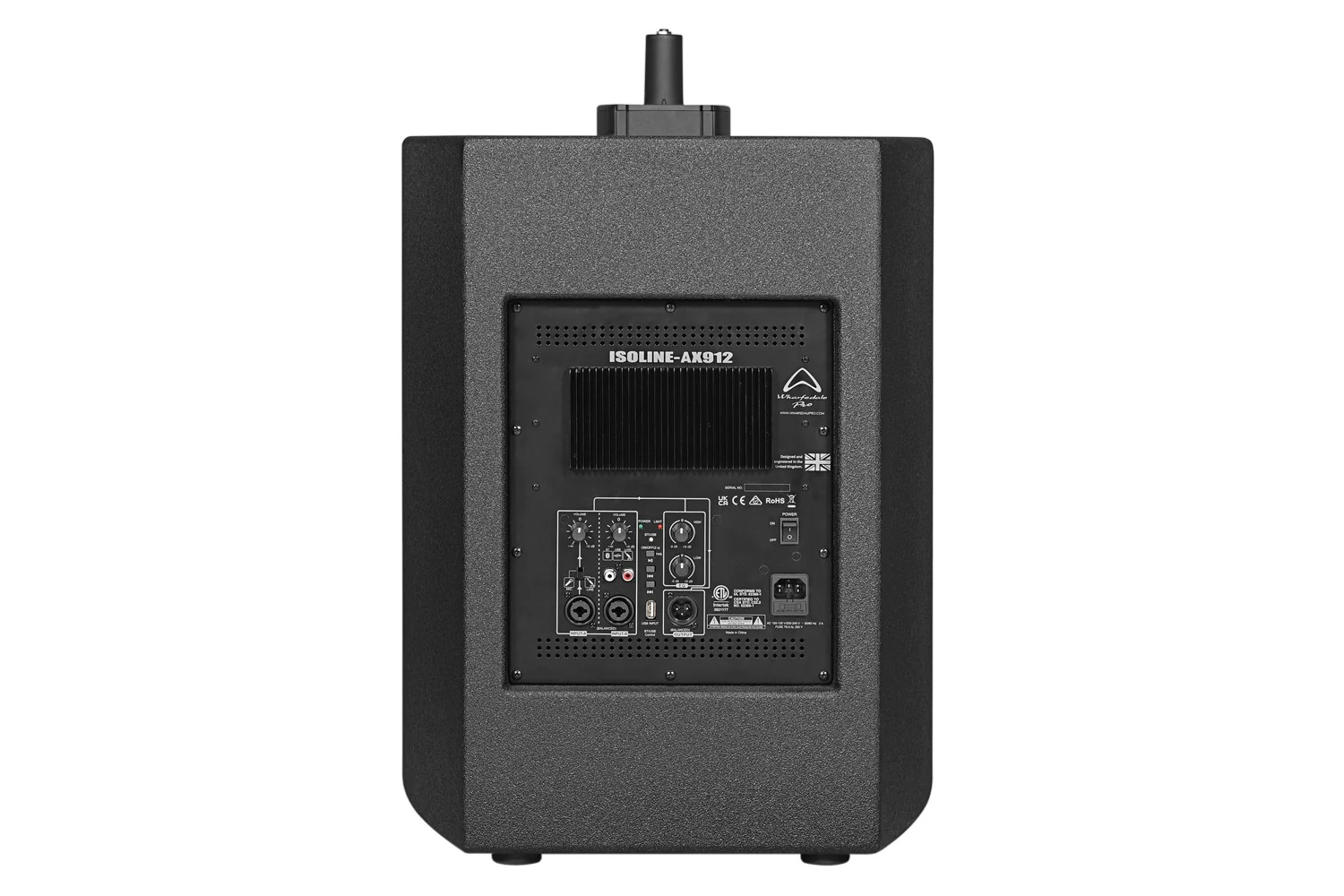

AROUND THE BACK
Built into the subwoofer are the inputs and controls.
A 2-channel mixer for mic and line inputs allows for quick and easy connection. A central USB input allows for files to be played back from USB storage devices and Bluetooth input can be controlled from here too!
Practical High and Low EQ knobs also give +9 dB / -9 dB of control to allow an ISOLINE-AX to be tuned to the performance environment.
TWIST 'N SHOUT

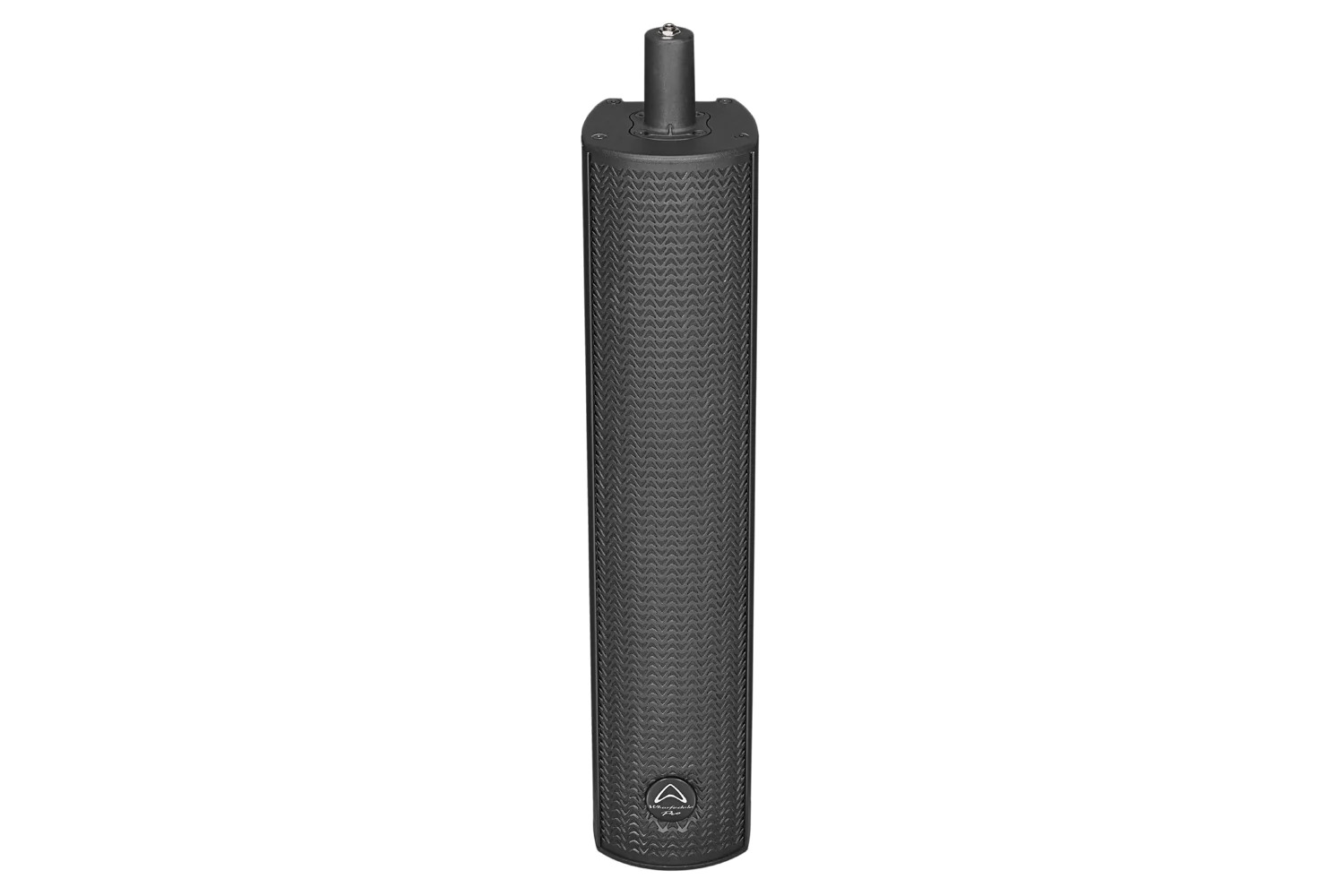

The column containing the wide-range drivers and HF compression drivers can easily be rotated. by + 15° / -15° which allows you to direct the system fully towards the audience.
PLYWOOD SUBS
ISOLINE-AX subwoofers are constructed using our baltic birch plywood. This ensures physical stability of the enclosure, even at maximum power.
MINI EVO-FOLD WAVEGUIDES
Mini EVO-Fold waveguides ensure system phase coherence. These highly engineered waveguides come from our incredible WLA-1 line array system.
ISOLINE-AX912 has two, and ISOLINE-AX510 has one mini EVO-Fold waveguide which are directly coupled to the HF compression driver / drivers.
The EVO-Fold combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
LETS MAKE THIS EASY

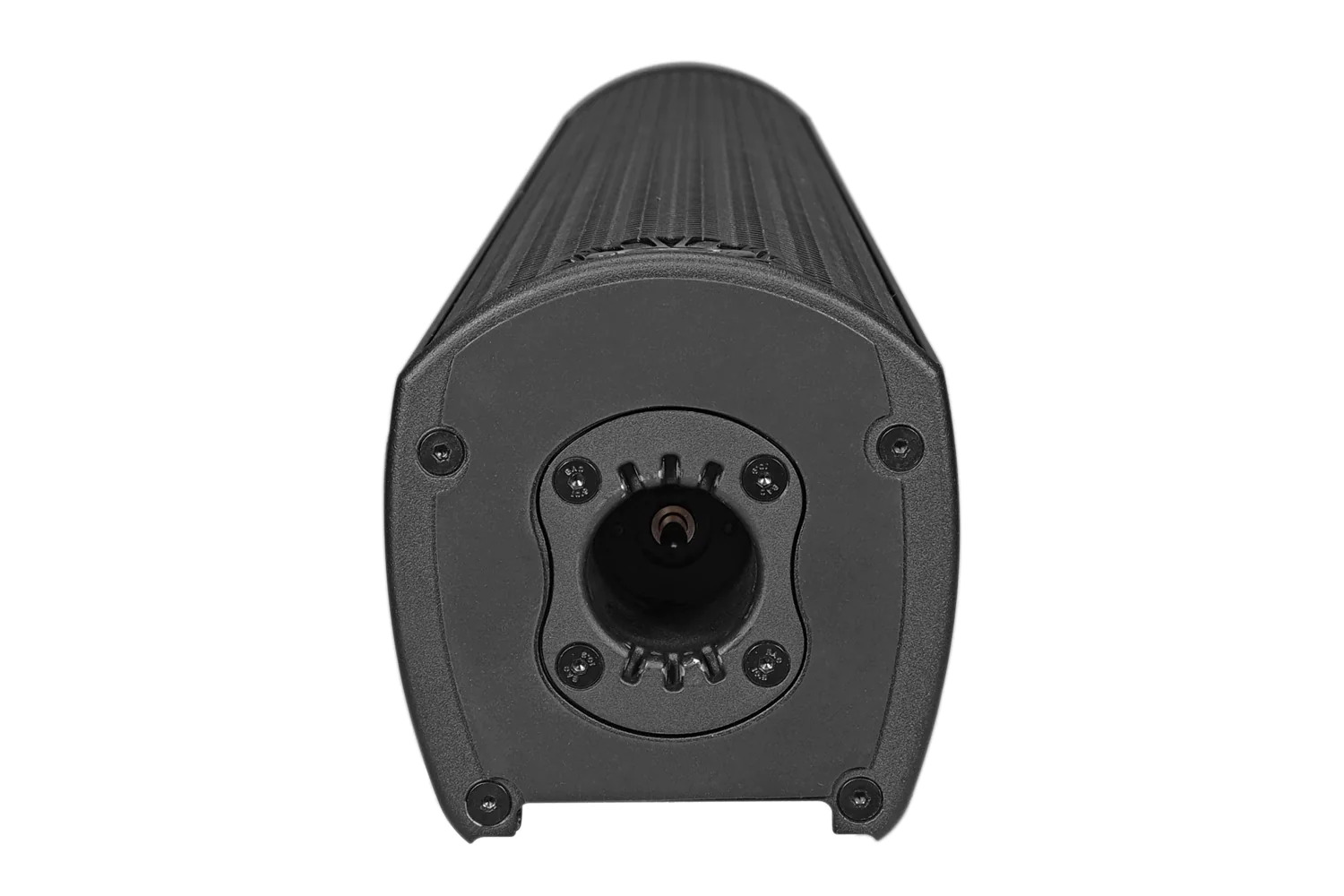

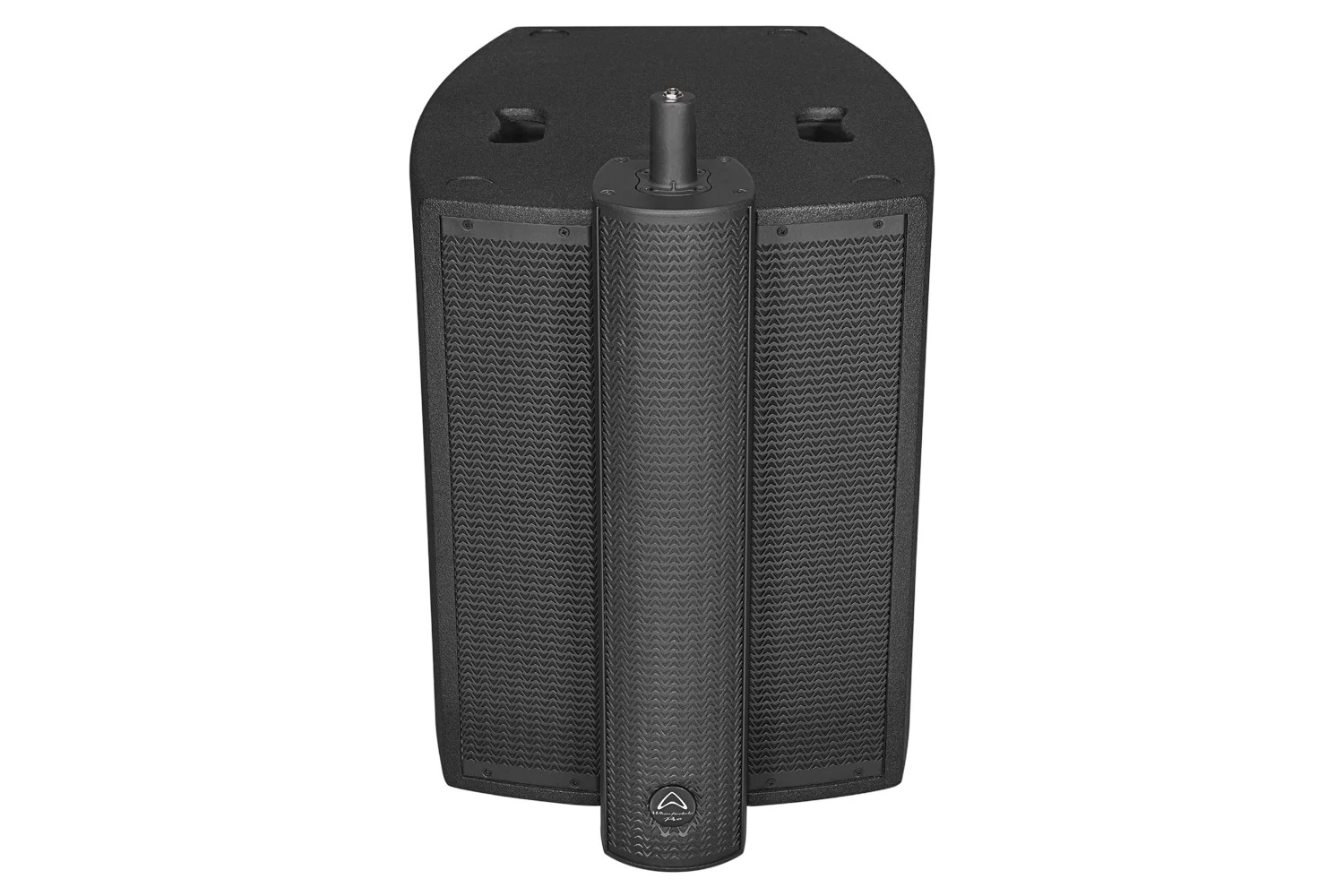

ISOLINE-AX has been engineered to ‘make things easy’. Connect the subwoofer to the base. Lower the column onto the base. Easy.
ABOUT THE CLARITY
The HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to the mini EVO-Fold waveguide resulting in 120° x 30° dispersion (ISOLINE-AX912) and 100° x 20° (ISOLINE-AX510)
SPECIFICATIONS
| Model Name | ISOLINE-AX912 |
|---|---|
| System Type | Active |
| Frequency Response (+/-3 dB) | 40 Hz-20 KHz |
| Frequency Range (-10 dB) | 35 Hz-20 KHz |
| Sensitivity Maximum SPL @1m | 129 dB |
| Transducers | |
| Low Frequency Transducer | |
| Size ( mm / inches) | 305 mm / 12” |
| Coil Size ( mm / inches) | 51.3 mm / 2″ |
| Impedance | 4 Ω |
| Column Transducer | |
| Type | 9 x 3″ Wide-band Drivers |
| Coil Size ( mm / inches) | 32.5 mm / 1.3″ |
| Type | 2 x 1″ High Frequency drivers |
| Waveguide Type | EVO-Fold |
| Coil Size ( mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Impedance | 4 Ω |
| Nominal Coverage (H x V) | 120° x 20° |
| Electronics | |
| Amplifiers [footnote] | |
| Low-Frequency Power Amplifier RMS/Peak Watts | 600/1200 W |
| High-Frequency Power Amplifier RMS/Peak Watts | 600/1200 W |
| Amplifier Class | Class D |
| Controls—D-EQ | ±9 dB |
| Amplifier Protection | Yes |
| Power On Protection | Yes |
| Thermal Protection | Yes |
| Low Line Voltage Shut Down | Yes |
| Driver Protection | Independent LF/HF Limiters |
| DC Protection | Yes |
| Short Protection | Yes |
| Clip Limiter | Yes |
| Limiter Indicator | LED |
| Power Indicator | LED |
| Subwoofer to Column | 2 x speakON |
| Connectors | |
| Inputs | |
| Input Sensitivity | Switchable balanced mic or line level input |
| Input A (Line / Mic Balanced) | Mic: -40 dBu Line: 0 dBu |
| Input B (Line / RCA / USB / Bluetooth) | 0 dB |
| Maximum Input Level | 10 dBu |
| Input Connector | 2 x XLR Jack Combi, RCA |
| Input Impedance | Balanced:20 KΩ Unbalanced:10 KΩ |
| Input A (Line / Mic Balanced) | 22 kΩ Balanced and 11 kΩ Unbalanced |
| Input B (Line / RCA / USB / Bluetooth) | 22 kΩ Balanced and 11 kΩ Unbalanced |
| Maximum Input Level | 10 dBu |
| Line Output Connector | Socket XLR |
| Impedance Balanced | Balanced: 50 Ω Unbalanced:100 Ω |
| Loop Gain | Line:36 dB |
| AC Power details | |
| Power Supply | High Efficiency Switching Dual Mode Power Supply |
| AC Power Options | AC100-120 V~/200-240 V~,50/60 Hz |
| Power On Indicator | Limiter Indicator: Red LED Power Indicator: Green LED Bluetooth Pairing: Blue LED |
| Enclosure(Subwoofer) | |
| Enclosure Material and finish | Subwoofer Plywood cabinet,resistant black paint,metal grille,rubber feet handles/ Column aluminum cabinet |
| Colour Options | Black |
| Grille Material & Finish | Steel |
| Dimensions and Weight | |
| Dimensions – Unpacked ( mm / inches): | |
| Column (HxWxD) | 1210x126x145 mm/47.64″ x4.96″ x5.71 “ |
| Base Column (HxWxD) | 590x126x145 mm/23.3″ x 4.96″ x5.71 “ |
| Subwoofer (HxWxD) | 559x454x576.1 mm /22″x17.87″x22.68″ |
| Dimensions – Packed ( mm / inches): | |
| Column + Base + speakON Cable (HxWxD) | 1280x385x210 mm/50.4″ x15.2″ x8.27″ |
| Subwoofer(HxWxD) | 634x530x650 mm /24.96″x20.87″x25.59″ |
| Weight | |
| Column Net Weight (kg / lbs) | 10.5 kg / 23.1 lbs |
| Base Net Weight (kg / lbs) | 4.3 kg / 9.46 lbs |
| Column + Base + speakON Cable Net /Gross Weight (kg / lbs) | 15.3 kg/ 17.5 kg / 33.7 lbs/ 38.5 lbs |
| Subwoofer Net /Gross/ Weight (kg / lbs) | 31.0 kg /34.3 kg/ 68.2 lbs/75.46 lbs |
(ISOLINE-AX912)
| SKU | ISOLINE-AX912 |
| Brand | Wharfedale |
