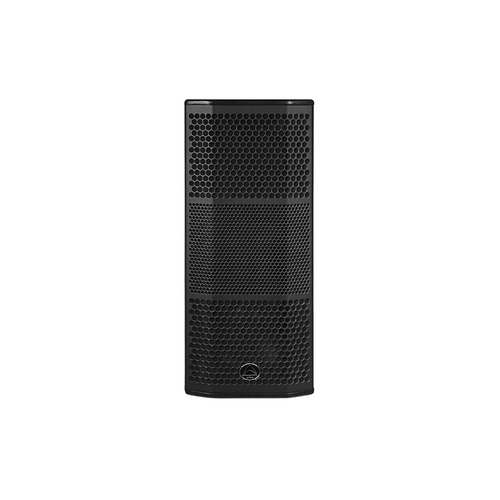

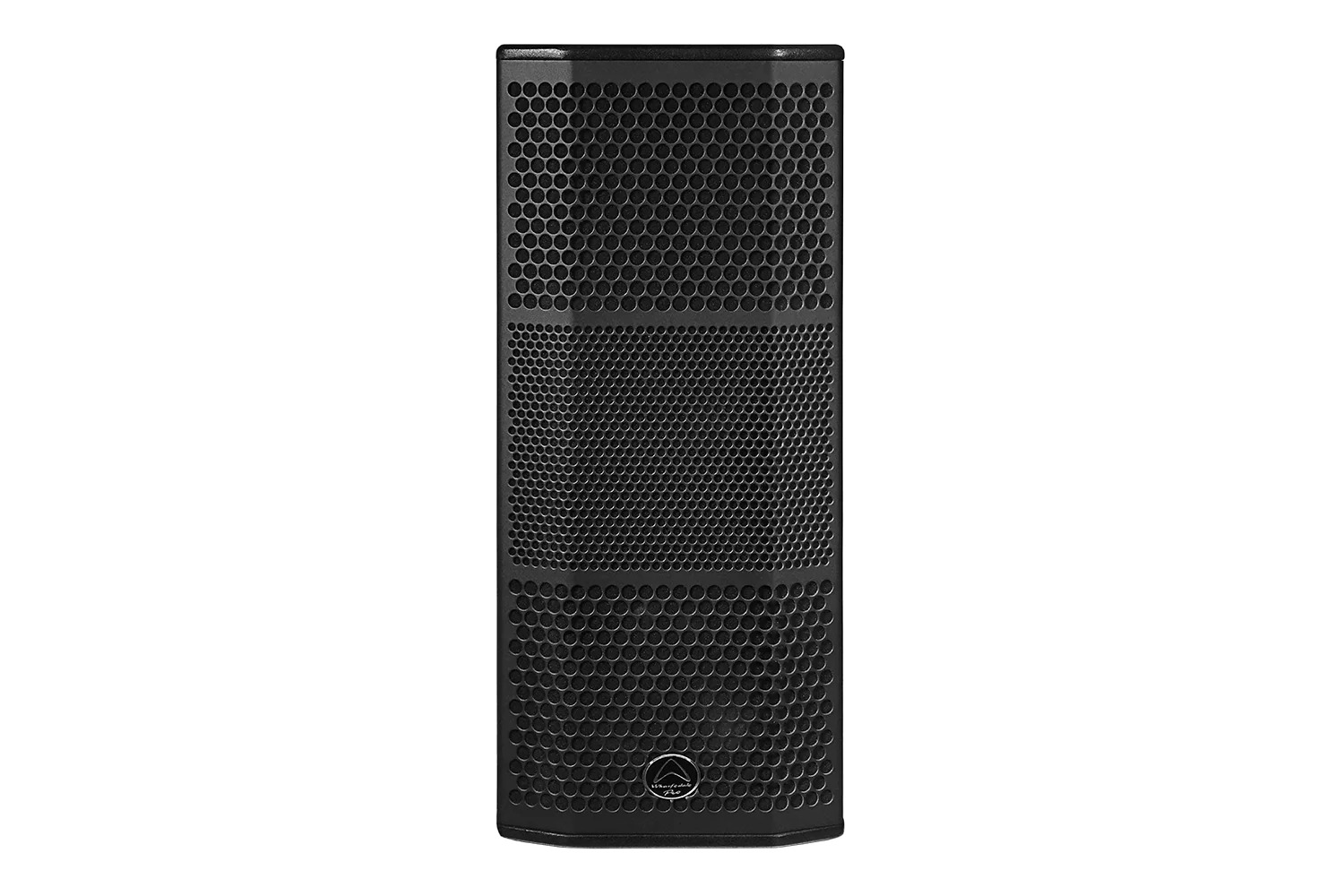

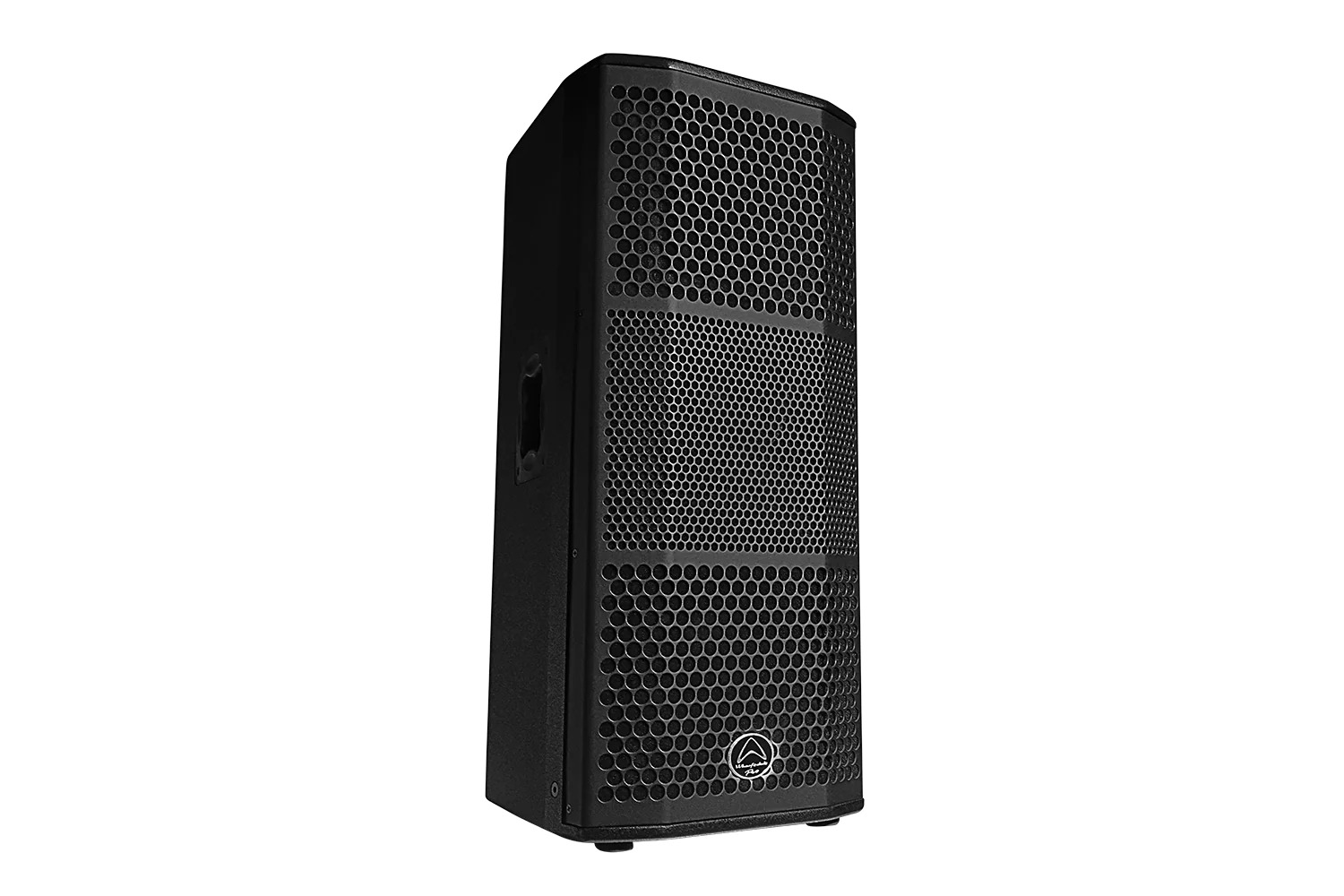

Wharfedale Pro Reason-X12 Passive Loudspeaker
SHIPS DIRECTLY FROM SUPPLIER TO THE CUSTOMER
3-way passive PA with huge 18″ subwoofers
- 12” and 15” full range 3-way models
- All new Z38 PE HF Compression drivers
- 8.0” mid range
- 3.0” LF coils with φ190mm ferrite magnets
- 2 models of 18” Sub-sub-woofers
- NOMEX subwoofer spiders
- Premium baltic birch construction
- Dust proof foam behind front grilles
Reason-X12
- 12″ 3-way passive loudspeaker
- All new Z38 PE HF compression driver
- 8.0″ mid range driver
- 12″ LF driver with 3.0″ voice coil
- 500 watts AES (RMS)
- 1000 watts Programme
- 2000 watts Peak
- 131 dB Max SPL @ 1 meter
NEW SUBWOOFER DRIVER
The driver inside the Reason-X subwoofer has some very special features.
∮102.6 diameter voice coil.
(Thats OVER 4.0″ but we say 4.0″ because of number rounding)
Double-layer spider bonding.
Updated mute glue is used. This bonding can eliminate brittle cracking and reduces harmonic distortion.
112 g Membrane.
The Reason-X subwoofer driver has a heavier membrane which can withstand more power without breaking.
31 mm voice coil cavity.
A larger internal cavity for the coil windings allows Reason-X to have lower response by 5 Hz.
6.2 ohm impedance.
The impedance peak is higher in the Reason-X driver at 35 Hz. This results in superior low end strength.
Z38
The full range models (X12 and X15) feature an all-new Polyethylene flat diaphragm neodymium HF. This highly engineered Z38 HF compression driver brings extreme HF clarity.
Enormous cooling fins disperse the heat generated and the unique 1.5 inch ring-shaped polyethylene flat diaphragm delivers a precious feeling of space and air to high frequencies.
Advanced HF compression driver technology which deliveries breathtaking results.
ROTATABLE WAVEGUIDE
A handy feature is the rotatable waveguide which allows Reason-X full range models to be used in the vertical or horizontal plane.
100° x 70°
OR
70° x 100° – the Horizontal and Vertical dispersion can easily be changed.
3-WAY DESIGN
With dedicated drivers for each of the main bandwidths, 3-way systems bring enhanced frequency definition to the listening experience.
Each driver focused solely on its optimum frequency range.
A big picture!
Enjoy the 3-way space and definition !
|
Model Name |
Reason-X12 |
|
System Type |
Passive |
|
Configuration |
Three-way |
|
Frequency Response (+/-3 dB) |
55-20 KHz |
|
Frequency Range (-10 dB) |
50-20 KHz |
|
Sensitivity 2.83 V / 1 Meter |
98 |
|
Calculated Maximum SPL @1 Meter |
131 dB |
|
System Rated Impedance |
8 Ω |
|
Low Frequency Transducer |
|
|
Size |
332 mm / 12” |
|
Voice Coil Size |
75 mm / 3.0” |
|
LF Magnet Material |
ferrite |
|
LF Frame Material |
Aluminium |
|
Rated Impedance |
8 Ω |
|
LF Power re:AES2-2012 |
400 W |
|
Mid Frequency Transducer |
|
|
Size |
203.8 mm / 8” |
|
Voice Coil Size |
50.8 mm / 2.0” |
|
MF Magnet Material |
ferrite |
|
MF Frame Material |
Aluminium |
|
Rated Impedance |
8 Ω |
|
MF Power re:AES2-2012 |
100 W |
|
High Frequency Transducer |
|
|
HF Driver Type |
Compression Driver |
|
Coil Size (mm / inches) |
38 mm / 1.5″ |
|
Exit Size (mm / inches) |
25 mm / 1″ |
|
HF Magnet Material |
NdFeB |
|
Diaphragm Material |
PEN |
|
Rated Impedance |
8 Ω |
|
HF Power re:AES2-2012 |
40 W |
|
Waveguide Type |
square |
|
Nominal Coverage (H x V) |
100 x 70 |
|
Nominal Impedance |
8 Ω |
|
Power |
|
|
System AES (RMS) Power (W) |
500 W |
|
System Programme Power (W) |
1000 W |
|
System Peak Power (W) |
2000 W |
|
Crossover Frequency |
800 Hz / 2.7 KHz |
|

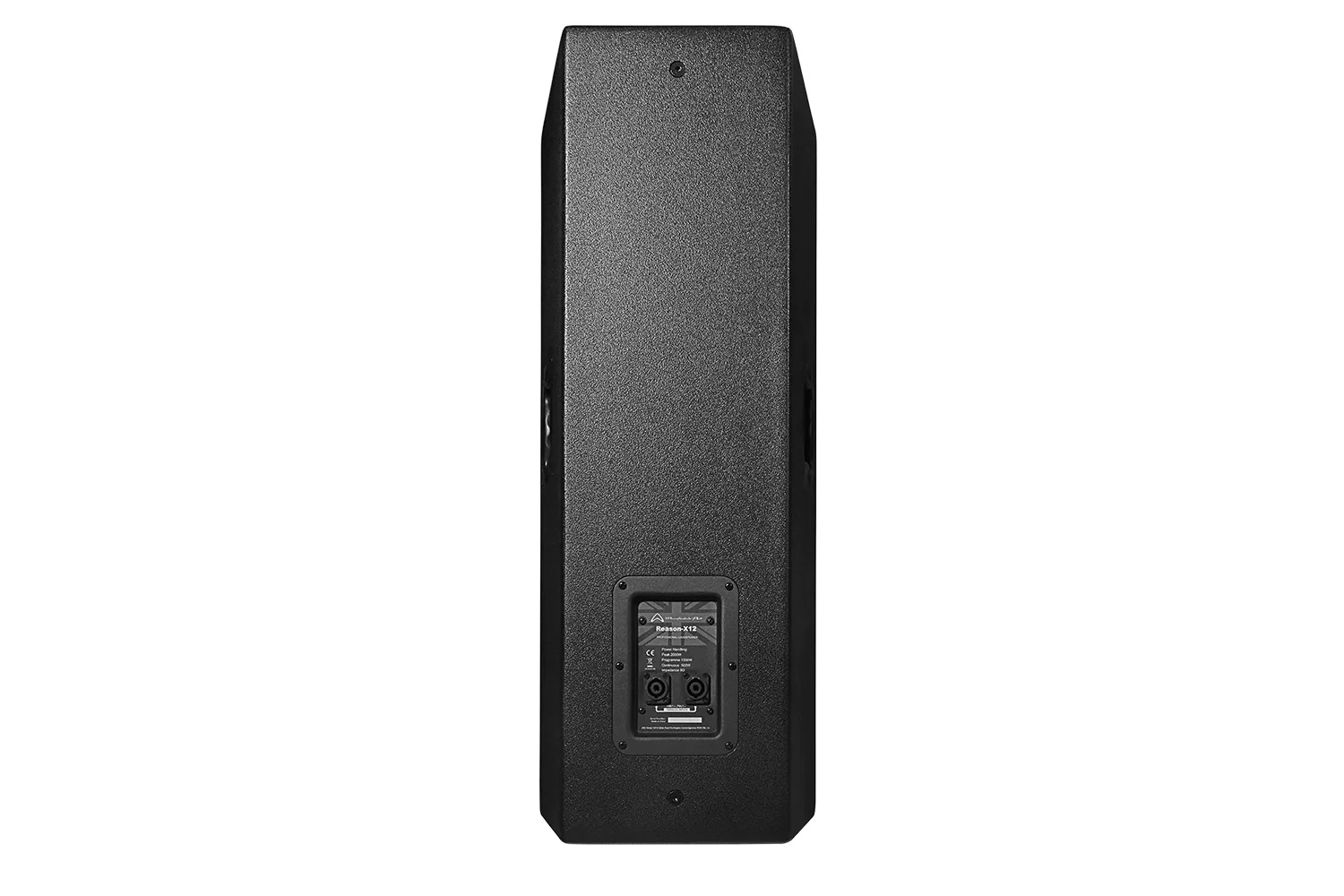

Input Connector |
2 x speakON compatible |
|
Rigging |
M8 x 12 |
|
Handles |
2 on Sides |
|
Enclosure |
35 mm pole socket |
|
Cabinet Type |
Trapezoid |
|
Enclosure Material and finish |
15 mm plywood |
|
Colour Options |
Black paint |
|
Grille Material & Finish |
Steel |
|
Dimensions – Unpacked (mm / inches): |
|
|
Height |
814 mm / 32.0″ |
|
Width Front |
350 mm / 13.8″ |
|
Width Rear |
231 mm / 9.1″ |
|
Depth |
410 mm / 16.1″ |
|
Dimensions – Packed (mm / inches): |
|
|
Height |
909 mm /35.8″ |
|
Width Front |
500 mm /19.7″ |
|
Width Rear |
500 mm /19.7″ |
|
Depth |
440 mm /17.3″ |
|
Weight |
|
|
Net Weight |
29.0 kg / 63.8 lbs |
|
Gross Weight |
33.7 kg / 74.2 lbs |
(REASON-X12)
| SKU | REASON-X12 |
| Brand | Wharfedale |
