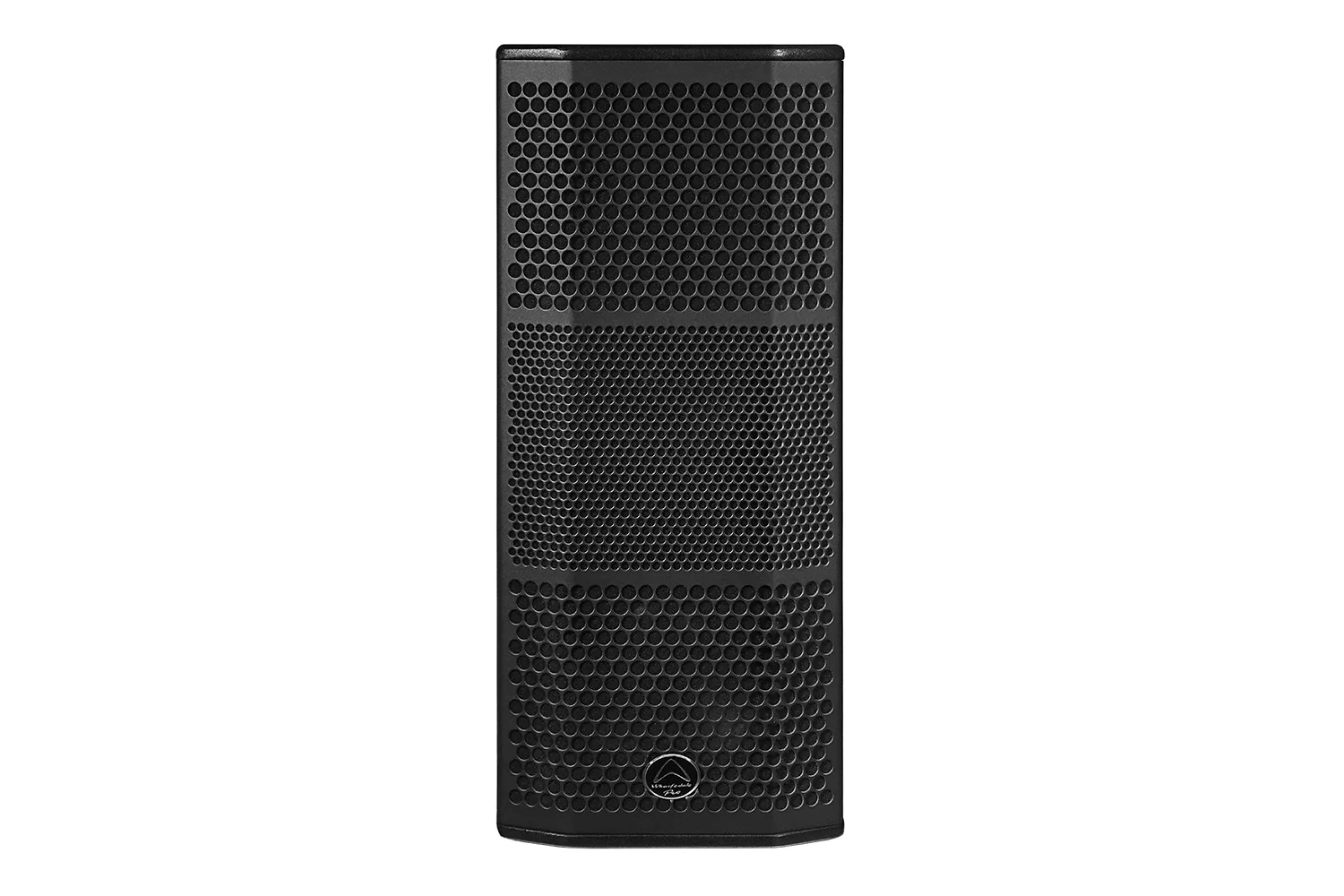

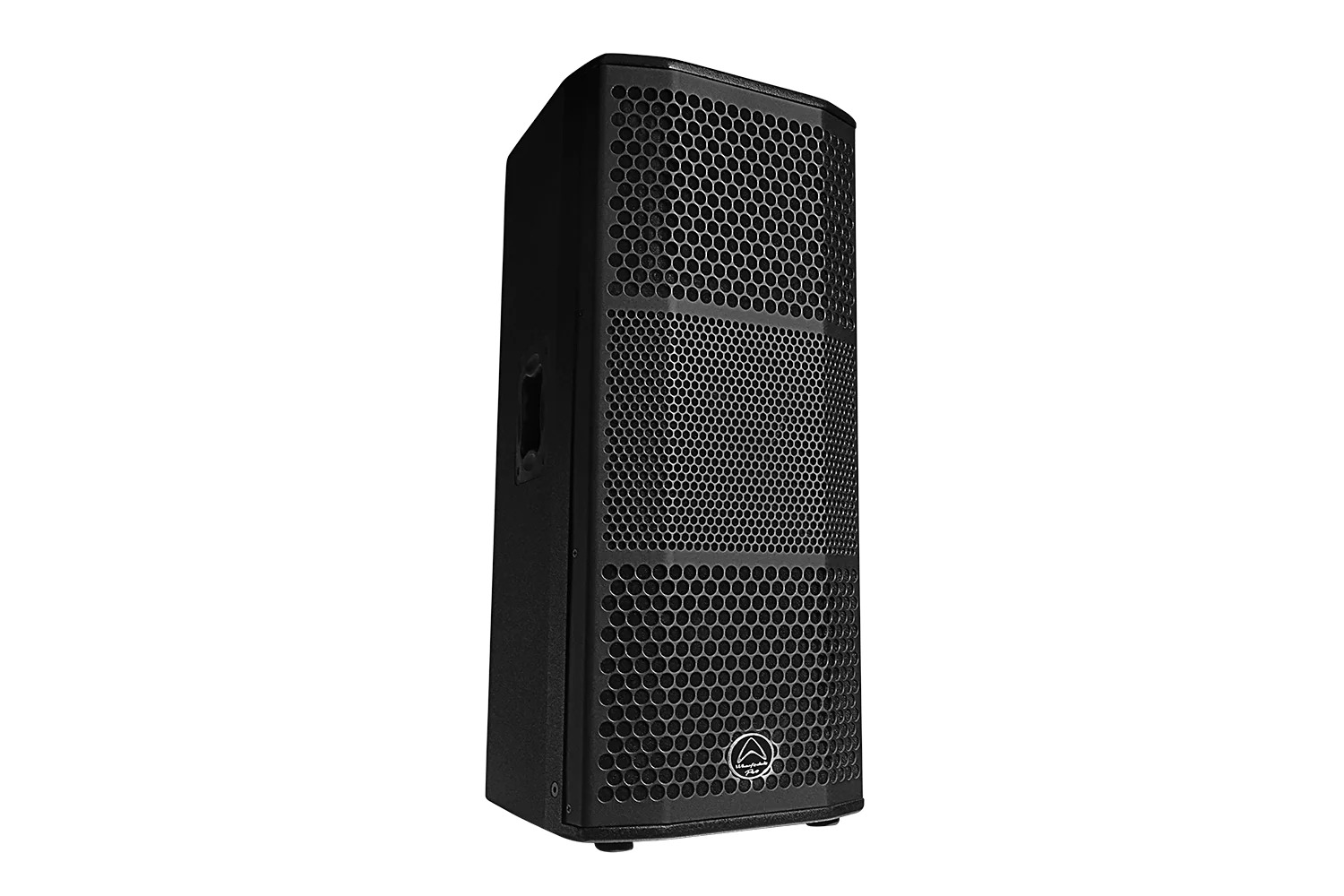

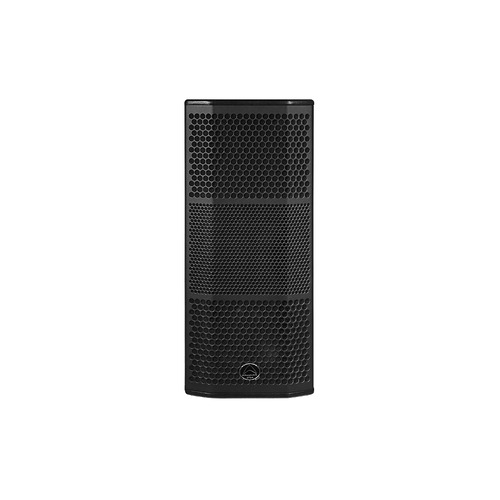

Wharfedale Pro Reason-X15 Passive Loudspeaker
SHIPS DIRECTLY FROM SUPPLIER TO THE CUSTOMER
3-way passive PA with huge 18″ subwoofers
- 12” and 15” full range 3-way models
- All new Z38 PE HF Compression drivers
- 8.0” mid range
- 3.0” LF coils with φ190mm ferrite magnets
- 2 models of 18” Sub-sub-woofers
- NOMEX subwoofer spiders
- Premium baltic birch construction
- Dust proof foam behind front grilles
Reason-X15
- 15″ 3-way passive loudspeaker
- All new Z38 PE HF compression driver
- 8.0″ mid range driver
- 15″ LF driver with 3.0″ voice coil
- 600 watts AES (RMS)
- 1200 watts Programme
- 2400 watts Peak
- 133 dB Max SPL @ 1 meter
NEW SUBWOOFER DRIVER
The driver inside the Reason-X subwoofer has some very special features.
∮102.6 diameter voice coil.
(Thats OVER 4.0″ but we say 4.0″ because of number rounding)
Double-layer spider bonding.
Updated mute glue is used. This bonding can eliminate brittle cracking and reduces harmonic distortion.
112 g Membrane.
The Reason-X subwoofer driver has a heavier membrane which can withstand more power without breaking.
31 mm voice coil cavity.
A larger internal cavity for the coil windings allows Reason-X to have lower response by 5 Hz.
6.2 ohm impedance.
The impedance peak is higher in the Reason-X driver at 35 Hz. This results in superior low end strength.
Z38
The full range models (X12 and X15) feature an all-new Polyethylene flat diaphragm neodymium HF. This highly engineered Z38 HF compression driver brings extreme HF clarity.
Enormous cooling fins disperse the heat generated and the unique 1.5 inch ring-shaped polyethylene flat diaphragm delivers a precious feeling of space and air to high frequencies.
Advanced HF compression driver technology which deliveries breathtaking results.
ROTATABLE WAVEGUIDE
A handy feature is the rotatable waveguide which allows Reason-X full range models to be used in the vertical or horizontal plane.
100° x 70°
OR
70° x 100° – the Horizontal and Vertical dispersion can easily be changed.

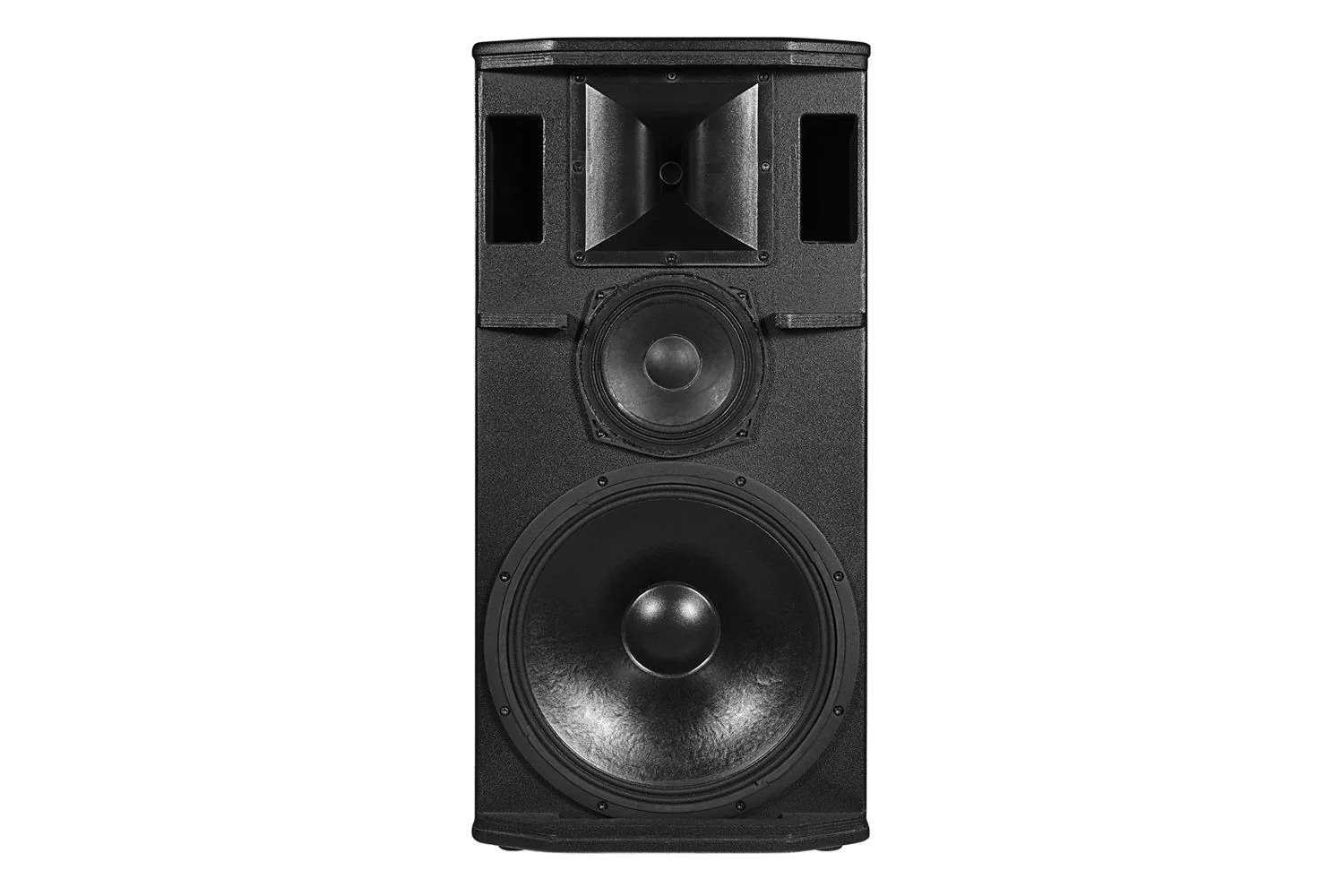

3-WAY DESIGN
With dedicated drivers for each of the main bandwidths, 3-way systems bring enhanced frequency definition to the listening experience.
Each driver focused solely on its optimum frequency range.
A big picture!
Enjoy the 3-way space and definition !
| Model Name | Reason-X15 |
|---|---|
| System Type | Passive |
| Configuration | Three-way |
| Frequency Response (+/-3 dB) | 45-20 KHz |
| Frequency Range (-10 dB) | 40-20 KHz |
| Sensitivity 2.83 V / 1 Meter | 99 |
| Calculated Maximum SPL @1 Meter | 133 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 404 mm / 15” |
| Voice Coil Size | 75 mm / 3.0” |
| LF Magnet Material | ferrite |
| LF Frame Material | Aluminium |
| Rated Impedance | 8 Ω |
| LF Power re:AES2-2012 | 500 W |
| Mid Frequency Transducer | |
| Size | 203.8 mm / 8” |
| Voice Coil Size | 50.8 mm / 2.0” |
| MF Magnet Material | ferrite |
| MF Frame Material | Aluminium |
| Rated Impedance | 8 Ω |
| MF Power re:AES2-2012 | 100 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 38 mm / 1.5″ |
| Exit Size (mm / inches) | 25 mm / 1″ |
| HF Magnet Material | NdFeB |
| Diaphragm Material | PEN |
| Rated Impedance | 8 Ω |
| HF Power re:AES2-2012 | 40 W |
| Waveguide Type | square |
| Nominal Coverage (H x V) | 100 x 70 |
| Nominal Impedance | 8 Ω |
| Power | |
| System AES (RMS) Power (W) | 600 W |
| System Programme Power (W) | 1200 W |
| System Peak Power (W) | 2400 W |
| Crossover Frequency | 800 Hz / 2.7 KHz |

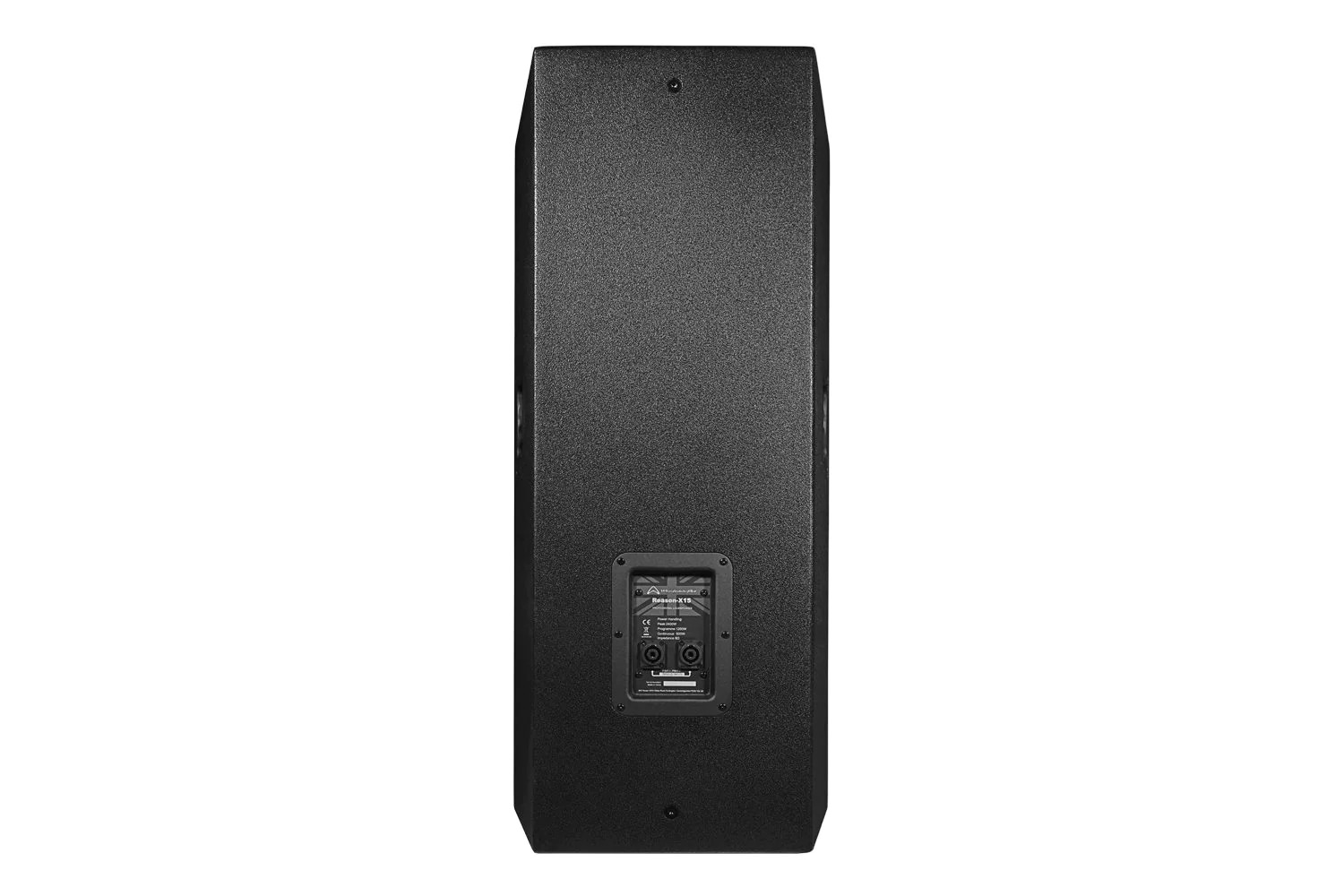

| Input Connector | 2 x speakON compatible |
| Rigging | M8 x 12 |
| Handles | 2 on Sides |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 15 mm plywood |
| Colour Options | Black paint |
| Grille Material & Finish | Steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 883 mm / 34.8″ |
| Width Front | 430 mm / 16.9″ |
| Width Rear | 298 mm / 11.7″ |
| Depth | 455 mm / 17.9″ |
| Dimensions – Packed (mm / inches): | |
| Height | 978 mm /38.5″ |
| Width Front | 545 mm /21.5″ |
| Width Rear | 545 mm /21.5″ |
| Depth | 520 mm/20.5″ |
| Weight | |
| Net Weight | 32.5 kg / 71.5 lbs |
| Gross Weight | 37.5 kg / 82.5 lbs |
(REASON-X15)
| SKU | REASON-X15 |
| Brand | Wharfedale |
