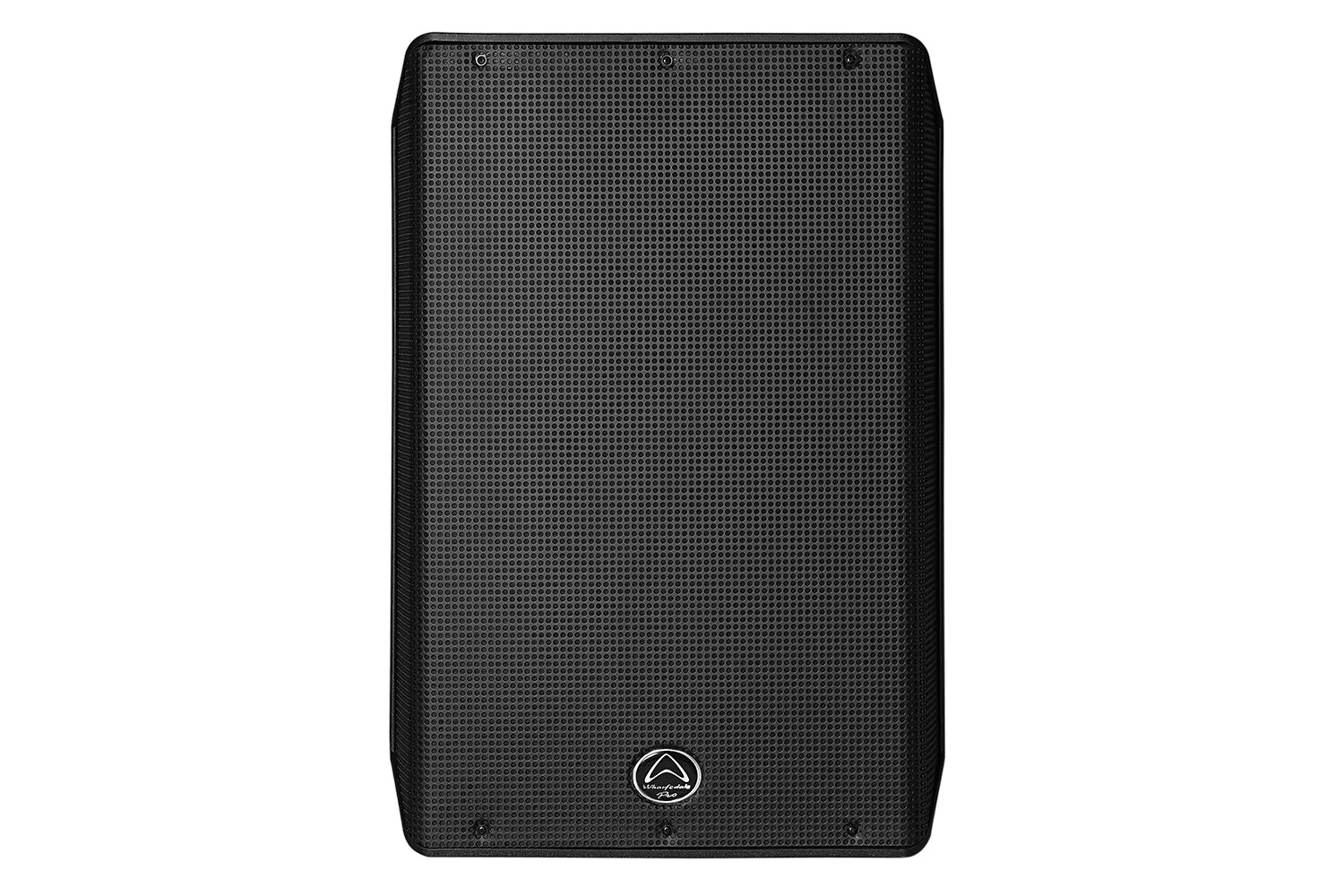

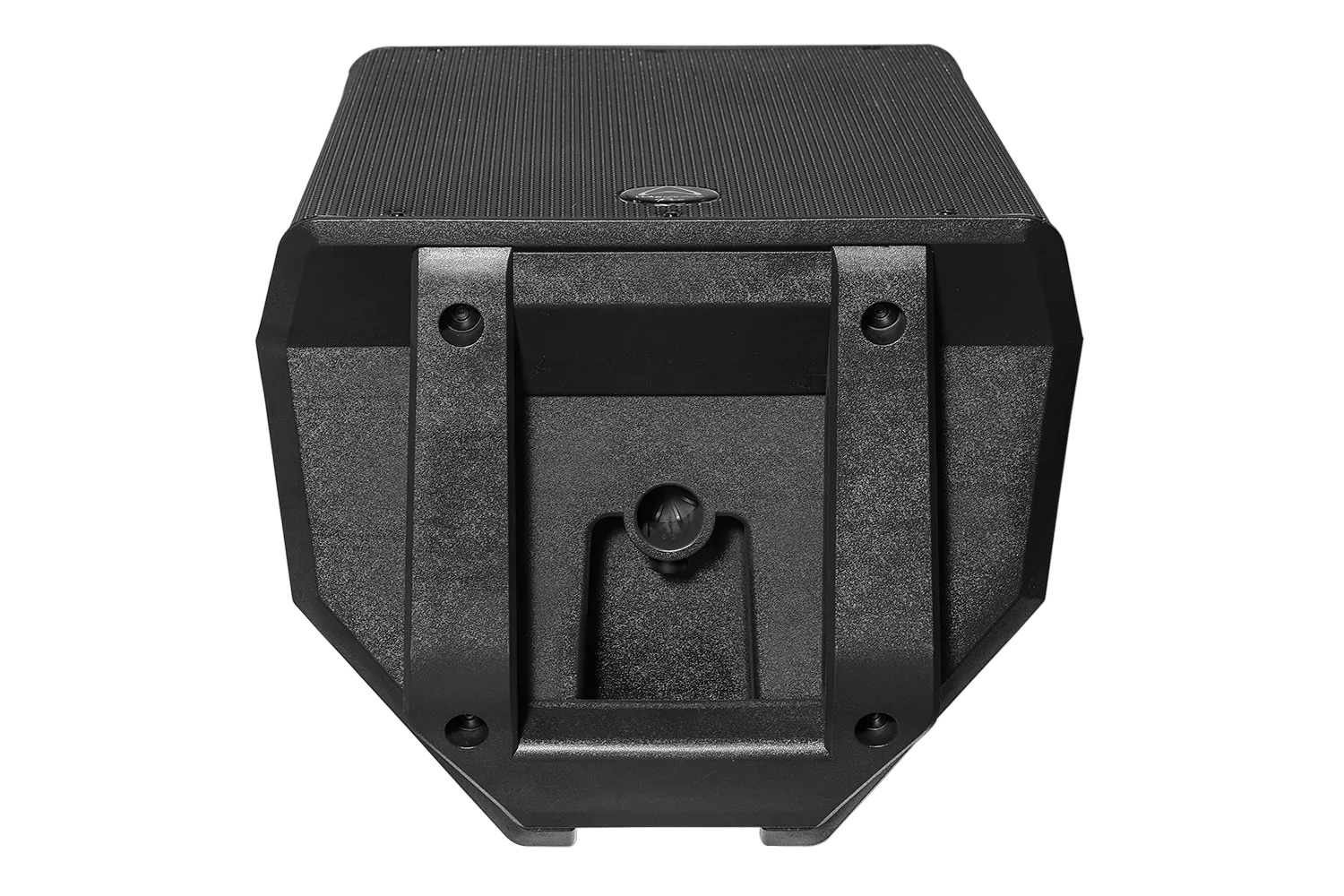

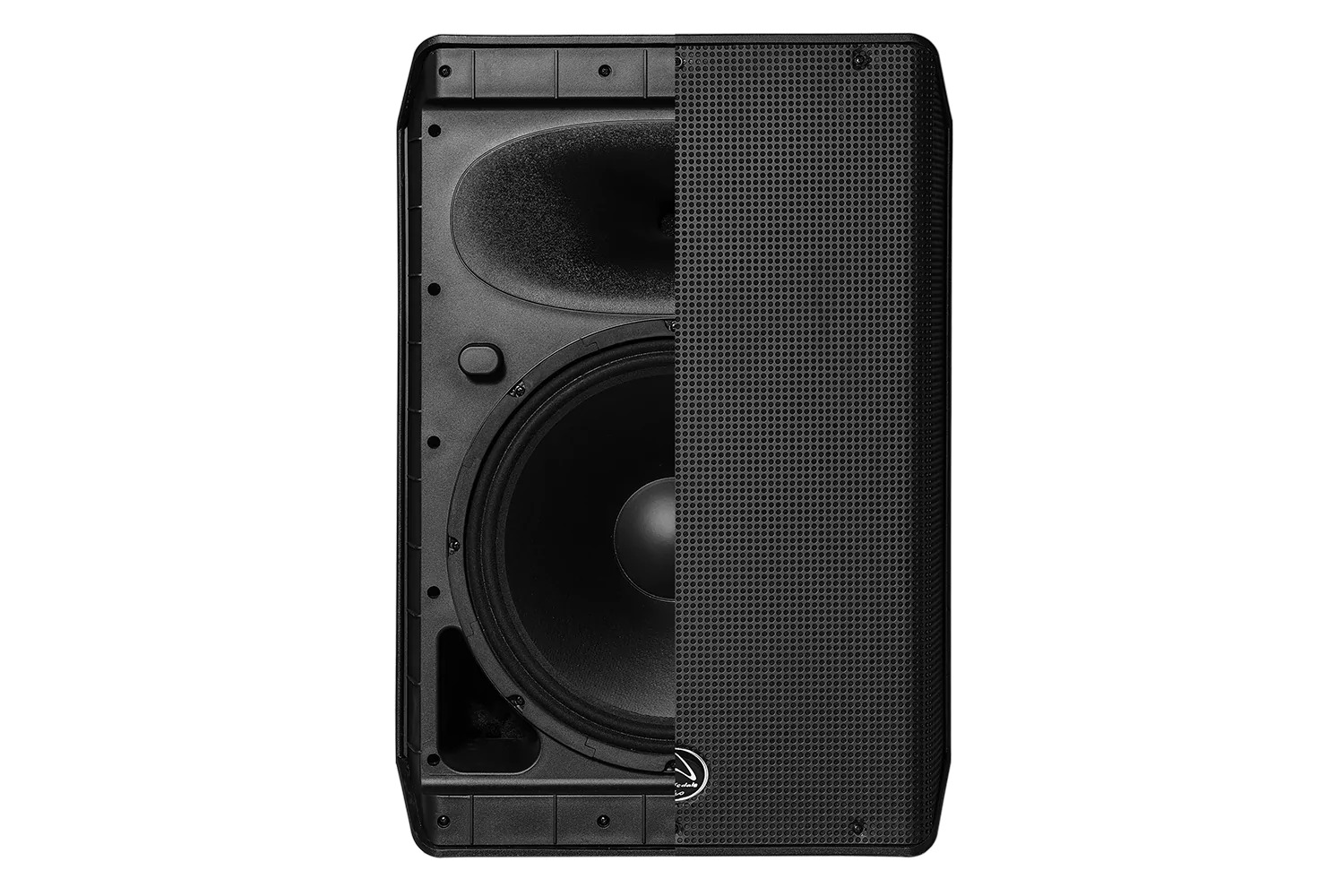

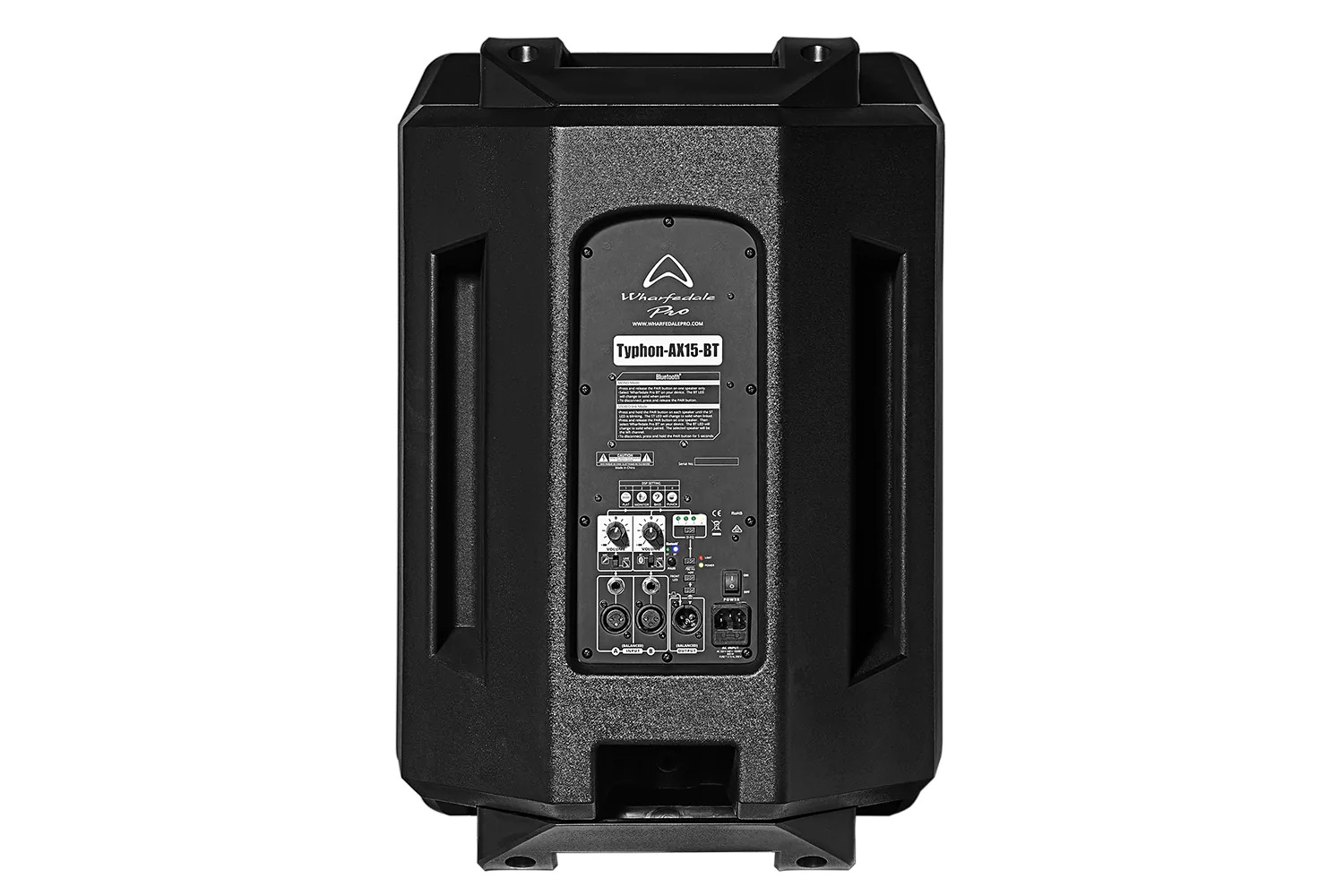

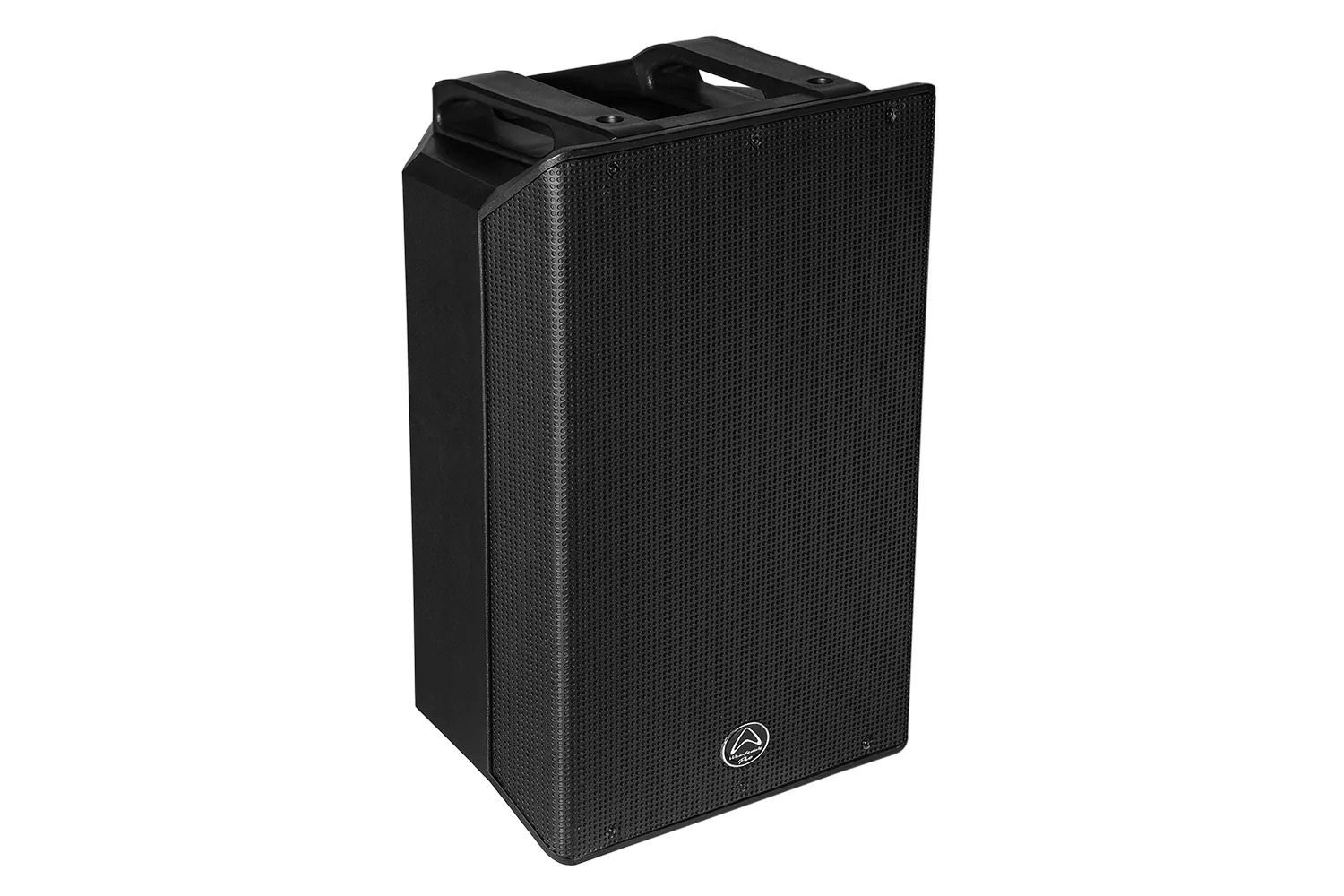

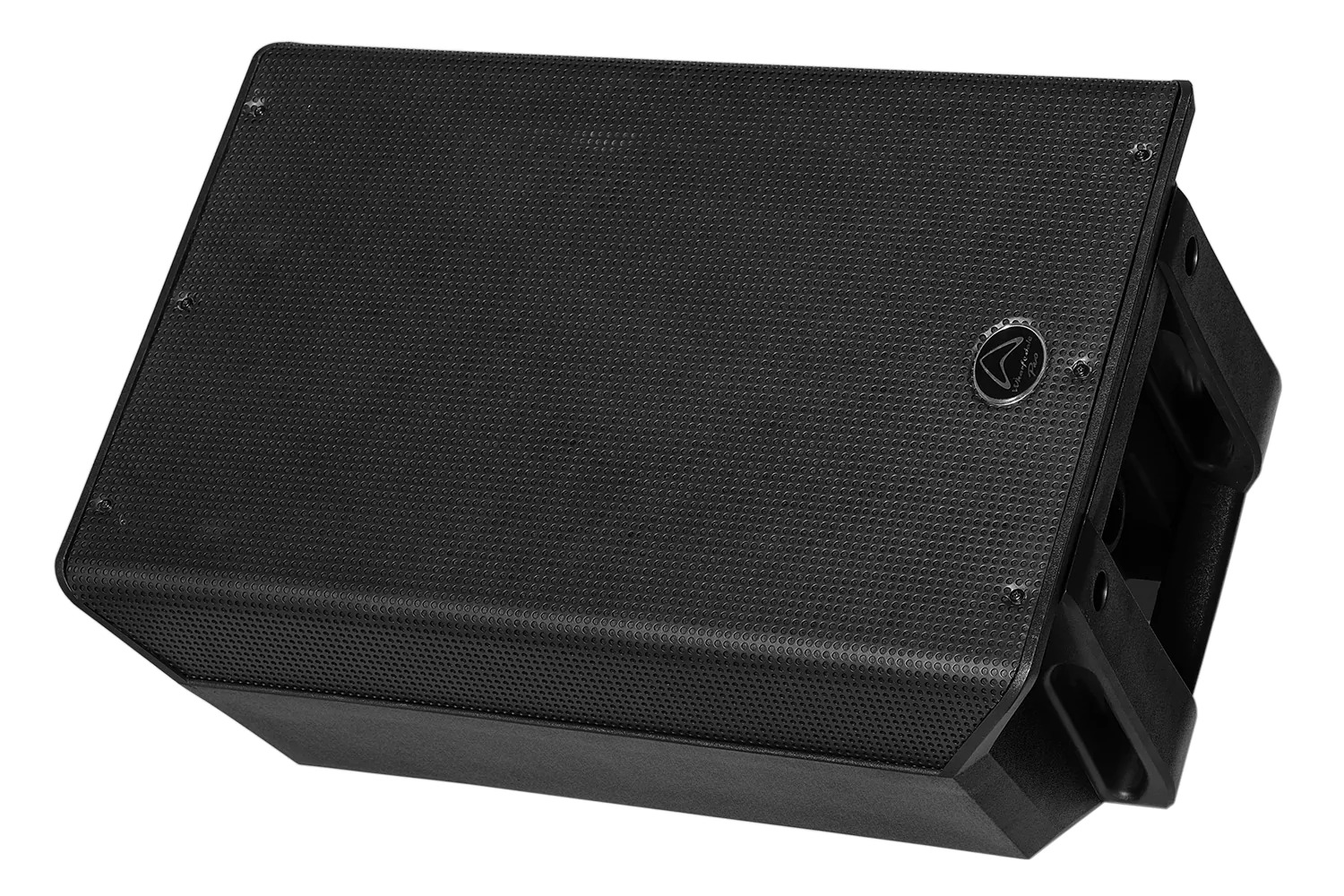

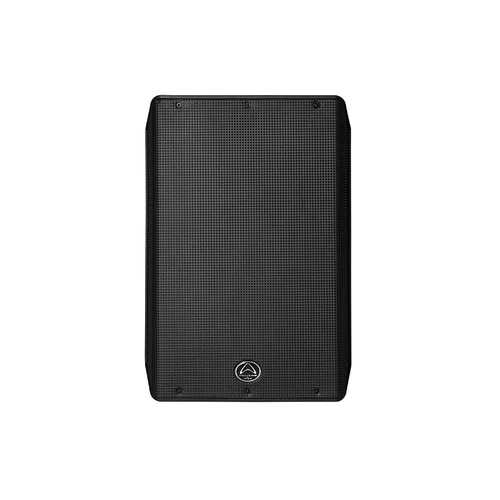

WHARFEDALE Pro TYPHON AX15 BT Active Speakers

Model Name

Typhon-AX15-BT

System Type

Active 15″ 2-way

Frequency Response (+/-3 dB)

45 Hz-20 KHz

Frequency Range (-10 dB)

40 Hz-20 KHz

Maximum SPL (peak @1 m)

130 dB

Sensitivity (@ 1 W / 1 m)

99 dB

Low Frequency Transducer

Size (mm / inches)

381 mm / 15″

Voice-Coil Size (mm / inches)

75 mm / 3.0″

Rated Impedance

4 Ω

High Frequency Transducer

HF Driver Type:

Compression Driver

Coil Size (mm / inches)

44 mm / 1.75″

Exit Size (mm / inches)

25 mm / 1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

Nominal Coverage (H x V)

Hybrid Symmetry Horn

100° x 80°

Amplifiers

2 x Class D

Power Rating:

1540 W Peak (1300 W LF +

240 W HF), 770 W Continuous

(650 W LF + 120 W HF)

DSP Controls—D-EQ

FLAT/MONITOR/BASS/PUNCH

Amplifier Protection

Power On Protection

Yes

Thermal Protection

Yes

Low Line Voltage Shut Down

Yes

Driver Protection

Yes

DC Protection

Yes

Short Protection

Yes

Clip Limiter

Yes

Limiter Indicator

Yes

Power Indicator

Yes

Inputs

Input A – type

Balanced/Bluetooth (aptX with link Stereo)

Input Sensitivity

775 mV(0 dBu)

Maximum Input Level

4 V

Input Connector

2 x XLR, 2 x 6.3 mm jack (Line/MIC)

Input Impedance

20 K ohms

Line Output

Line Output Connector

XLR

Loop Gain

0 dB

AC Power details

Power Supply

220~240 V AC/100~120 V AC 50/60 Hz

Rigging / Bracket / Mounting Options

9 x M8 threaded inserts

Pole-mount receptacle with lock screw

Optional WPB-2 wall-mount bracket

Handles

2 carry handles (on top and bottom side)

Enclosure

Enclosure Material and finish

Injection Moulded Polypropylene

Colour Options

Black paint

Grille Material & Finish

steel

Dimensions – Unpacked

Height

697.7 mm / 27.5″

Width Front

480 mm / 18.9″

Width Rear

186.2 mm / 7.3″

Depth

400 mm / 15.7″

Dimensions – Packed

Height

788 mm / 31.02″

Width Front

550 mm / 21.9″

Width Rear

550 mm / 21.9″

Depth

475 mm / 18.7″

Net Weight (kg / lbs)

27.3 kg / 60.06 lbs

Gross Weight (kg / lbs)

30.0 kg / 66 lbs
