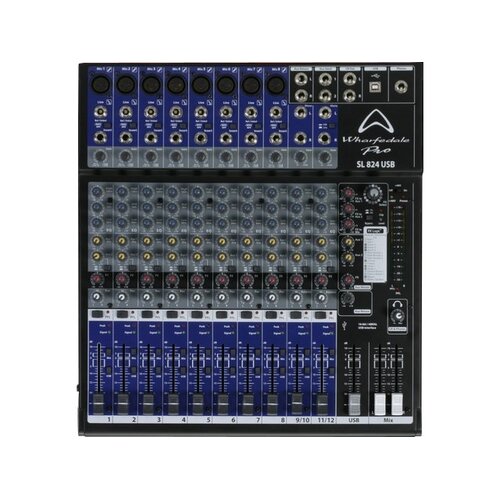

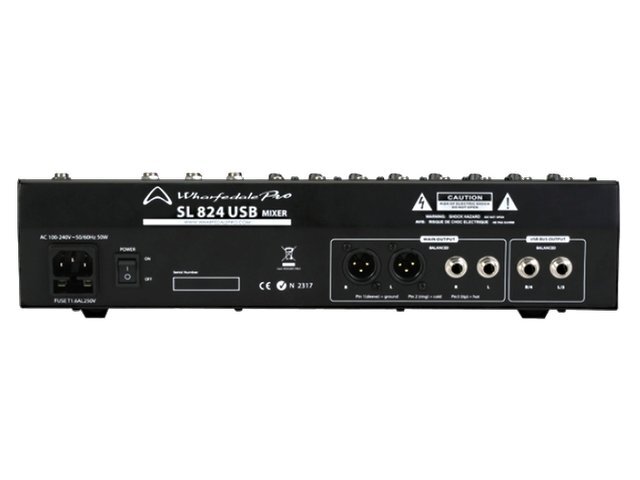

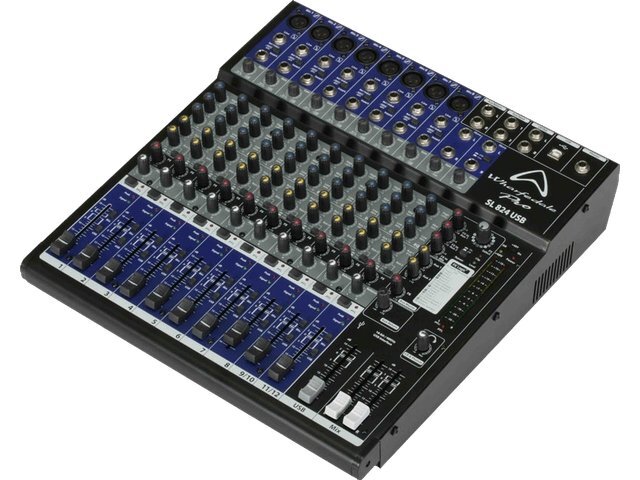

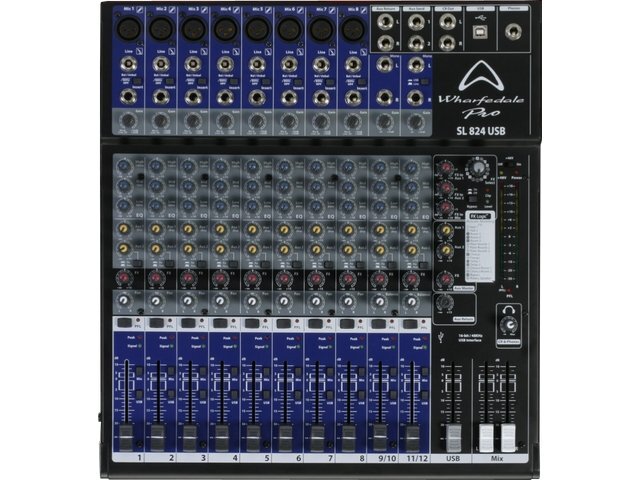

Wharfedale SL824USB studio/live mixing console

Wharfedale SL824USB 8 Channel Studio / Live USB Mixing Desk
The SL 824 mixer is a studio/live mixing console with built-in full duplex USB interfacing. It will cater for a wide range of mid-format mixing duties, including many features suited to both live sound and home studio applications.

These include a high quality class-compliant 2-input 2-output 16-bit/48kHz USB interface, with a flexible record bus and dedicated return channel great for live or home recording.
Further, a 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. A integrated FX processor with 16 presets gives you huge creative potential, supplemented by dedicated FX auxiliaries.


> Frequency response: 20Hz~20kHz ±2dB
> THD+N: <0.025% @ + 14dBu ±0.5dBu
> Level Meters: 12 Segment LED x2 (Output of +4dBu = 0dB)
> Dimensions / Weight: 80x400x369mm / 5.2Kg

Specifications

* Frequency response: 20Hz~20kHz ±2dB
* THD+N: <0.025% @ + 14dBu ±0.5dBu
* Maximum Input Level: Mic +4dBu ±1dBup; Channel Line +21dBu ±1dBu; Stereo Line * +21dBu ±1dBu; AUX Return In +21dBu ±1dBu
* MONO INPUT CHANNEL GAIN: 50dB Variable MIC (0~-50dB) Line (-20dB~ +30dB)
* Level Meters: 12 Segment LED x2 (Output of +4dBu = 0dB)
* Input Channel EQ: High (±10dB) ±1.5dB 12kHz Shelving; Mid (±10dB) ±1.5dB 1kHz Shelving; Low (±10dB) ±1.5dB 80Hz Shelving
* Maximum Balanced Output: Main XLR Balanced Out +26.5dBu ±1dBu
* Level (1%T.H.D. at 1KHz ): Main ?" Jack Balanced Out +26.5dBu ±1dBu
* Maximum Unbalanced: Main XLR Unbalanced Out +21dBu ±1dBu
* Output Level (1%T.H.D. at1KHz ): Main ?" Jack Unbalanced Out +21dBu ±1dBu
* Hum and Noise: 20Hz-20KHz: -127dBu ±5dBu Mic Pre Equivalent Input Noise * (150R): -85dBu ±5dBu Residual Noise
* Dimensions / Weight: 80x400x369mm / 5.2Kg
* Weight: 5.2kg

Shipping Volume: .047cbm
Shipping Weight: 7kg

Warranty: 12 Months
