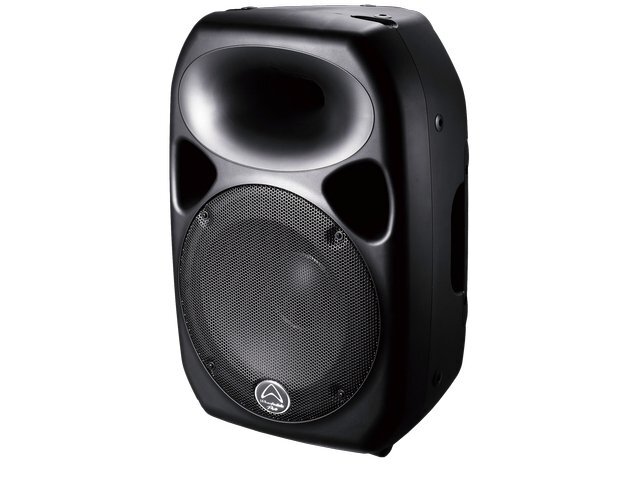

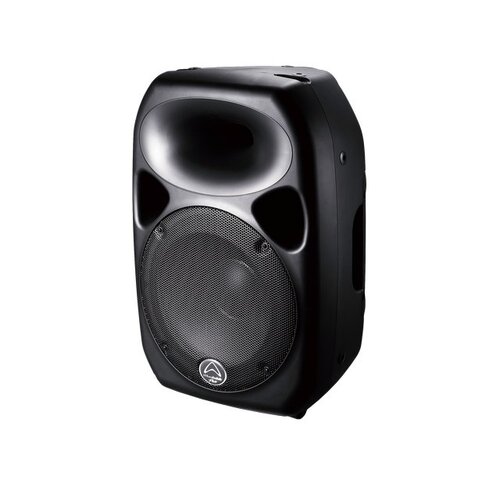

Wharfedale Titan8AXMk2 Active Speaker

THE LEGENDS

• IP54 Certified
• On stage, DJ, bands and performance
• Bi-amplified
• Wharfedale Pro drivers
• Portable and powerful
• DSP models – AX12 / AX15
• M8 rigging points
• Optional tour bags

TITAN AX8 MKII

• 8″ Bi-amplified active loudspeaker
• 1.0″ HF compression driver
• Treble & Bass controls + / – 12 dB
• 180 w Continuous
• 360 w Peak

LETS LOOK INSIDE

Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-AX12 and Titan-AX15 features a 1.75″ voice coil and is unique at this price point.

All Titan Active models are bi-amplified.  The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.

TITAN-AX MODELS WITH IRIS-X

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

WE ARE NOT FANS...OF FANS

ssssssh !     The two amplifiers inside all Titan Active models are extremely efficient.

So efficient that they can use convection cooling. This means that there are no fans!

Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Titan actives have no fans!         Ssssssh! – Silent and reliable operation.

IP54 CERTIFIED

IP54 certification assures that the product has

• Limited protection against dust ingress.
• Protection against splash water from any direction.

The picture shows some of the extreme testing that goes into the Titan series IP54 certification.

All of this means that you can have full confidence installing a TITAN in extreme conditions.

WHAT GOES ON TOUR...

Protect a Titan in an optional padded tourbag.

Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.

The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.

EASY INSTALL

All Titan loudspeakers are versatile.  For on stage, or for an installation, there are fixtures and fittings to suit.

WPB-2, WPB-3, WPB-T8 are suitable for TITAN AX8 MKII.

PERFECT PAIRINGS

A perfect partner for a Titan active is the 15″, 700 watts continuous, T-Sub-AX15B.

Used with a Tourus, a Titan or our flagship Typhon models, T-Sub-AX15B completes the system – bringing new levels of bass to the setup.

Model Name	Titan 8A MKII
System Type	Active 8” 2-way Bi-Amplified
Frequency Response (+/-3 dB)	70 Hz-20 KHz
Frequency Range (-10 dB)	65 Hz-20 KHz
Calculated Maximum SPL @1 m	124 dB
LF Transducer Size (mm / inches)	205 mm / 8”
Coil Size (mm / inches)	38.86 mm / 1.53”
HF Transducer Type	Compression Driver
Coil Size (mm / inches)	25 mm / 1”
Exit Size (mm / inches)	30 mm / 1.2”
Diaphragm Material	Mylar
Nominal Coverage (H x V)	Elliptical waveguide 90° x 60°
Amplifiers
Low-Frequency Power Amplifier   RMS/Peak Watts	150/300 W (Class D)
High-Frequency Power Amplifier RMS/Peak Watts	30/60 W (Class D)
Controls—EQ	High (±10 dB)10 KHz Shelving Low (±10 dB) 100 Hz Shelving
DSP	None
Hi Pass switch
Amplifier Protection / Thermal protection	Yes
Low Line Voltage Shut Down	60% Nominal line voltage
Driver Protection	Independent LF and HF limiters
DC Protection / Short Protection	Yes
Clip Limiter	Turns on ~150 W output
Limiter Indicator / Power Indicator	Red LED / Green LED

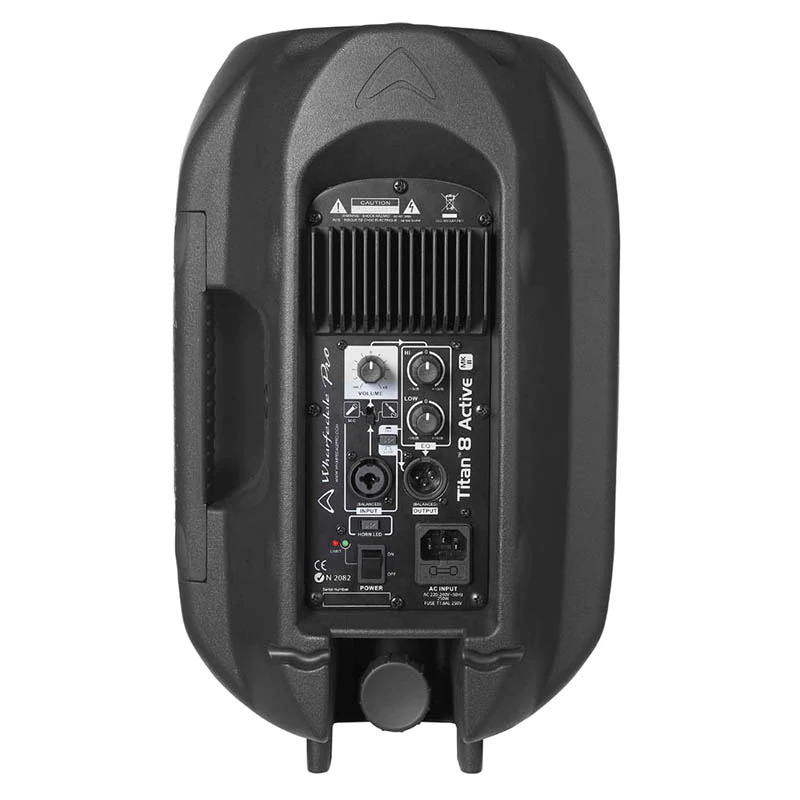

Connectors
Input – type	Switchable balanced mic/line level
Input Connector	XLR 1/4”Combo Jack
Line Output Connector	Switchable LOOP/MIX Balanced Female XLR
AC Power Supply	SMPS
AC Power Options	AC100-120 V~/220-240 V~,50/60 Hz
Hardware
Rigging / Bracket / Mounting Options	8 M6 threaded inserts inc 4 M6 threaded inserts on base in OmniMount 30.0-type footprint
	35 mm with lock screw
	1 carry handle on side
	Optional wall-mount bracket
LED Horn lighting (On/Off switch)	Yes
Enclosure Material and finish	Injection Moulded Polypropylene
Colour Options	Grey / White / Black
Grille Material & Finish	1.2 mm steel
Dimensions – Unpacked  – Height	396 mm / 15.59”
Width Front	266 mm / 10.47”
Depth	221 mm / 8.7”
Dimensions – packed  – Height	463 mm / 18.2”
Width Front	325 mm / 12.8”
Depth	282 mm / 11.1”
Net Weight (kg / lbs)	6.25 kg / 13.75 lbs
Gross Weight (kg / lbs)	8.75 kg / 17.94 lbs
